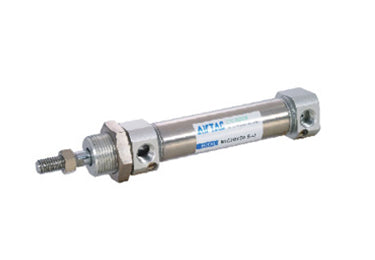

MIC: Round Body Air Cylinder, Double Acting with Cushion - MIC25X25SCAG

Round body pneumatic cylinder, double acting with cushion, Stainless Steel, 25 mm bore size, 25mm stroke, with magnet, Perpendicular 90 degrees back cover, G thread typeAirtac MI cylinders are a functional replacement for the SMC C85 series cylinders.

Product Features:

1.In accordance with ISO6432 standard (8mm - 25mm bore size)
2.Front and back cover owns fixed bumper pad which can reduce the impact of direction-change of the cylinder.
3.There are several modes of back cover, which makes the installation of cylinder more convenient.
4.Front and back cover and stainless steel block adopt riveted rolling packed structure to form a reliable connection.
5.Piston rod and cylinder body with the material of stainless steel make the cylinder adapt general working environment with corrosivity.
6.There are cylinders and accessories with several specifications for installation for your choice.
