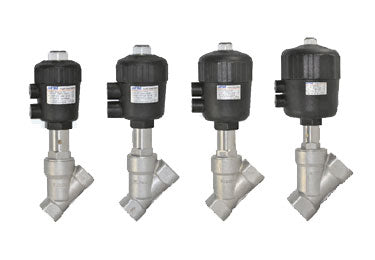

Pneumatic Mechanical Valve Airtac 2JW200-20: Angle Seat Valve - 2JW20020Q40T
Pneumatic Mechanical Valve Airtac 2JW200-20: Angle Seat Valve - 2JW20020Q40T
Regular price
$241.88 USD
Regular price
$0.00 USD
Sale price
$241.88 USD
Taxes included.
Quantity
Couldn't load pickup availability
2 way angle seat valve, SUS304 stainless steel body material, No Water-hammer acting type(Normally Closed), 20mm orifice, 3/4" NPT port, 40mm actuatorProduct Features
1.Air piloted and can be used non electric, flammable and explosive environment. The start-up pressure is low; and the high pressure could be controlled by the low pressure.
2.The accessories and slide bar are made of stainless steel, which are of excellent rustproof quality. The seals are made of Teflon and can be applied extensively in areas with high temperature and strong corrosive liquids.
3.The structure of valve angles at 45 degrees with streamline inner chamber design. The reduced tunnel resistance allows liquid to run more smoothly thus achieving high flow. Filtration core is added at inlet port to prevent the entrance of impurities and extend life span of the seals.
4.Actuator is fitted with visual position indicator. This allows for visual checking and adjustment of flowrate.
5.Control point is made of metal insert. Mounting plate can be used for NAMUR value.
6.The actuator part can be rotated at 360 degrees and is easily installed.
The Airtac 2J Series Solenoid Valve
The Airtac 2J Series Solenoid Valve is a two position, five port (5/2 way) pilot operated pneumatic control valve designed for precise and efficient air flow switching in industrial automation systems.
Compact yet powerful, the 2J series delivers high flow capacity, fast response, and stable operation, making it an ideal choice for controlling double acting cylinders, packaging machinery, textile equipment, and other pneumatic automation applications.
Key Features
• Pilot Operated Design – Ensures stable switching and low energy consumption.
• 5/2 Way Configuration – Perfect for reversing air flow to double acting cylinders.
• High Flow Performance – Supports large pneumatic actuators and fast cycle speeds.
• Compact & Lightweight – Easy integration into machinery and space-limited systems.
• Versatile Installation – Suitable for both internal and external pilot operation types.
• Durable & Reliable – Corrosion resistant body and long-life seals for extended service.
Technical Specifications
• Series: Airtac 2J Series
• Type: 5/2 way Two Position Five Port Pneumatic Solenoid Valve
• Working Medium: Compressed air (filtered)
• Working Pressure: 0.15–0.8 MPa
• Voltage Options: DC12V / DC24V / AC110V / AC220V
• Port Size: 1/8", 1/4", 3/8" (optional)
Typical Applications
- Double acting cylinder control in pneumatic systems.
- Packaging machinery – fast and precise air switching.
- Textile machinery – stable control for continuous operation.
- Assembly line automation – energy-efficient air control.
Advantages
- Fast switching for high-speed production lines.
- Supports large air volumes with minimal pressure drop.
- Low power consumption electromagnetic coil.
- Flexible mounting positions to fit various equipment designs.
1.Air piloted and can be used non electric, flammable and explosive environment. The start-up pressure is low; and the high pressure could be controlled by the low pressure.
2.The accessories and slide bar are made of stainless steel, which are of excellent rustproof quality. The seals are made of Teflon and can be applied extensively in areas with high temperature and strong corrosive liquids.
3.The structure of valve angles at 45 degrees with streamline inner chamber design. The reduced tunnel resistance allows liquid to run more smoothly thus achieving high flow. Filtration core is added at inlet port to prevent the entrance of impurities and extend life span of the seals.
4.Actuator is fitted with visual position indicator. This allows for visual checking and adjustment of flowrate.
5.Control point is made of metal insert. Mounting plate can be used for NAMUR value.
6.The actuator part can be rotated at 360 degrees and is easily installed.
The Airtac 2J Series Solenoid Valve
The Airtac 2J Series Solenoid Valve is a two position, five port (5/2 way) pilot operated pneumatic control valve designed for precise and efficient air flow switching in industrial automation systems.
Compact yet powerful, the 2J series delivers high flow capacity, fast response, and stable operation, making it an ideal choice for controlling double acting cylinders, packaging machinery, textile equipment, and other pneumatic automation applications.
Key Features
• Pilot Operated Design – Ensures stable switching and low energy consumption.
• 5/2 Way Configuration – Perfect for reversing air flow to double acting cylinders.
• High Flow Performance – Supports large pneumatic actuators and fast cycle speeds.
• Compact & Lightweight – Easy integration into machinery and space-limited systems.
• Versatile Installation – Suitable for both internal and external pilot operation types.
• Durable & Reliable – Corrosion resistant body and long-life seals for extended service.
Technical Specifications
• Series: Airtac 2J Series
• Type: 5/2 way Two Position Five Port Pneumatic Solenoid Valve
• Working Medium: Compressed air (filtered)
• Working Pressure: 0.15–0.8 MPa
• Voltage Options: DC12V / DC24V / AC110V / AC220V
• Port Size: 1/8", 1/4", 3/8" (optional)
Typical Applications
- Double acting cylinder control in pneumatic systems.
- Packaging machinery – fast and precise air switching.
- Textile machinery – stable control for continuous operation.
- Assembly line automation – energy-efficient air control.
Advantages
- Fast switching for high-speed production lines.
- Supports large air volumes with minimal pressure drop.
- Low power consumption electromagnetic coil.
- Flexible mounting positions to fit various equipment designs.
