Custom AirTAC SE80X70S Double-Acting Pneumatic Cylinder – 80 mm Bore × 70 mm Stroke

Product Description

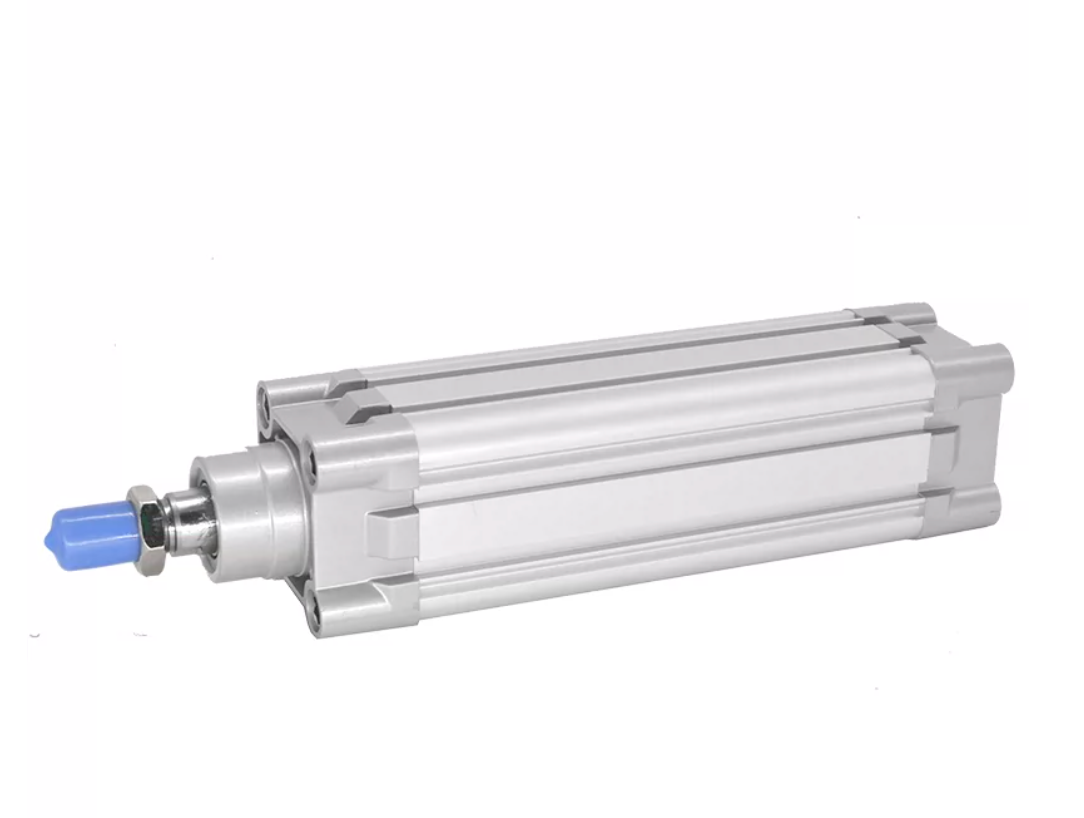

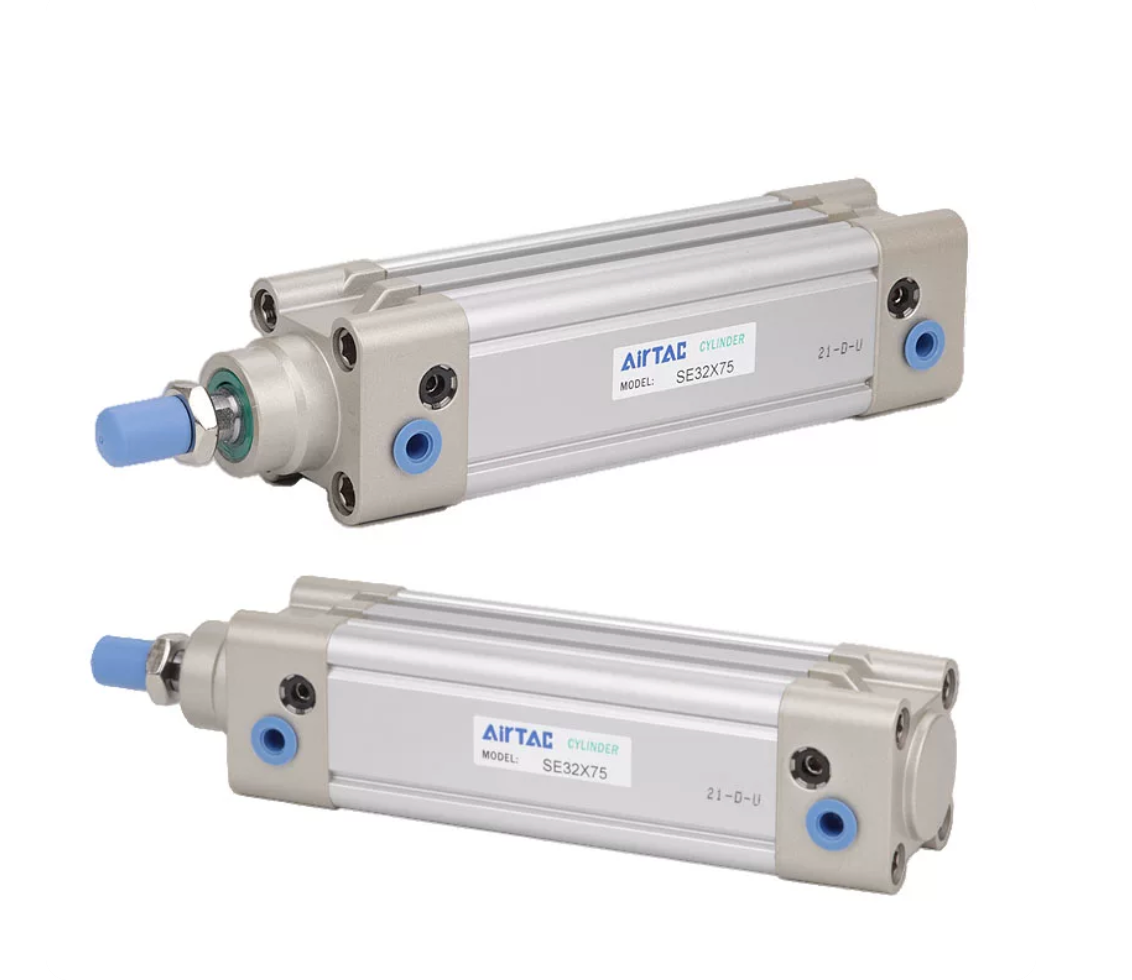

The AirTAC SE80X70S is a customized double-acting pneumatic cylinder manufactured according to the customer’s confirmed application requirements.

This configuration features an 80 mm bore, 70 mm stroke, built-in magnet, TPU seals, PT3/8 air ports and a hard chrome-plated S45C medium-carbon-steel piston rod. Adjustable pneumatic cushioning provides smooth and stable operation while reducing impact at the end of each stroke.

Designed in accordance with ISO 15552 and VDMA 24562 standards, the SE80X70S is suitable for industrial automation equipment, production machinery, material-handling systems and other pneumatic applications.

Customized Configuration

• Model: SE80X70S

• Action Type: Double-acting

• Bore: 80 mm

• Stroke: 70 mm

• Piston Rod: S45C medium-carbon steel with hard chrome plating

• Magnet: Included

• Mounting Type: Basic type; mounting accessories not included

• Seal Material: TPU

• Port Thread: PT

• Port Size: PT3/8

• Cushion Type: Adjustable air cushion

• Working Medium: Filtered compressed air, 40 μm or finer

Technical Specifications

• Operating Pressure: 0.15–1.0 MPa / 22–145 psi / 1.5–10 bar

• Proof Pressure: 1.5 MPa / 215 psi / 15 bar

• Operating Temperature: −20°C to 70°C

• Operating Speed: 30–800 mm/s

• Stroke Tolerance: +1.0 / 0 mm

• Compatible Sensors: DMSE and CMSE

Product Features

1. Customized according to the customer-confirmed specifications.

2. Double-acting structure provides controlled extension and retraction.

3. Dual Y-type piston seals offer low starting pressure, wear compensation and long service life.

4. The corrosion-resistant aluminum-alloy barrel has a compact, tie-rod-free design.

5. Built-in magnet supports compatible cylinder position sensors.

6. Adjustable cushioning reduces vibration and end-of-stroke impact.

7. Optional mounting brackets and piston-rod joints are available for different installation requirements.

Custom-Order Notice

This cylinder is produced or configured specifically according to the customer’s requirements. Please confirm the model, bore, stroke, piston-rod material, magnet, seal material, port thread, mounting method and required accessories before placing the order.

Production time, pricing, availability and return conditions for customized products may differ from standard stock products. Please contact us before ordering if you require a G thread, stainless-steel components, special seals, mounting brackets, sensors or rod-end accessories.

Download the AirTAC SE Series product catalogue
