AirTAC TR6X50S Dual-Rod Pneumatic Cylinder, 6 mm Bore x 50 mm Stroke
AirTAC TR6X50S Dual-Rod Pneumatic Cylinder, 6 mm Bore x 50 mm Stroke
Couldn't load pickup availability

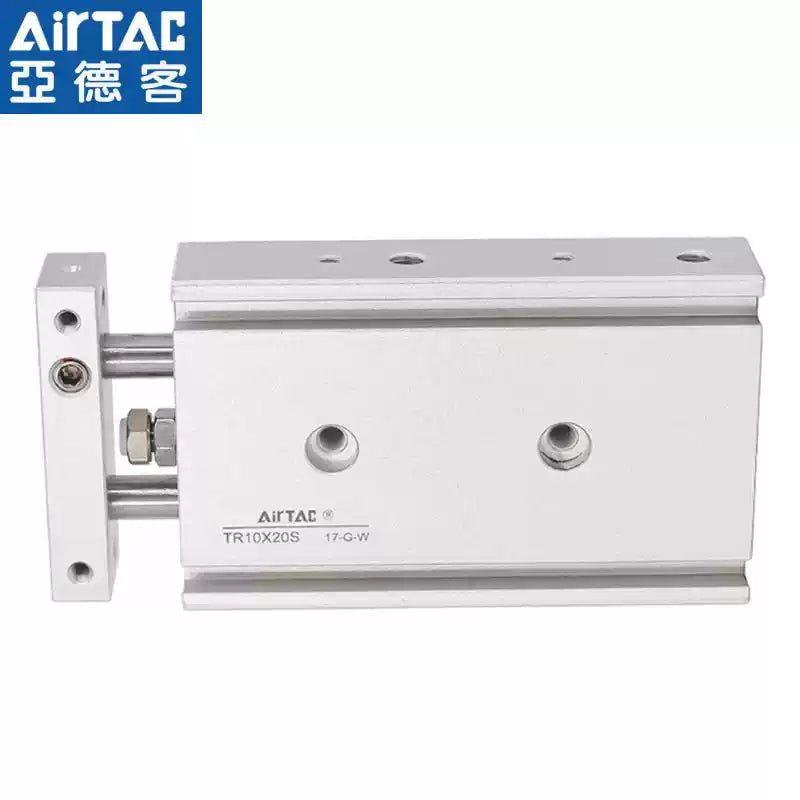

The AirTAC TR6×50S is a double-acting dual-rod pneumatic cylinder with a 6 mm bore and 50 mm stroke. The magnetic piston can be used with a compatible position sensor.
Product Features
- Two rods guide the moving plate and help resist rotation. Check the catalog limits for side load and deflection.
- Mounting holes on multiple faces of the moving plate provide options for fastening a fixture.
- The front bumper cushions impact and gives a small range of stroke adjustment.
- A magnetic piston is standard for use with a compatible position sensor.
- Extended sliding supports guide the rods. The cylinder body provides two sets of air connections for routing the tubing.
Technical Specifications
| Order code | TR6×50S |
|---|---|
| Action | Double acting |
| Bore | 6 mm |
| Stroke | 50 mm |
| Rod configuration | Two parallel rods |
| Magnetic piston | Yes (S) |
| Stroke adjustment | −5 to 0 mm |
| Non-rotation accuracy | ±0.2° with the cylinder fully retracted |
| Air ports | M5 × 0.8 |
| Working medium | Compressed air filtered through a 40 µm element |
| Operating pressure | 0.2–1.0 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | −20 to 70 °C |
| Operating speed | 30–500 mm/s |
| Cushioning | Fixed end bumpers |
| Catalog stroke tolerance | +1.0 / 0 mm |
Before You Order
Use the correct TN or TR drawing to compare the body mounting pattern and moving-plate dimensions with your fixture.
Check allowable side load, rod-end deflection and sensor mounting position for the selected bore and stroke.
