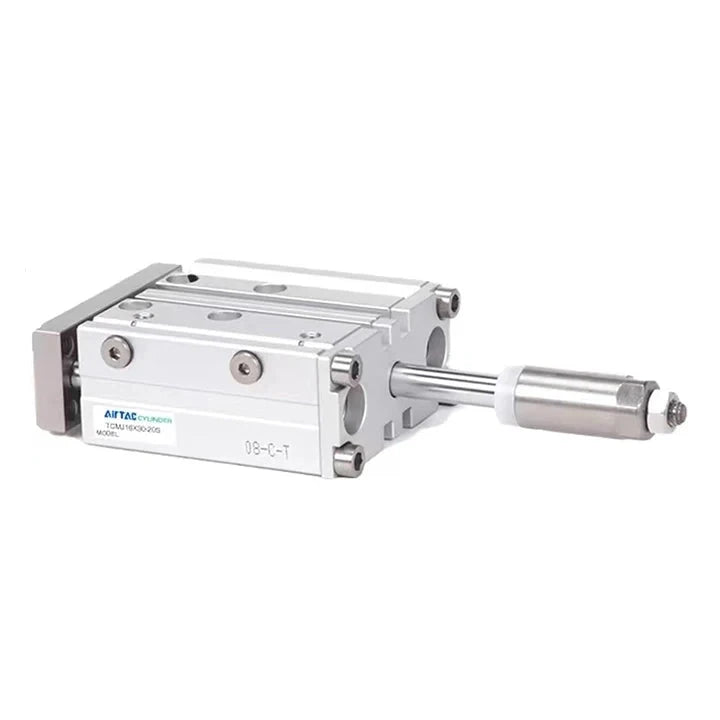

The AirTAC TCLJ12×30-20S is a double-acting adjustable-stroke guided pneumatic cylinder with a 12 mm bore and 30 mm stroke. The magnetic piston can be used with a compatible position sensor.
Product Features
- The drive cylinder and two guide rods share one body, saving the space needed for an external guide assembly.
- Locating holes on the body and plate help position the cylinder on a fixture.
- Four sensor grooves let you choose a suitable sensor position for the magnetic piston.
- Linear ball bearings guide the rods for low-friction travel.
Technical Specifications
| Order code | TCLJ12×30-20S |
|---|---|
| Action | Double acting |
| Bore | 12 mm |
| Stroke | 30 mm |
| Catalog stroke adjustment code | 20 mm |
| Magnetic piston | Yes (S) |
| Guide bearing | Linear ball bearings |
| Non-rotation accuracy | ±0.08° with the cylinder fully retracted |
| Body mounting | Top, rear and bottom screw mounting or bottom T-slot |
| Air ports | M5 × 0.8 |
| Working medium | Compressed air filtered through a 40 µm element |
| Operating pressure | 0.15–1.0 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | −20 to 70 °C |
| Operating speed | 30–500 mm/s |
| Cushioning | Fixed end bumpers |
| Catalog stroke tolerance | +1.0 / 0 mm |
Before You Order
Compare the guide-bearing type and mounting dimensions with the installed unit. Check the allowable load and moment charts for the selected stroke and how the load is applied.
Choose the port location and sensor position before mounting the body. Use the drawing to check fastener depth and clearance for the fittings.
