AirTAC SR20006J3G Air Pressure Regulator
AirTAC SR20006J3G Air Pressure Regulator
Couldn't load pickup availability

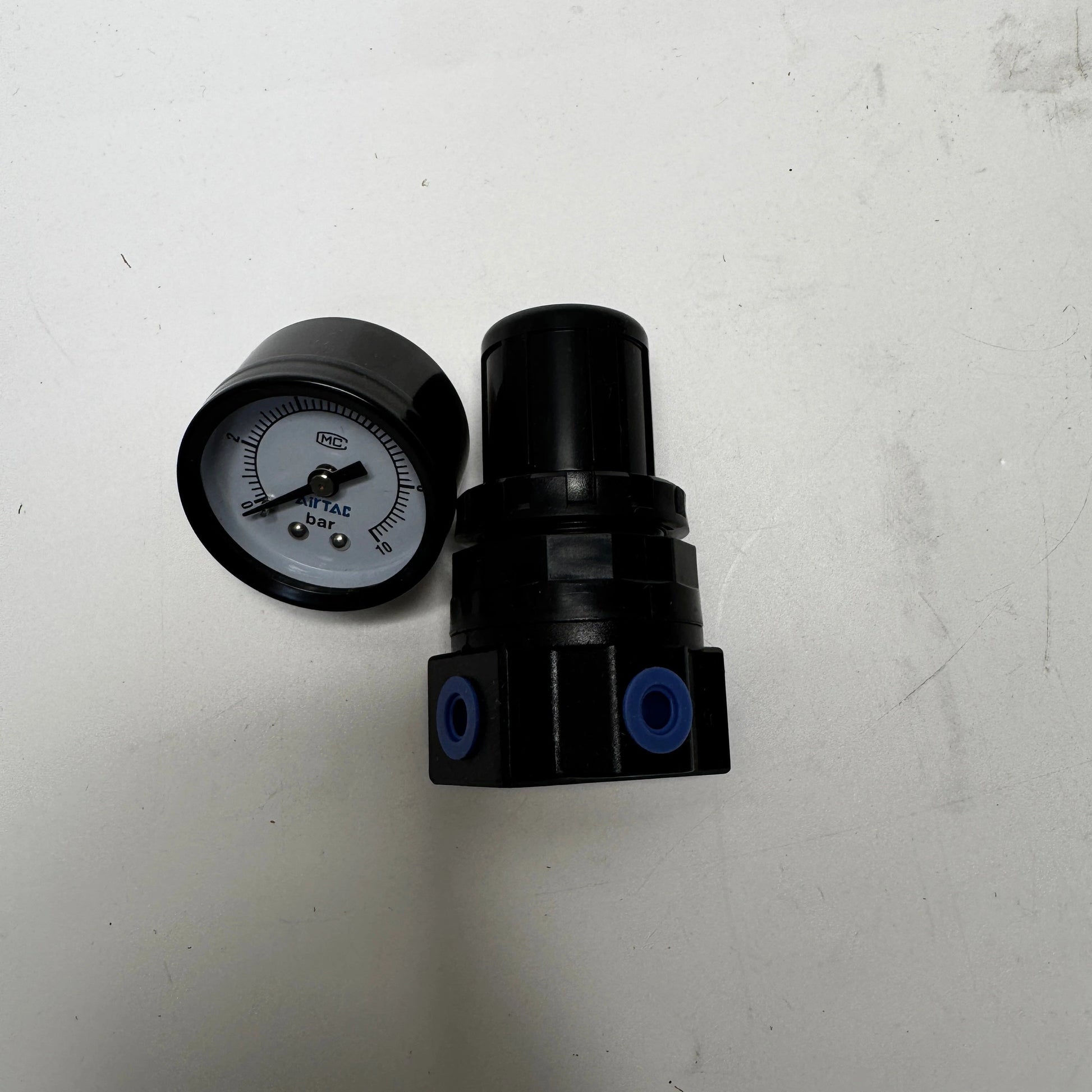

The AirTAC SR20006J3G is an inline air pressure regulator for a compressed-air line with G 1/8 connections. Check the listed configuration and the catalog dimensions when selecting a replacement.
Product Features
- The compact regulator can be installed as an inline unit.
- The listed adjustment range lets you select the appropriate model for the required downstream pressure.
- AirTAC provides a mounting drawing and either an optional bracket arrangement or the body installation detail.
Technical Specifications
| Order code | SR20006J3G |
|---|---|
| Working medium | Compressed air |
| Air ports | G 1/8 |
| Maximum inlet pressure | 1.0 MPa |
| Proof pressure | 1.5 MPa |
| Outlet adjustment | 0.05–0.9 MPa |
| Regulator version | Standard |
| Gauge | Included (bar) |
| Mounting bracket | Not included |
| Ambient temperature | −20 to 70 °C |
Before You Order
Use the inlet and outlet markings to orient the unit. Check the drawing for the mounting pattern and leave access for adjustment or service.
Match the port thread to your existing fittings and confirm the operating range against your air supply and downstream requirements.
Set the outlet pressure with the downstream equipment connected under its normal operating conditions. Check the gauge range and compare the catalog flow curve with the expected demand.
