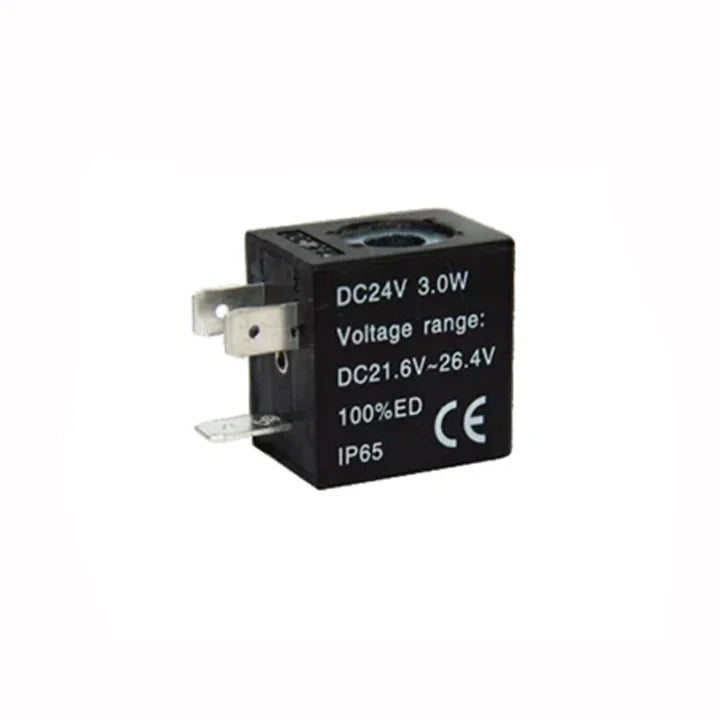

For 4V110, 4V120,4V130,

Series (8.0mm Orifice Solenoid Valves):

• Available in terminal and washer coil types.
• Multiple voltage options:
  • (A: AC220V)
  • (B: DC24V)
  • (C: AC110V)
  • (E: DC24V)
  • (F: DC12V)
• 080 Series with an 8mm orifice.

For 4V210, 4V220, 4V230.

4V310,4V320,4V330.

4V410,4V420,4V430.

Series (9.0mm Orifice Solenoid Valves):

• Available in terminal and washer coil types.
• Multiple voltage options:
  • (A: AC220V)
  • (B: DC24V)
  • (C: AC110V)
  • (E: DC24V)
  • (F: DC12V)
• 092 Series with a 9mm orifice.

Wiring Precautions:

• DC coils have polarity indicators on the terminals.
• Wiring instructions:
  • “1” should be connected to the positive terminal.
  • “2” should be connected to the negative terminal.
• If connected incorrectly, the indicator light will not turn on, but the valve will still function properly.
