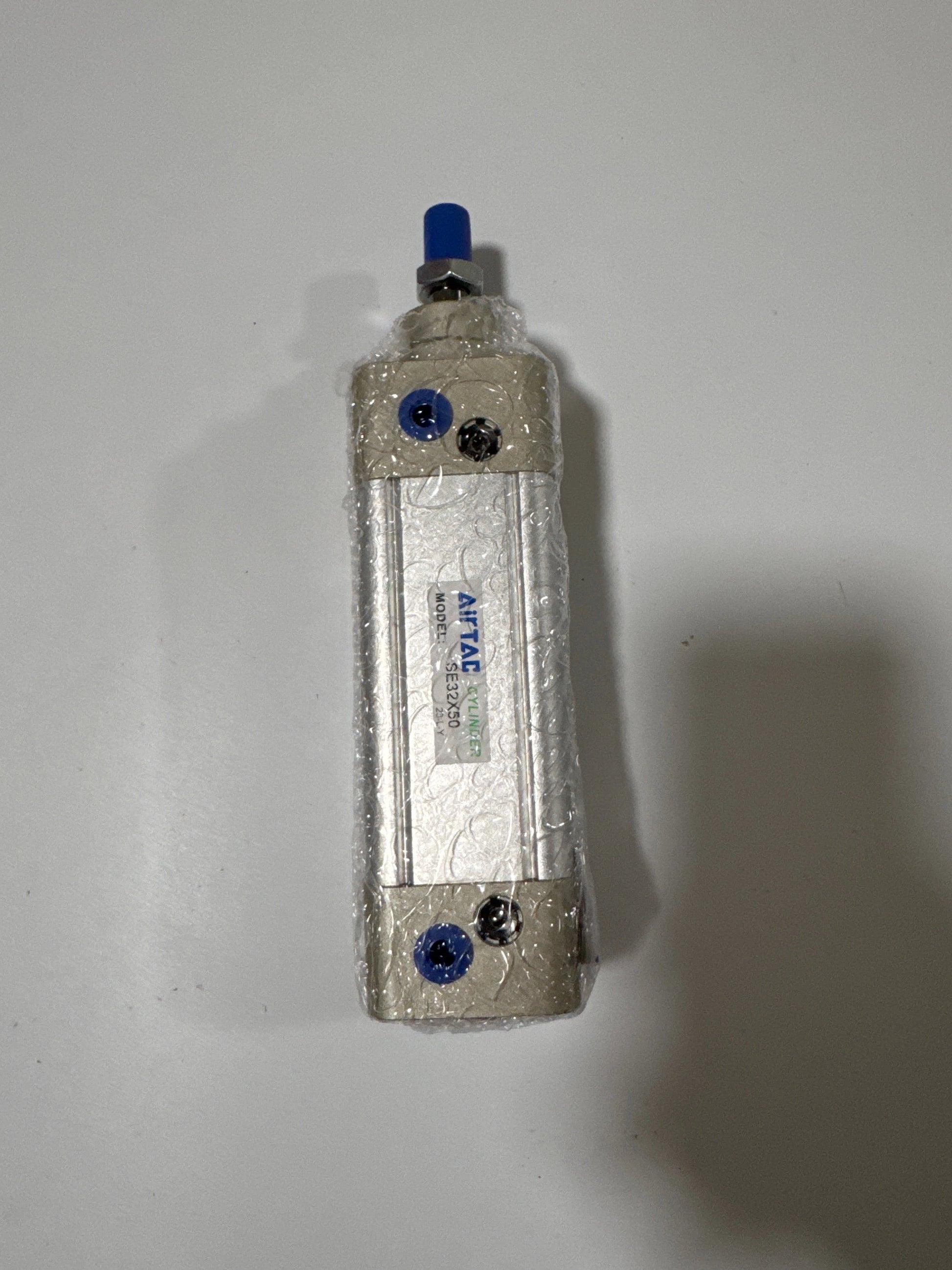

AirTAC SE32X50 Double-Acting Standard Pneumatic Cylinder, 32 mm Bore x 50 mm Stroke
AirTAC SE32X50 Double-Acting Standard Pneumatic Cylinder, 32 mm Bore x 50 mm Stroke
Couldn't load pickup availability
The AirTAC SE32×50 is a double-acting ISO 15552 pneumatic cylinder with a 32 mm bore and 50 mm stroke.
Product Features
- The square aluminum profile forms a compact cylinder body without external tie rods.
- The bidirectional piston seal has a lubricant-retaining profile.
- Adjustable end cushioning lets you tune deceleration to the load during commissioning.
Technical Specifications
| Order code | SE32×50 |
|---|---|
| Action | Double acting |
| Bore | 32 mm |
| Stroke | 50 mm |
| Magnetic piston | No |
| Catalog seal option | Standard TPU |
| Piston rod material | Medium-carbon steel |
| Mounting configuration | Basic cylinder mounting |
| Air ports | PT 1/8 |
| Working medium | Compressed air filtered through a 40 µm element |
| Operating pressure | 0.15–1.0 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | −20 to 70 °C |
| Operating speed | 30–800 mm/s |
| Cushioning | Adjustable air cushioning, 27 mm cushion travel |
| Catalog stroke tolerance | +1.0 / 0 mm |
Before You Order
Check the outline drawing for the bore, mounting and piston-rod dimensions. Match the existing fittings to the stated port thread.
AirTAC lists separate mounting and rod-end accessories. Match these to the exact cylinder configuration and leave access to the cushion adjusters.
