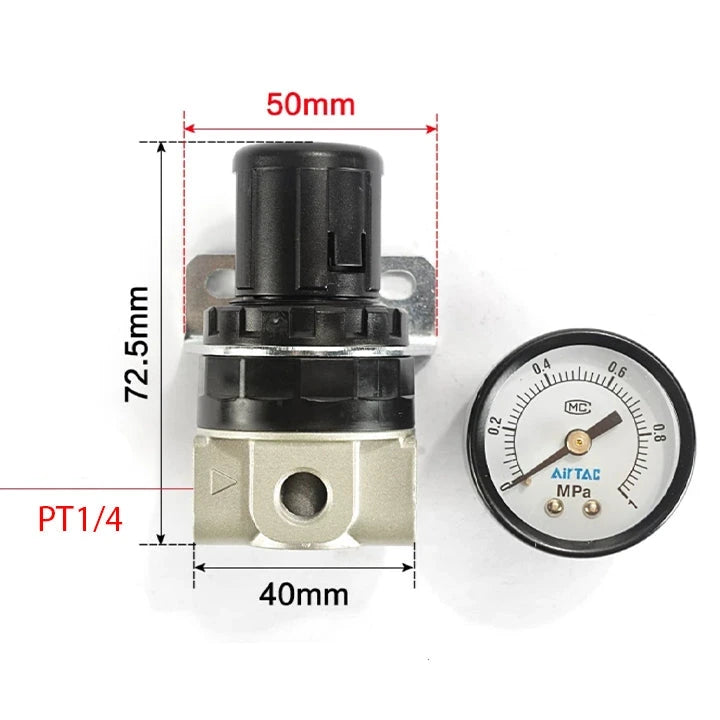

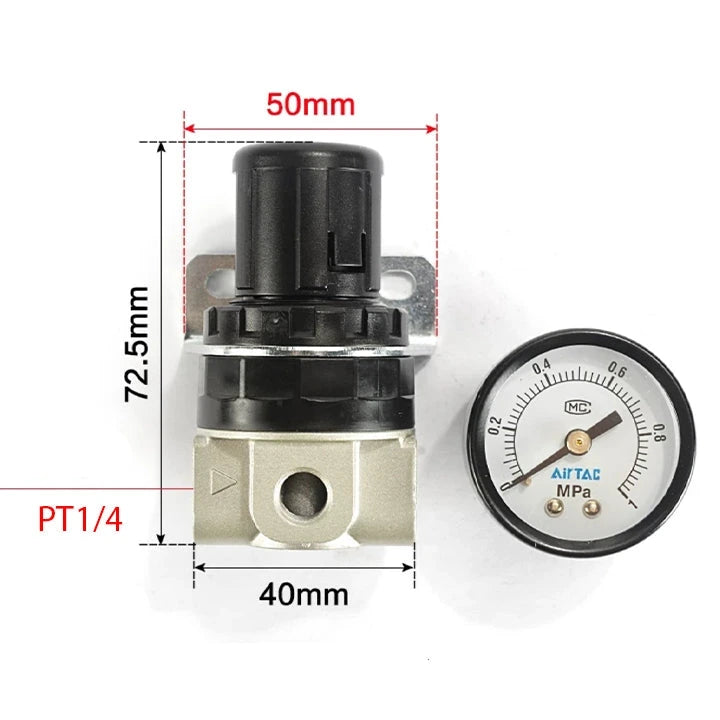

Airtac SDR200-08: Air Pressure Regulator - SDR20008J2T

Series: 200 series Nozzle caliber: 1/4" Type: Standard Bracket: without bracket Pressure gauge: schedule Scale unit: psi Tooth type: NPT tooth

Specifications

1. Model: SDR20008J2T

2. Working medium: air, pressure regulating range: 0.05~0.9MPa(7 ~ 130psi), maximum operating pressure: 1.0MPa(145psi)

3. Guaranteed pressure: 1.5MPa(215psi), operating temperature range:-20~70 ℃, nozzle diameter: PT1/4

4. Take over the tooth type G teeth, NPT teeth optional

Internal structure: 1. Body: aluminum alloy/2. Pressure regulating plug head: NBR/3.O-ring: NBR/4. Alien O order: NBR/5. Retaining ring cap: POM/6. Marking ring: POM/7. Main pressure regulator: POM/8. Main adjusting pressure shaft: fast cutting steel/9. Main pressure regulator: POM/10. Main pressure regulating hexagonal cap: fast cutting steel/11. Spring: SWC/12. Piston: POM/13. Pressure regulating valve seat: POM/14. Spring: SUS304

pressure regulating valve diaphragm :SDR200 Diaphragm

Click to download Airtac product catalog

Product Features

1. The back pressure type structure is compact, the installation is economical and time-saving.

2. A wide range of pressure regulation, in addition to the standard type and low-pressure type optional, stable output pressure, suitable for the output pressure is not high, but the performance and cost-effective requirements of the occasion.

3. monomer installation, easy to install.
