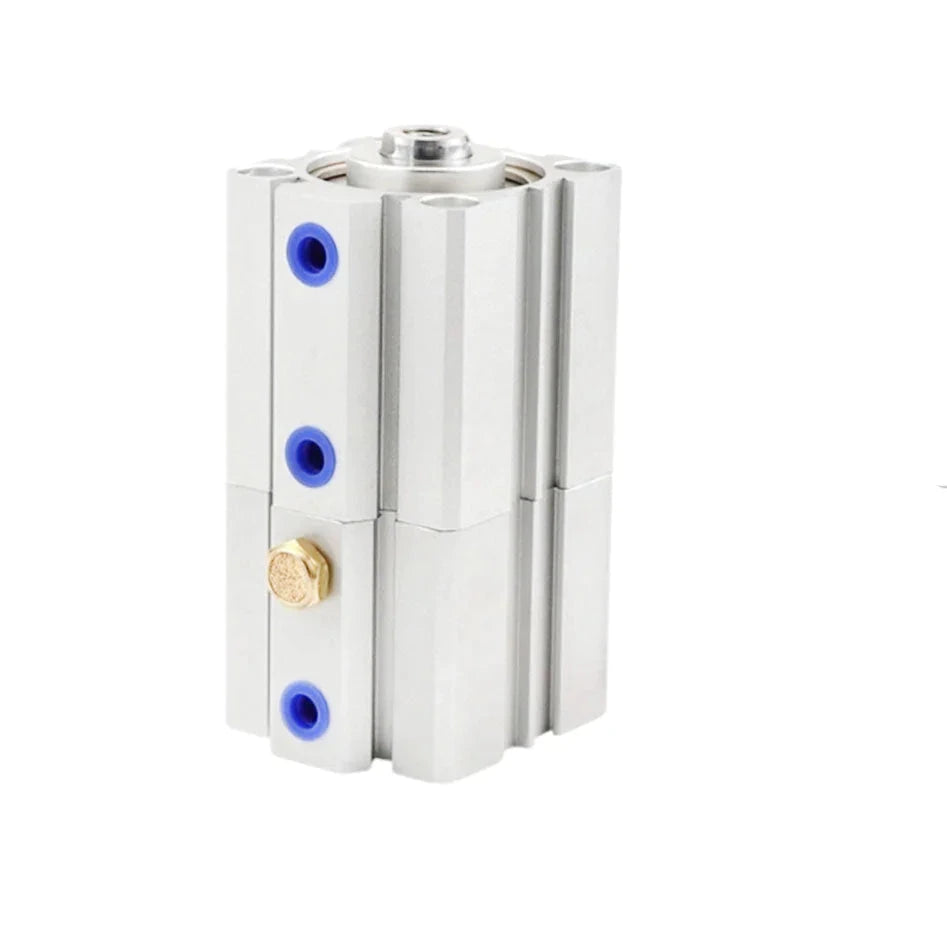

AirTAC SDAT40X10X5 Multi-Position Compact Pneumatic Cylinder, 40 mm Bore x 10 mm Stroke
AirTAC SDAT40X10X5 Multi-Position Compact Pneumatic Cylinder, 40 mm Bore x 10 mm Stroke
Couldn't load pickup availability
The AirTAC SDAT40×10×5 is a double-acting multi-position compact pneumatic cylinder with a 40 mm bore and 10 mm and 5 mm strokes.
Product Features
- The short cylinder body helps fit an actuator into a shallow fixture or machine assembly.
- Riveted body-to-cover and piston-to-rod joints keep the assembly compact.
- The cylinder bore has a hard-anodized running surface and the bidirectional piston seal retains lubricant.
- The body has sensor grooves. Choose a compatible sensor for a cylinder configured with a magnetic piston.
Technical Specifications
| Order code | SDAT40×10×5 |
|---|---|
| Action | Double acting, multi-position |
| Bore | 40 mm |
| Stroke 1 | 10 mm |
| Stroke 2 | 5 mm |
| Magnetic piston | No |
| Rod end | Female thread |
| Rod-end thread | M8 × 1.25 |
| Air ports | PT 1/8 |
| Working medium | Compressed air filtered through a 40 µm element |
| Operating pressure | 0.15–1.0 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | −20 to 70 °C |
| Operating speed | 30–500 mm/s |
| Cushioning | Fixed end bumpers |
Before You Order
Compare the piston-rod end with your mating tooling and use the drawing for the exact bore and rod configuration to check the hole pattern, fastener depth and clearance.
Keep side load off the piston rod. Check the catalog outline for a nonstandard stroke, since its external dimensions can follow the next longer standard stroke.
Use the multi-position drawing to compare both individual stroke values and the connection arrangement with your circuit.
