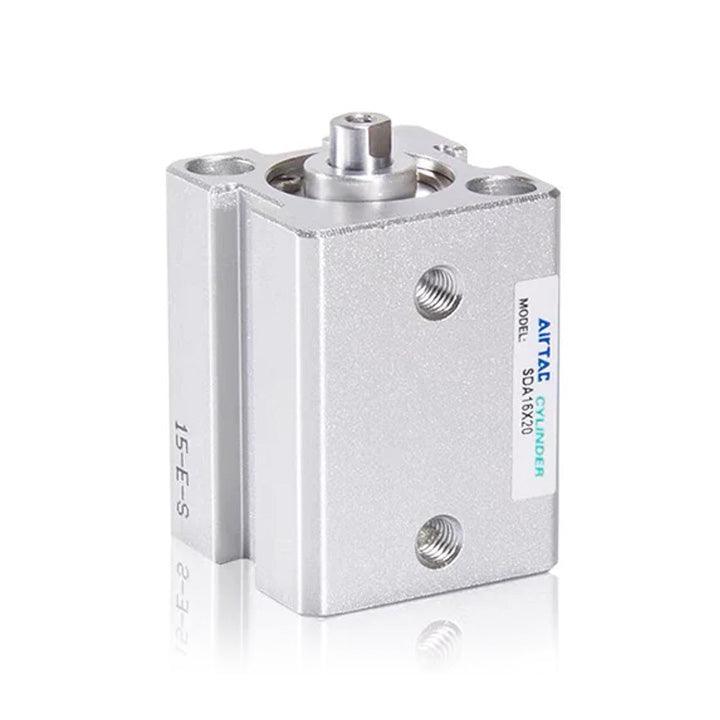

Airtac SDA series: double action cylinder - SDA63X25

Ultra-thin cylinder (double action type) Bore: 63mm Stroke: 25mm Magnet: no magnet Tooth type of piston rod: inner tooth type Tooth type: PT tooth

Specifications

1. Model: SDA63X25

2. Action type: double action type, working medium: air (filtered by filter screen above 40μm)

3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar)

4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range mm: Travel ≤100+0/1.0, Travel ＞100+0/1.5

5. Buffer type: anti-collision pad, nozzle caliber: PT1/4

6. The nozzle type has PT teeth, G teeth and NPT teeth to choose from, and the sensor can be selected: DMSG,CMSG,EMSG,DMSJ,CMSJ

Internal structure and main parts material: 1. back cover: none (ø12, 16), aluminum alloy (other)/2. Anti-collision pad (ring):NBR/3. Piston: Brass (ø12, 16), aluminum alloy (other)/4. Piston O: NBR/5. Piston rod: S45C hard chrome abrasive rod/6. Body: aluminum alloy/7. Front cover: Aluminum alloy/8.O-ring: NBR/9.C-ring: Spring steel/10. Front cover O order: NBR/11. Hexagon nut: carbon steel/12. Bushing: none (ø12~32), wear-resistant material (other)

Type of sealing ring :P-SDA63-R1 NBR material P-SDA63-R2 Fluorine rubber material

Click to download Airtac product catalog

Product Features

1. Adopt Airtac brand manufacturing;

2. Cylinder body and back cover, piston and piston rod with riveted structure, compact and reliable;

3. The inner diameter of the cylinder body after rolling treatment and then hard oxidation treatment, wear resistance, good durability;

4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function;

5. Compact structure, can effectively save the installation space;

6. There is a sensor groove around the cylinder body, which is convenient to install the sensor;

7. Various specifications of the cylinder type to choose from.
