AirTAC SC63X325SNT Double-Acting Tie-Rod Cylinder, 63 mm Bore x 325 mm Stroke
AirTAC SC63X325SNT Double-Acting Tie-Rod Cylinder, 63 mm Bore x 325 mm Stroke
Couldn't load pickup availability

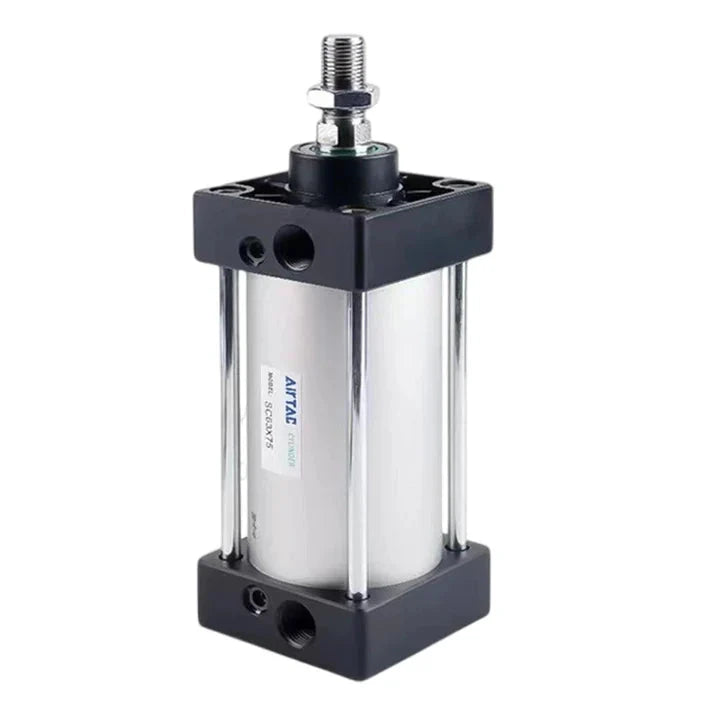

The AirTAC SC63×325SNT is a double-acting tie-rod air cylinder with a 63 mm bore and 325 mm stroke. The magnetic piston can be used with a compatible position sensor.
Product Features
- Tie rods join both end covers to the aluminum cylinder tube.
- A compact bidirectional piston seal incorporates a lubricant-retaining profile.
- Adjustable air cushioning slows the piston near the end of travel. Set it during commissioning to suit the moving load.
- The SC body is shorter than an ISO 15552 cylinder of the same bore according to AirTAC. Compare the actual drawing for a replacement.
Technical Specifications
| Order code | SC63×325SNT |
|---|---|
| Action | Double acting |
| Bore | 63 mm |
| Stroke | 325 mm |
| Magnetic piston | Yes (S) |
| Catalog seal option | NBR (N) |
| Rod-end thread | M16 × 1.5 |
| Cylinder barrel and end covers | Aluminum alloy |
| Piston rod material | Hard-chrome-plated carbon steel |
| Mounting configuration | Basic cylinder mounting |
| Air ports | NPT 3/8 |
| Working medium | Compressed air filtered through a 40 µm element |
| Operating pressure | 0.15–1.0 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | −20 to 70 °C |
| Operating speed | 30–800 mm/s |
| Cushioning | Adjustable air cushioning, 21 mm cushion travel |
| Catalog stroke tolerance | +1.5 / 0 mm |
Before You Order
Check the installed cylinder’s overall length, rod-end dimensions and mounting pattern. The catalog shows the basic body, foot, flange, clevis and trunnion arrangements by model.
Compare the fitting thread and check clearance for the air lines and cushion adjusters. Keep the rod and load aligned and run the cylinder without load before final adjustment.
AirTAC lists F-SC63LB (foot), F-SC63FA (flange), F-SC63CA (single clevis) and F-SC63CB (double clevis) for this bore. Check the accessory drawing for the mounting dimensions.
For end-position feedback, use the SC sensor selection table for CMSG, DMSG or EMSG and check the matching mount and wiring.
The stroke shown is the listed order configuration. Confirm the external dimensions for this stroke with the factory drawing before using it as a drop-in replacement.
