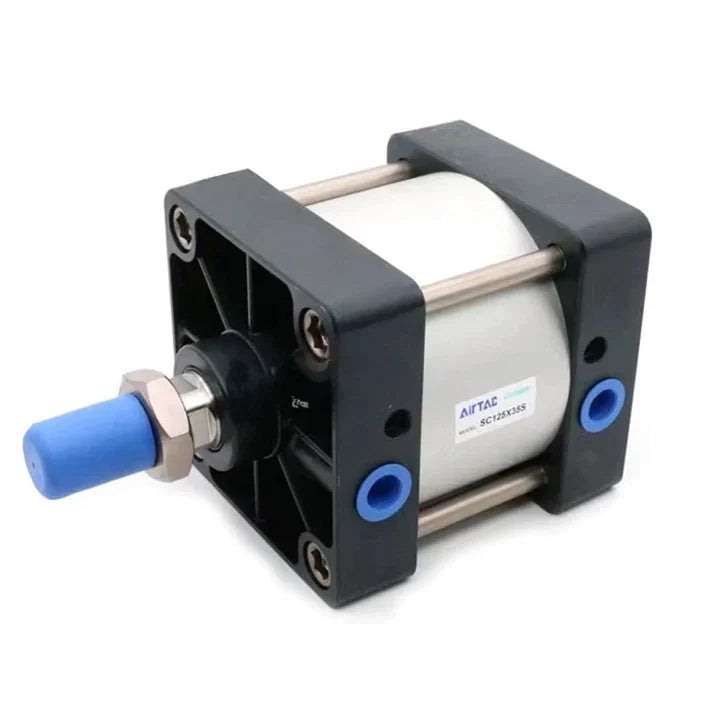

Airtac SC series: Standard double-acting cylinder - SC160X310SFA

Specifications: standard double-action type (large cylinder diameter) Cylinder diameter: 160mm Travel: 310mm Magnet: with magnet Fixed type: FA Seal material: NBR Tooth type: PT tooth

Specifications

1. Model: SC160X310SFA

2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,LB,TC,TCM1

3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar)

4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0

5. Buffer type: adjustable buffer, buffer stroke: 29, Nozzle caliber: PT3/4

6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSG,CMSG

Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover O Order: NBR/4. Bushing: wear-resistant material/5. Front cover: Aluminum alloy/6. Buffer O: TPU/7.O ring: NBR/8. Cylinder: aluminum alloy/9. Piston: Aluminum alloy/10. Piston rod O: NBR/11. Piston O: NBR/12. Magnet: plastic/13. Wear ring: wear resistant material/14. Hexagon socket bolt: carbon steel/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel

Type of sealing ring :P-SC160-R1 NBR Material P-SC160-R2 Fluorine rubber material ， Installation accessories :F-SC160LB Axial mounting F-SC160FA Flange connecting plate F-SC160CA Single-ear fixing seat F-SC160CB Binaural mount F-SC160TC Middle Trunnion Bracket F-SC160TCM1 trunnion mount ， cylinder magnetic ring :GMEB144X156X6 cylinder magnetic ring SC160 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M36X200I I Connector F-M36X200Y Y connector F-M36X200F Floating joint F-M36X200U fisheye joint ， Cylinder front cover rear cover accessories :SC160 Front cover SC160 Rear lid

Click to download Airtac product catalog

Product Features

1.ISO6430 standard cylinder.

2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function.

3. For the tie rod cylinder, the front and rear cover and aluminum tube cylinder with pillar connection, good reliability.

4. Compared with ISO15552 standard cylinders, the length of SC series cylinders with the same bore is small.

5. The cylinder buffer adjustment is stable.

6. Optional induction magnet, easy to install the sensor flexible.

7. Various specifications of the cylinder and installation accessories for selection.

8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.
