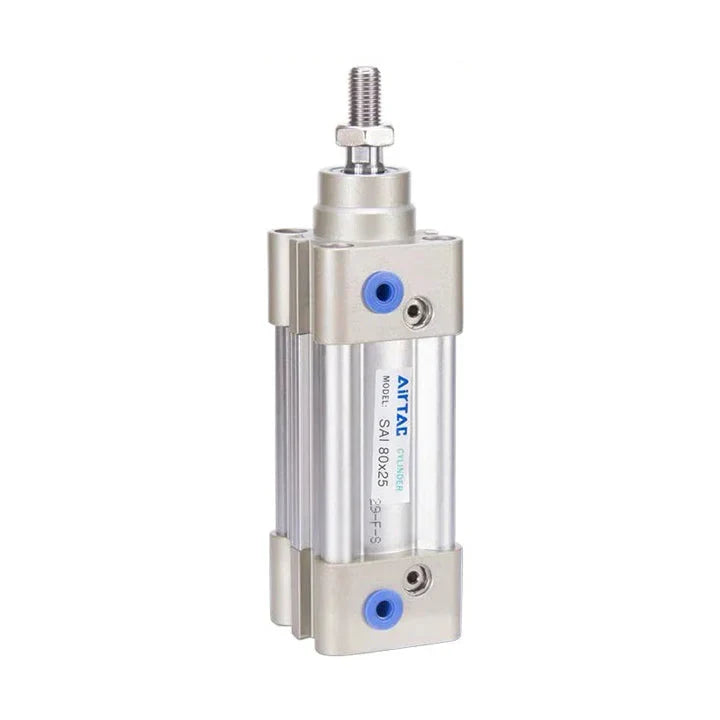

Airtac SAI series: double acting cylinder - SAI50X600SG

Specification: standard compound type Cylinder diameter: 50mm Piston rod material: medium carbon steel Stroke: 600mm Magnet: with magnet Fixed type: none Seal material: TPU Tooth type: G tooth

Specifications

1. Model: SAI50X600SG

2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2

3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar)

4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0

5. Buffer type: adjustable buffer, buffer stroke: 30, Nozzle caliber: PT1/4

6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSE,CMSE

Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive rod, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8. Piston rod O: NBR/9. Piston: Aluminum alloy/10. Piston Oring: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic (below 100), rubber (other)/13. Hexagon socket bolt: carbon steel/14. Cushioning gasket: TPU/15. Back cover: Aluminum alloy/16. Strut Nut: Carbon Steel, Stainless Steel

Type of sealing ring :P-SAI50-R1 TPU material P-SAI50N-R1 NBR Material P-SAI50-R2 Fluorine rubber material ， Installation accessories :F-SI50LB Axial mounting F-SI50FA Flange connecting plate F-SE50CA Single-ear fixing seat F-SE50CB Binaural mount F-SI50CR Single-ear connection seat F-SAI50TC Middle Trunnion Bracket F-SI50FTC Front cover trunnion bracket F-SI40TCM1 trunnion mount F-SI40TCM2 trunnion mount ， cylinder magnetic ring :GMED30X46.5X5 cylinder magnetic ring SAI50 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M16X150I I Connector F-M16X150Y Y connector F-M16X150F Floating joint F-M16X150U fisheye joint ， Cylinder front cover rear cover accessories :SAI50 Front cover SAI50 Rear lid

Click to download Airtac product catalog

Product Features

1.ISO15552 (original ISO6431) standard cylinder.

2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function.

3. M-shaped aluminum tube, no tie rod, good anti-corrosion performance. External with sensor mounting groove, sensor installation is convenient and quick.

4. The cylinder buffer adjustment is stable.

5. Various specifications of the cylinder and cylinder mounting accessories are available.
