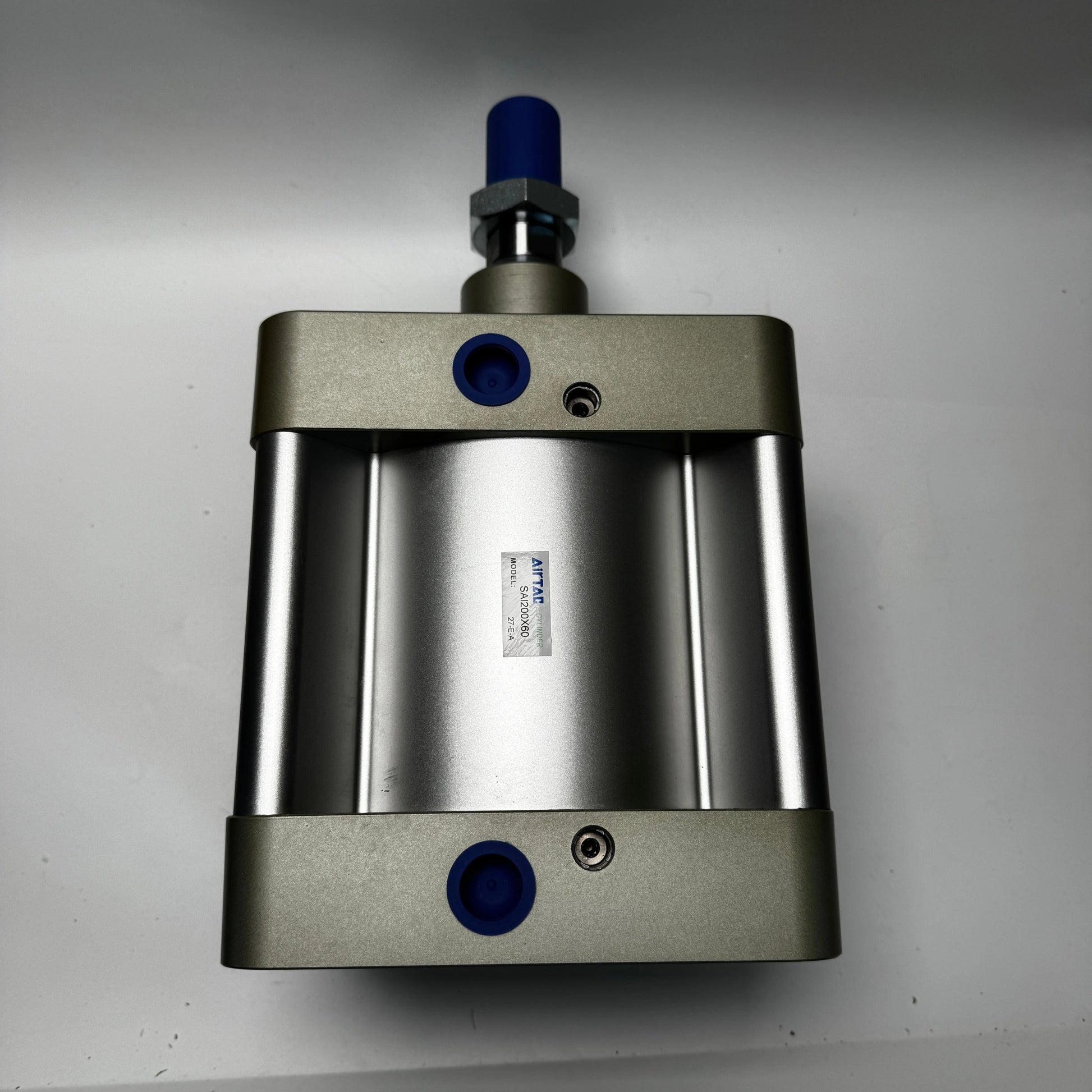

Airtac SAI series: double acting cylinder - SAI200X60

Specification: standard compound type Bore: 200mm Piston rod material: medium carbon steel Stroke: 60mm Magnet: no magnet Fixed type: none Seal material: TPU Tooth type: PT tooth

Specifications

1. Model: SAI200X60

2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2

3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar)

4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0

5. Buffer type: adjustable buffer, buffer stroke: 50, Nozzle caliber: PT3/4

6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSE,CMSE

Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive rod, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8. Piston rod O: NBR/9. Piston: Aluminum alloy/10. Piston Oring: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic (below 100), rubber (other)/13. Hexagon socket bolt: carbon steel/14. Cushioning gasket: TPU/15. Back cover: Aluminum alloy/16. Strut Nut: Carbon Steel, Stainless Steel

Type of sealing ring :P-SAI200-R1 TPU material P-SAI200N-R1 NBR Material P-SAI200-R2 Fluorine rubber material ， Installation accessories :F-SI200LB Axial mounting F-SI200FA Flange connecting plate F-SI200CA Single-ear fixing seat F-SI200CB Binaural mount F-SI200CR Single-ear connection seat F-SI200TC Middle Trunnion Bracket F-SI200FTC Front cover trunnion bracket F-SI200TCM1 trunnion mount F-SI160TCM2 trunnion mount ， cylinder magnetic ring :GMEB184X196X6 cylinder magnetic ring SAI200 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M36X200I I Connector F-M36X200Y Y connector F-M36X200F Floating joint F-M36X200U fisheye joint

Click to download Airtac product catalog

Product Features

1.ISO15552 (original ISO6431) standard cylinder.

2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function.

3. M-shaped aluminum tube, no tie rod, good anti-corrosion performance. External with sensor mounting groove, sensor installation is convenient and quick.

4. The cylinder buffer adjustment is stable.

5. Various specifications of the cylinder and cylinder mounting accessories are available.
