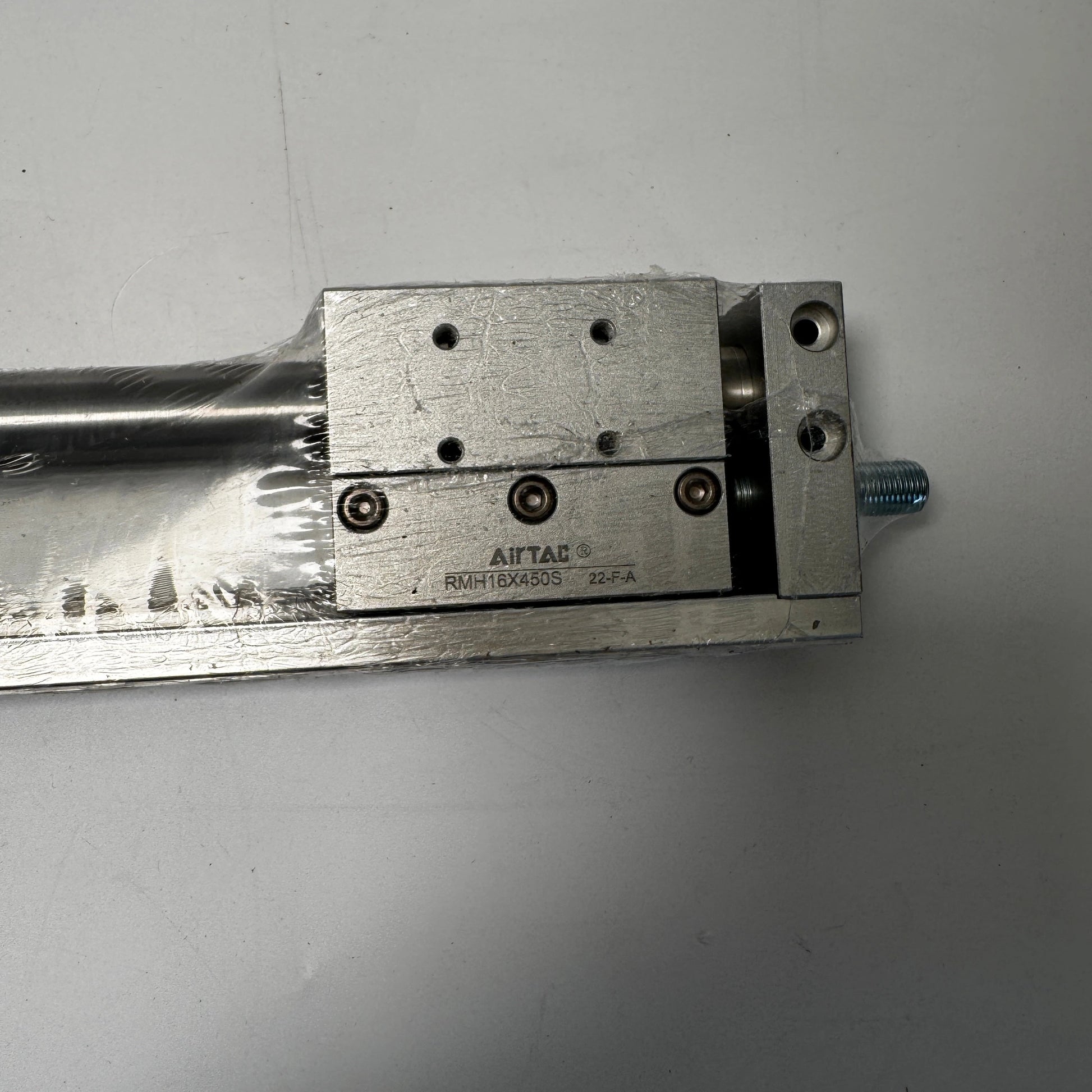

Airtac RMH series: magnetically coupled rod-less cylinder - RMH16X450S

Specifications: Magnetic coupling rod-less cylinder (slide rail type) Cylinder diameter: 16mm Travel: 450mm Magnet: with magnet Tooth type: M5X0.8

Click to download Airtac product catalog

Product Features

1. Magnetic coupling type rod-less cylinder, no mechanical connection between the piston and the slider, excellent sealing performance.

2. The action of the piston is transmitted to the external slider through the magnetic coupling force, without the need for a piston rod, the installation space is less than that of an ordinary cylinder, and the maximum stroke is larger than that of an ordinary cylinder.

3. Both ends of the cylinder with adjustable buffer and fixed buffer device, the reversing action is smooth and no impact, while avoiding mechanical damage. Optional external oil buffer, better buffer effect.

4. The piston cavity is separated from the slider to prevent dust and dirt from entering the system and extend the service life of the cylinder.

5. Increase the slide rail design, the body running precision is high, the body does not rotate high precision, the load capacity is strong.
