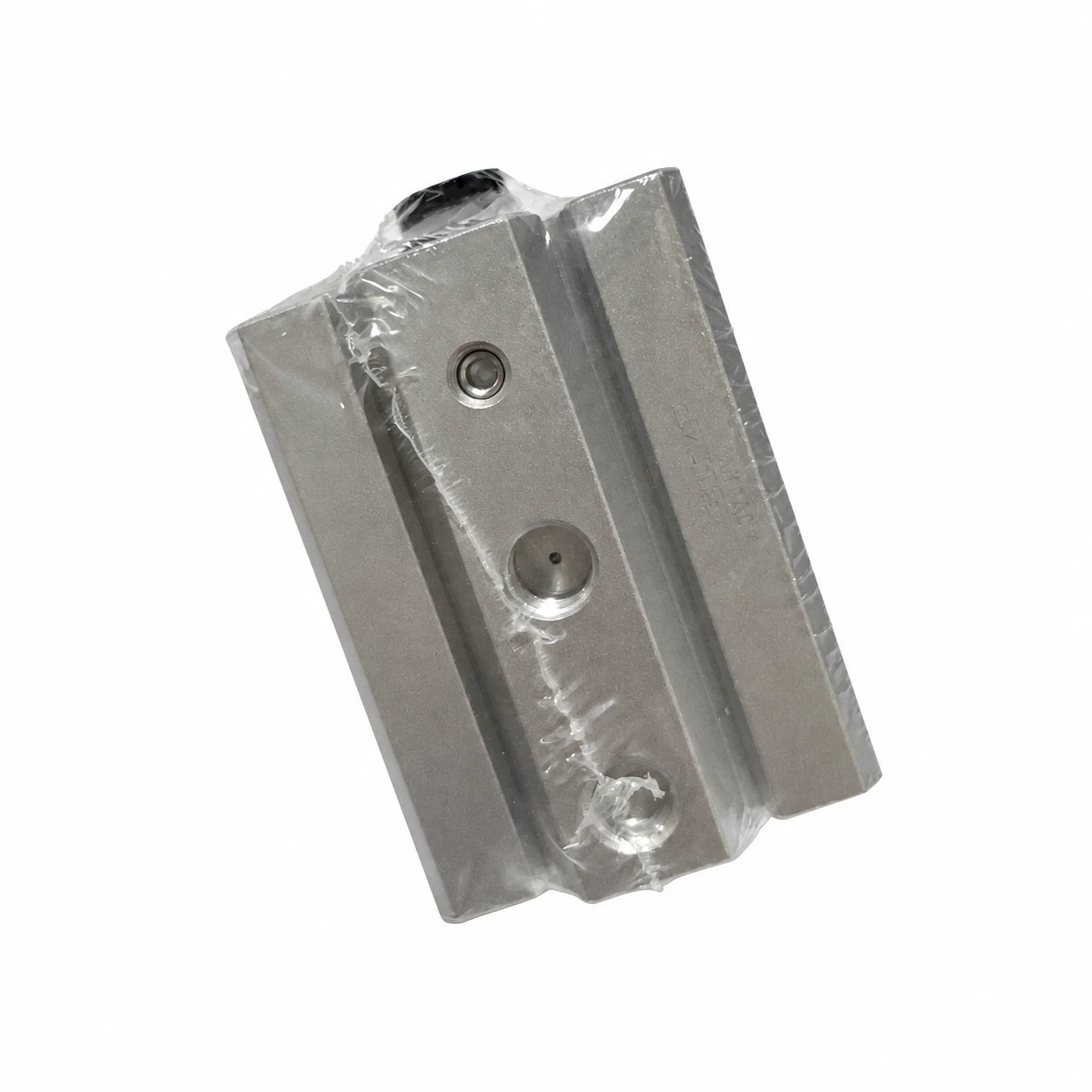

Airtac QDK series: plane rotary clamping cylinder - QDKL40X5SU

Specification: plane rotary clamping cylinder Steering: Left Cylinder diameter: 40mm Clamping stroke: 5mm Magnet: with magnet Front cover type: flat type Tooth type: PT tooth

Click to download Airtac product catalog

Product Features

1. The rotary action is completed at the same level, that is, the rotation stroke is zero, which is more suitable for the use of space-constrained environment than QCK.

2. There are two installation methods of front cover boss type and front cover plane type.

3. Double pin rotation guide groove, smooth action, high precision repeat positioning.

4. The cylinder body is equipped with sensor installation groove around, no need to install accessories.
