AirTAC PTB12X10SR Single-Acting Compact Cylinder, 12 mm Bore x 10 mm Stroke
AirTAC PTB12X10SR Single-Acting Compact Cylinder, 12 mm Bore x 10 mm Stroke
Couldn't load pickup availability

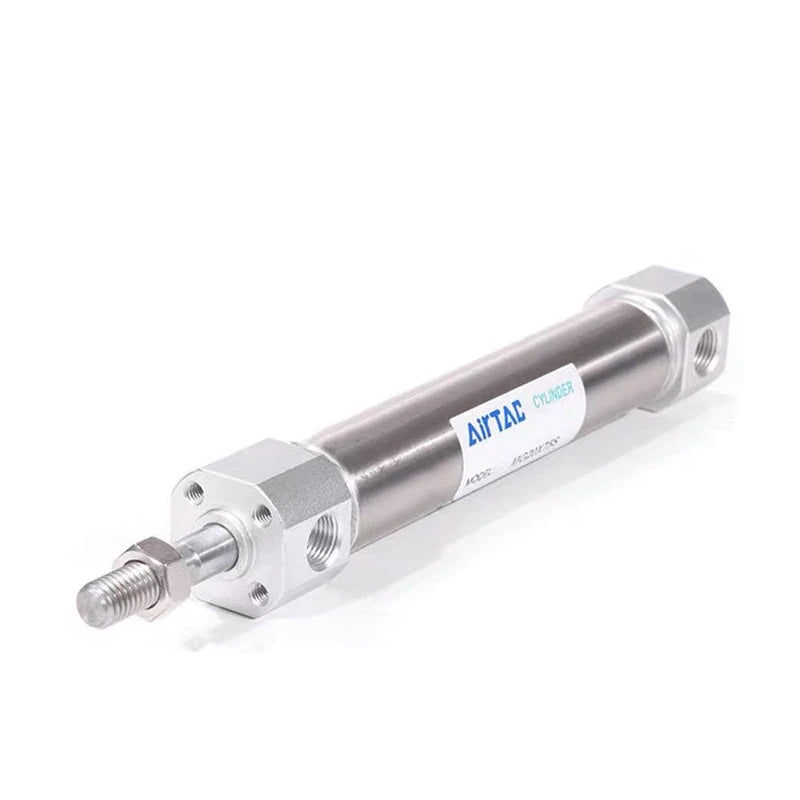

The AirTAC PTB12×10SR is a single-acting pencil air cylinder with a 12 mm bore and 10 mm stroke. The magnetic piston can be used with a compatible position sensor. The spring extends the rod when air pressure is released.
Product Features
- The slim stainless-steel tube and piston rod suit compact installations.
- The rod guide requires no added lubricating oil.
- Front-cover and rear-cover options let the mounting arrangement be matched to the available fixture space.
Technical Specifications
| Order code | PTB12×10SR |
|---|---|
| Action | Single acting, air retracts the rod and the spring extends it |
| Bore | 12 mm |
| Stroke | 10 mm |
| Magnetic piston | Yes (S) |
| Rear cover | Axial-port rear cover (R) |
| Cylinder tube and piston rod | Stainless steel |
| Mounting configuration | Basic cylinder mounting |
| Air ports | M5 × 0.8 |
| Working medium | Compressed air filtered through a 40 µm element |
| Operating pressure | 0.2–0.7 MPa |
| Proof pressure | 1.2 MPa |
| Ambient temperature | −20 to 70 °C |
| Operating speed | 50–800 mm/s |
| Cushioning | Fixed end bumpers |
| Catalog stroke tolerance | +1.0 / 0 mm |
Before You Order
Compare the cylinder drawing for the exact bore and rear cover. Check how the cylinder mounts and whether the air connection is radial or axial.
Select any optional brackets from the PB accessory drawing. Check the air connection and rod-end engagement before ordering a replacement.
Confirm the required spring-return direction against the pneumatic symbol before ordering.
