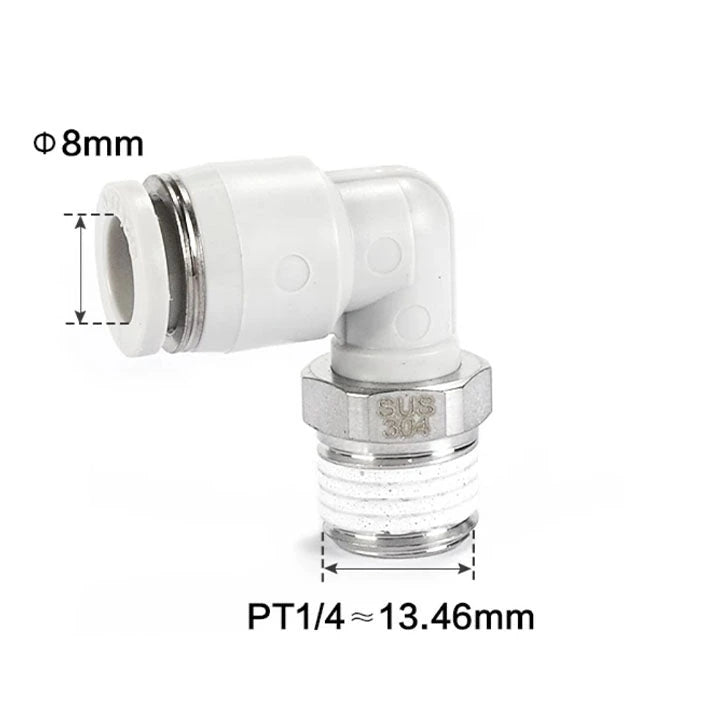

The AirTAC PL802-S is a 90-degree push-to-connect male elbow for 8 mm OD pneumatic tube and a PT 1/4 port. The S suffix specifies the stainless-steel threaded fitting.
Product Features
- The elbow turns the tube route 90 degrees at the equipment connection.
- The design uses an SUS304 threaded fitting and a PBT body.
- The push-in end uses a release button for tube removal after the line has been depressurized.
Technical Specifications
| Order code | PL802-S |
|---|---|
| Layout | 90° male elbow, push-to-connect tube end |
| Tube outside diameter | 8 mm |
| Threaded connection | PT 1/4 |
| Threaded fitting material | SUS304 stainless steel |
| Elbow body | PBT |
| Catalog reach (EA) | 23 mm |
| Catalog mass | 12 g |
| Compatible tubing | Soft nylon or polyurethane |
| Operating pressure | 0–1.0 MPa |
| Proof pressure | 1.5 MPa |
| Operating temperature | −20 to 70 °C |
Before You Order
Confirm the tube outside diameter, pipe thread and available elbow clearance on the dimension drawing.
Seat the square-cut tube fully. Check chemical compatibility and the temperature limit for the tubing and fitting materials.
