AirTAC PL602 Push-to-Connect Male Elbow
AirTAC PL602 Push-to-Connect Male Elbow
Couldn't load pickup availability

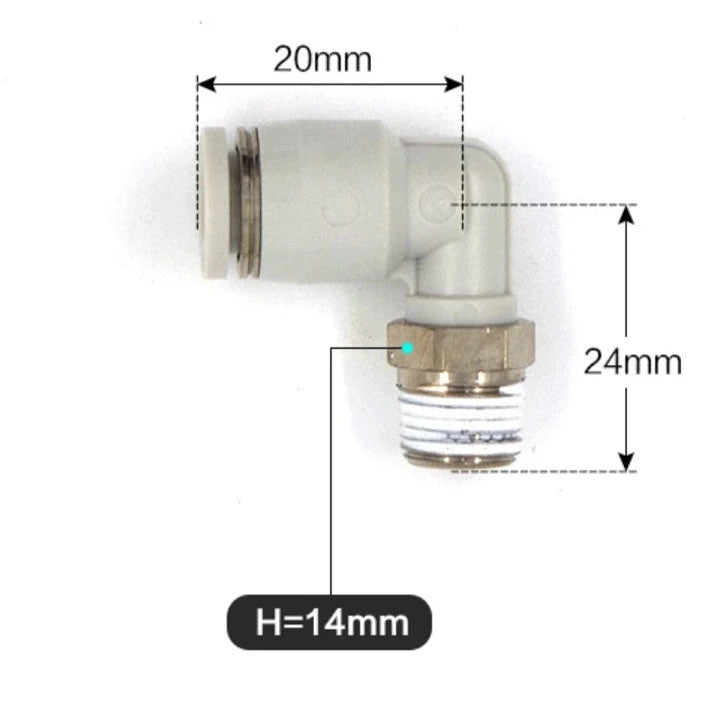

The AirTAC PL602 is a male elbow for 6 mm OD pneumatic tubing and a PT 1/4 equipment port. The catalog drawing shows the connection layout and fittings clearance.
Product Features
- The elbow routes tubing at a right angle to the threaded port.
- The push-to-connect joint accepts the tube by its outside diameter. The release button lets the tube be removed after depressurization.
- The AirTAC fitting design uses a sealant-coated pipe thread.
Technical Specifications
| Order code | PL602 |
|---|---|
| Tube outside diameter | 6 mm |
| Male thread | PT 1/4 |
| Fitting layout | Male elbow |
| Body format | Standard |
| Drawing reference | 20 mm (catalog dimension EA) |
| Catalog mass | 13.5 g |
| Body and threaded stud | PBT body / brass stud |
| Release button | POM |
| Color | Gray |
| Compatible tubing | Soft nylon or polyurethane |
| Operating pressure | 0–1.0 MPa |
| Proof pressure | 1.5 MPa |
| Ambient and fluid temperature | −20 to 70 °C |
Before You Order
Check both the thread standard and tube outside diameter before ordering. Allow space around the fitting for its outline and the tubing bend.
Use a square, clean tube end and seat it fully in the fitting. Depressurize the line before pressing a release button or removing the part.
