AirTAC PBJ16X100-20S Adjustable-Stroke Double-Rod Cylinder, 16 mm Bore x 100 mm Stroke
AirTAC PBJ16X100-20S Adjustable-Stroke Double-Rod Cylinder, 16 mm Bore x 100 mm Stroke
Couldn't load pickup availability

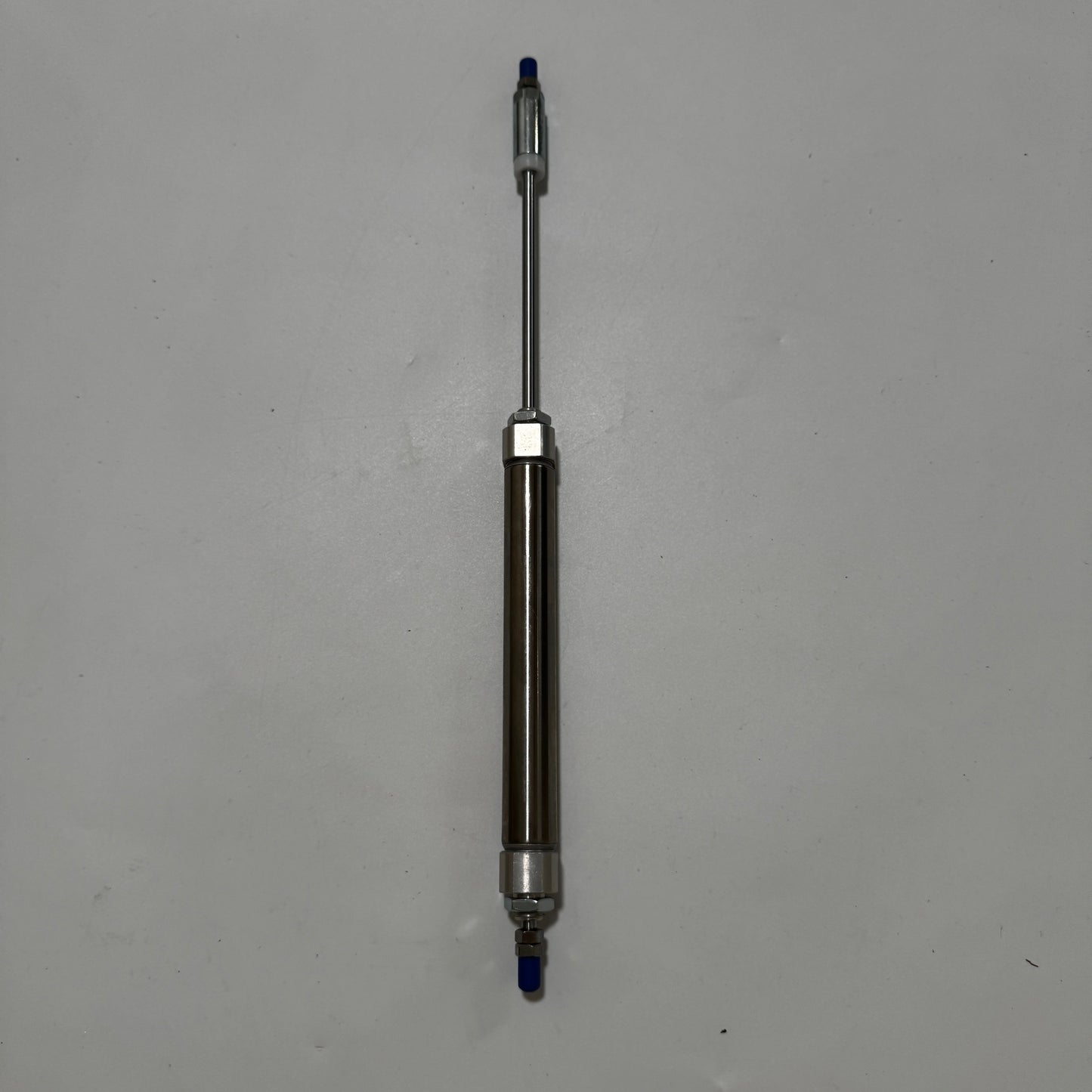

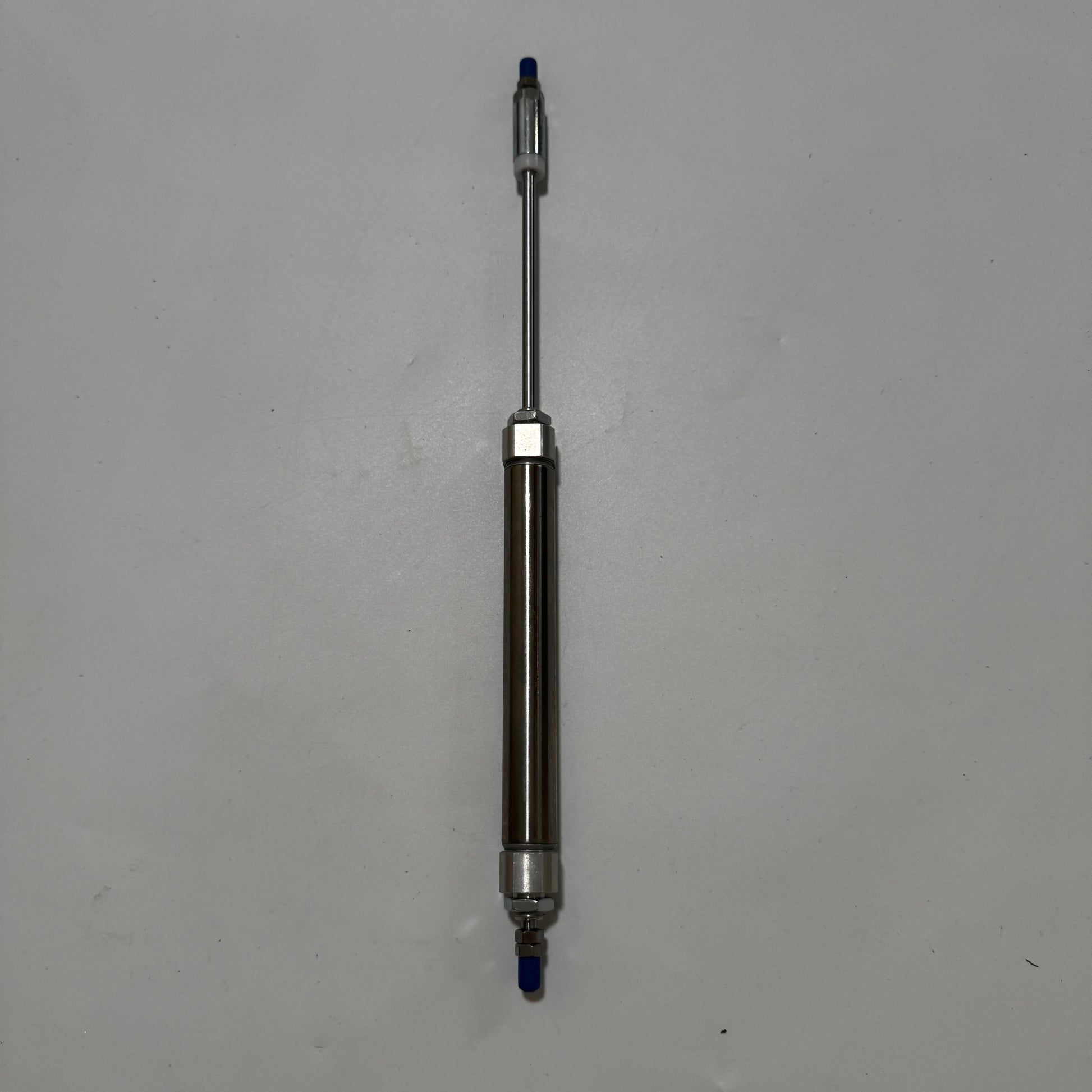

The AirTAC PBJ16×100-20S is a double-acting adjustable-stroke pencil air cylinder with a 16 mm bore and 100 mm stroke. The magnetic piston can be used with a compatible position sensor. This configuration has a piston rod at both ends.
Product Features
- The slim stainless-steel tube and piston rod suit compact installations.
- The rod guide requires no added lubricating oil.
- Front-cover and rear-cover options let the mounting arrangement be matched to the available fixture space.
Technical Specifications
| Order code | PBJ16×100-20S |
|---|---|
| Action | Double acting |
| Bore | 16 mm |
| Stroke | 100 mm |
| Catalog stroke adjustment code | 20 mm |
| Rod configuration | Double rod |
| Magnetic piston | Yes (S) |
| Cylinder tube and piston rod | Stainless steel |
| Mounting configuration | Basic cylinder mounting |
| Air ports | M5 × 0.8 |
| Working medium | Compressed air filtered through a 40 µm element |
| Operating pressure | 0.15–0.7 MPa |
| Proof pressure | 1.2 MPa |
| Ambient temperature | −20 to 70 °C |
| Operating speed | 50–800 mm/s |
| Cushioning | Fixed end bumpers |
| Catalog stroke tolerance | +1.0 / 0 mm |
Before You Order
Compare the cylinder drawing for the exact bore and rear cover. Check how the cylinder mounts and whether the air connection is radial or axial.
Select any optional brackets from the PB accessory drawing. Check the air connection and rod-end engagement before ordering a replacement.
