Airtac PB series: double action type cylinder - PB16X10U

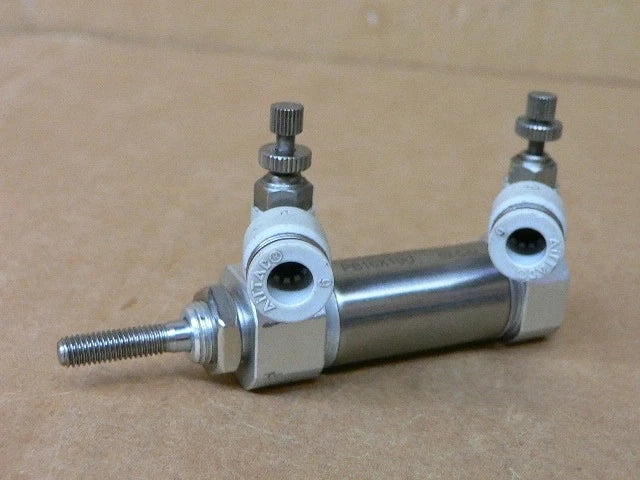

Specifications: pen cylinder (double action type) Cylinder diameter: 16mm Travel: 10mm Magnet: no magnet Rear cover type: radial air intake type Fixed type: no installation accessories

Specifications

1. Model: PB16X10U

2. Action type: double action type, working medium: air (filtered by filter screen above 40μm)

3. Use pressure range: 0.15~0.7MPa(22~100psi)(1.5~7.0bar), Guaranteed pressure resistance: 1.2MPa(175psi)(12bar)

4. Working temperature ℃:-20~70, Use speed range mm/s:50~800, Travel tolerance range: 0~150+0/1.0＞150+0/1.5

5. Buffer type: anti-collision pad, nozzle caliber: M5X0.8

6. The sensor can be optional: DMSG,CMSG

Internal structure and main parts material: 1. Hexagon nut: carbon steel/2. Piston rod: SUS304/3. Hexagon nut: carbon steel/4. Outer cover: brass (ø4), aluminum alloy (other)/5. Bushing: wear-resistant material/6. Front cover O Order: NBR/7. Front cover: brass (ø4), aluminum alloy (other)/8. Cylinder: Bronze (ø4),SUS304 (others)/9. Anti-collision pad (ring):TPU/10. Piston Oring: NBR/11. Wear pad (ring): wear-resistant material/12. Anti-collision pad (ring):TPU/13. Back cover: Brass (ø4), aluminum alloy (other)/14. Piston: aluminum alloy

Installation accessories :F-PB12LB Axial mounting F-PB12FA Flange connecting plate F-PB16CJ CJ Foot Type ， Piston rod end joint :F-PB12I I Connector F-PB12Y Y connector F-M5X080F Floating joint F-M5X080U fisheye joint

Click to download Airtac product catalog

Product Features

1. Implement JIS standard.

2. It is a miniature cylinder with compact structure, small size and light weight.

3. Piston rod guide high precision, no additional lubrication.

4.PB4 and PB6 can only be pre-installed. PB10 PB12 and PB16 with front and rear flexibility.

5. The piston rod adopts stainless steel cylinder, so that the cylinder can adapt to the general corrosive working environment.

6. There are a variety of specifications of the cylinder and accessories for your choice of installation.

7. Small cylinder diameter, rapid response, suitable for high frequency working environment.
