Airtac MPG Series: Standard Panel Type Cylinder - MPG16X30S

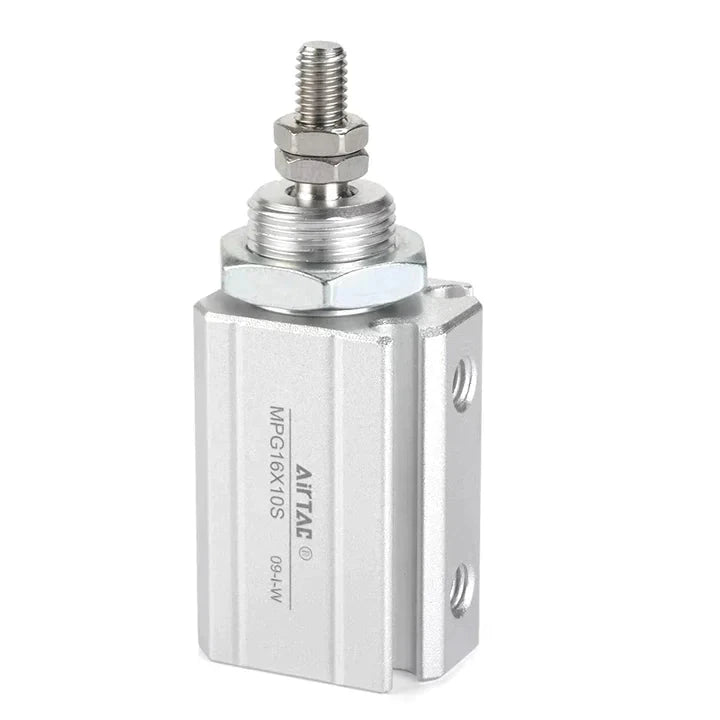

Specifications: Standard panel type cylinder (double action type) Cylinder diameter: 16mm Travel: 30mm Magnet: with magnet Tooth type of piston rod: external tooth type Fixed type: no installation accessories

Specifications

1. Model: MPG16X30S

2. Action type: double action type, working medium: air (filtered by filter screen above 40μm)

3. Use pressure range: 0.15~0.7MPa(22~100psi), Guaranteed pressure resistance: 1.2MPa(175psi), Fixed type: basic type, earring type 、FA、LB、SDB

4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: +0/1.0

5. Buffer type: anti-collision pad, nozzle caliber: M5X0.8, Sensor optional: DMSH,CMSH,EMSH

Internal structure and main parts material: 1. Hexagon nut: stainless steel/2. Piston rod: Stainless steel/3. Piston rod O: NBR/4. Hexagon nut: carbon steel/5. Body: aluminum alloy/6. Anti-collision gasket: TPU/7. Piston O: NBR/8. Piston: Brass (other), aluminum alloy (ø16)/9. Buckle: Spring steel/10. Back cover: aluminum alloy plastic/11. Magnet seat: ø6: stainless steel, ø8~ø12: brass, ø16: aluminum alloy/12. Magnet spacer: NBR/13. Magnet: rare earth

Installation accessories :F-MPG16LB Axial mounting F-MPG16FA Flange connecting plate ， Piston rod end joint :F-M5X080I I Connector F-M5X080Y Y connector

Click to download Airtac product catalog

Product Features

1. Compact structure. Small size. Light weight, easy installation and disassembly.

2. The piston rod guide precision is high, no need to add lubricant.

3. The back cover adopts advanced rubber covering technology.

4. Various specifications of the installation accessories optional.

5. With magnet type with position sensing function.

6. The magnetic switch slot is arranged around the cylinder body, which is convenient to install the induction switch.

7. Various specifications of the cylinder can be selected.
