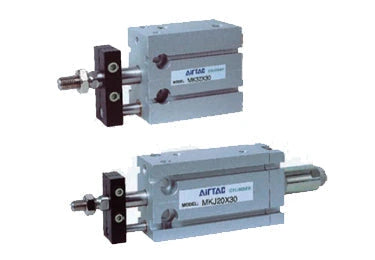

Airtac MK series: double action check return transformation cylinder - MK20X10S

Specifications: multi-solid cylinder (double-action non-return transformation) Bore: 20mm Travel: 10mm Magnet: with magnet Tooth type: M5X0.8

Specifications

1. Model: MK20X10S

2. Action type: double action type, working medium: air (filtered by filter screen above 40μm)

3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi)

4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: +0/1.0

5. Buffer type: anti-collision pad, nozzle caliber: M5X0.8

6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSG,CMSG,EMSG

Internal structure and main parts material: 1. Hexagon nut: mild steel or stainless steel/2. Piston rod: Stainless steel or S45C hard chrome-plated abrasive rod/3. Hexagon socket screws: alloy steel/4. Not rotating fixed block: aluminum alloy/5. Bushing: Brass/6. Fixed rod: stainless steel/7. Piston rod O: NBR/8. Body: aluminum alloy/9. Anti-collision pad (ring):TPU/10. Magnet seat: aluminum alloy/11. Magnet gasket: NBR/12. Magnets: Sintered Rubidium Iron Boron/13. Piston O: NBR/14. Wear pad (ring): wear-resistant material/15. Piston: Aluminum alloy/16.O-ring: NBR/17.C-ring: Spring steel/18. Rear cover: Aluminum alloy/19. Crash cushion (ring):TPU

Type of sealing ring :P-MK20-R1 NBR material P-MK20-R2 Fluorine rubber material

Click to download Airtac product catalog

Product Features

1.Airtac manufacturing;

2. The body of a variety of fixed forms, easy to install and use;

3. Multiple cylinders can be fixed together, effectively saving installation space;

4. The piston rod guide precision is high, no need to add lubricating oil;

5. Equipped with piston rod fixed block, can ensure that the piston rod does not rotate;

6. A variety of specifications and models of the cylinder to choose from;

7. Select high temperature sealing material, can ensure the normal operation of the cylinder at 150 ℃ (optional).
