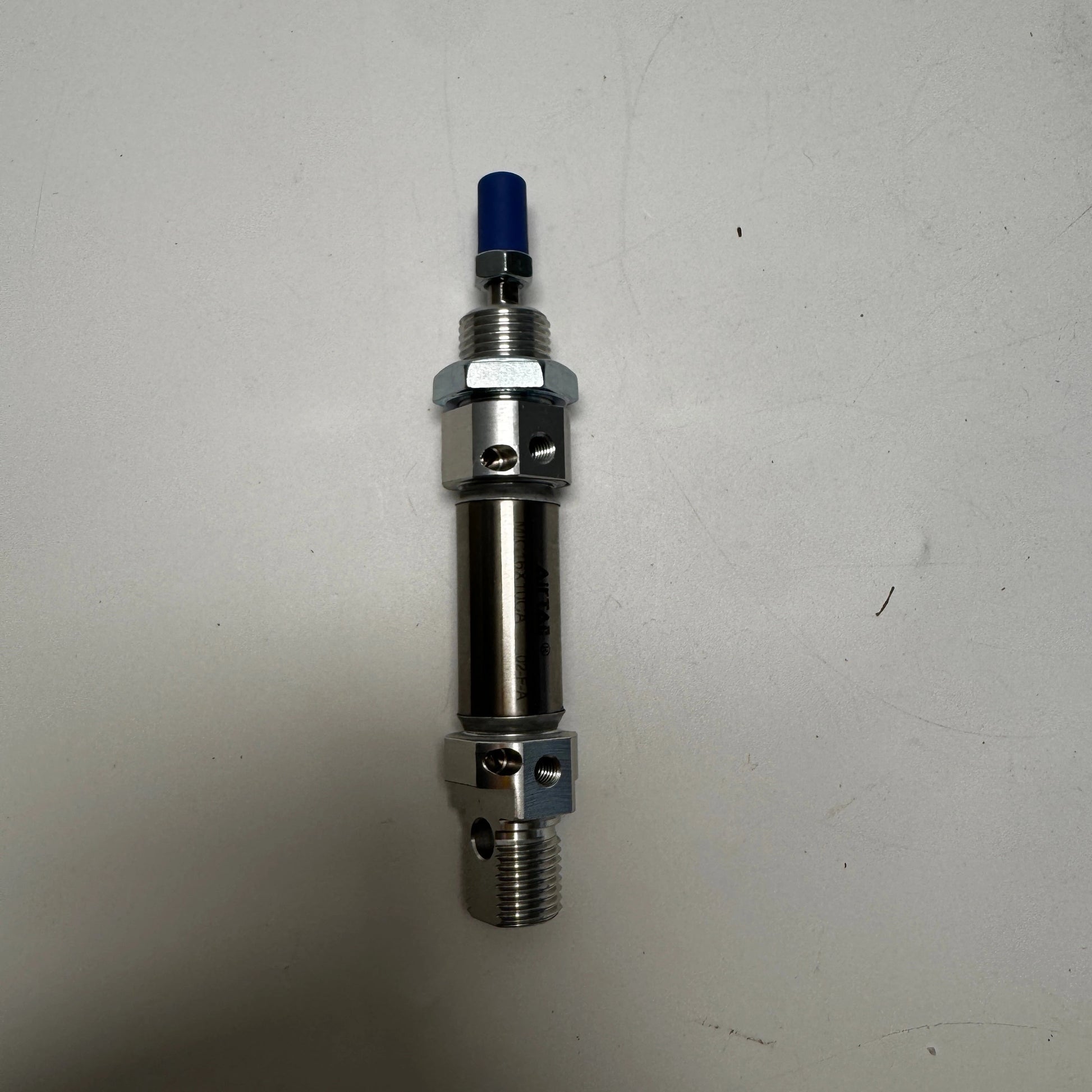

Airtac MI Series: Adjustable Cylinder with Compound Cushioning - MIC16X10CA

Specifications: Mini cylinder (double action buffer adjustable type) Cylinder diameter: 16mm Travel: 10mm Magnet: no magnet Rear cover type: swing tail type Fixed type: no installation accessories Tooth type: M5X0.8

Specifications

1. Model: MIC16X10CA

2. Action type: double-action buffer type, working medium: air (filtered by filter screen above 40μm)

3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar)

4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~150+0/1.0＞150+0/1.5

5. Buffer type: adjustable buffer, nozzle diameter: M5X0.8

6. The sensor can be optional: DMSG,CMSG

Internal structure and main parts material: 1. Piston rod: SUS304/2. Hexagon nut: carbon steel/3. Front cover O Order: NBR/4. Hexagon nut: carbon steel/5. Bushing: wear-resistant material/6. Front cover: aluminum alloy/7. Cylinder: SUS304/8. Anti-collision pad: TPU/9. Piston/10. Piston O: NBR/11. Wear pad: wear resistant material/12. Hexagon nut: carbon steel/13. Rear cover: Aluminum alloy

Installation accessories :F-MI12LB Axial mounting F-MA16FA Flange connecting plate F-MI12SDB Rear Hinge Mount F-MI12TC Middle Trunnion Bracket ， Piston rod end joint :F-M6X100I I Connector F-M6X100Y Y connector F-M6X100F Floating joint F-M6X100U fisheye joint

Click to download Airtac product catalog

Product Features

1. Conform to ISO6432 standard (cylinder diameter 8mm-25mm).

2. The front and rear covers are equipped with fixed anti-collision pads to reduce the reversing impact of the cylinder.

3. A variety of rear cover forms, make the cylinder installation more convenient.

4. The front and rear covers and the stainless steel cylinder body adopt riveted roller package structure, and the connection is reliable.

5. Stainless steel piston rod and cylinder body, so that the cylinder can adapt to the general corrosive working environment.

6. Various specifications of the cylinder and cylinder mounting accessories are available.
