AirTAC MD16X20 Double-Acting Compact Pneumatic Cylinder, 16 mm Bore x 20 mm Stroke
AirTAC MD16X20 Double-Acting Compact Pneumatic Cylinder, 16 mm Bore x 20 mm Stroke
Couldn't load pickup availability

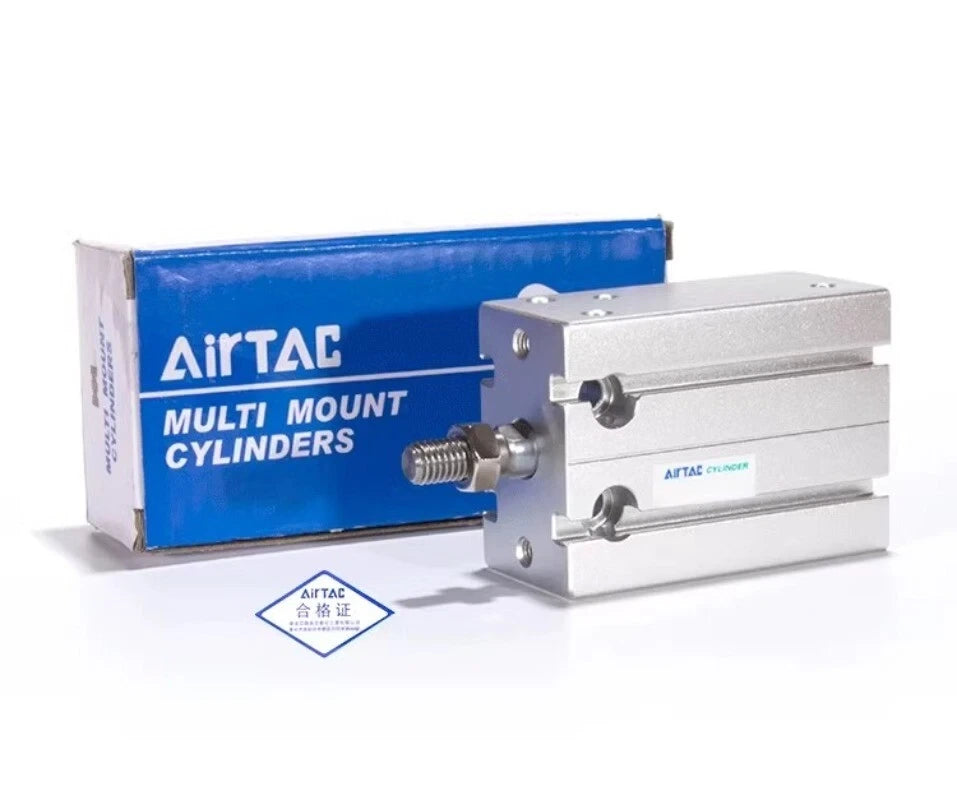

The AirTAC MD16×20 is a double-acting multi-mount pneumatic cylinder with a 16 mm bore and 20 mm stroke.
Product Features
- The body can be fixed in several orientations and multiple cylinders can be mounted side by side.
- The piston rod is guided internally and needs no added oil at the guide.
- End bumpers cushion impact at the end of travel.
Technical Specifications
| Order code | MD16×20 |
|---|---|
| Action | Double acting |
| Bore | 16 mm |
| Stroke | 20 mm |
| Magnetic piston | No |
| Air ports | M5 × 0.8 |
| Working medium | Compressed air filtered through a 40 µm element |
| Operating pressure | 0.15–1.0 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | −20 to 70 °C |
| Operating speed | 30–500 mm/s |
| Cushioning | Fixed end bumpers |
| Catalog stroke tolerance | +1.0 / 0 mm |
Before You Order
Use the applicable MD or MK mounting drawing to check the hole spacing and thread engagement. Leave clearance for the rod and fittings.
Keep the load aligned with the rod and select a compatible sensor and mounting position for any magnet-equipped model.
