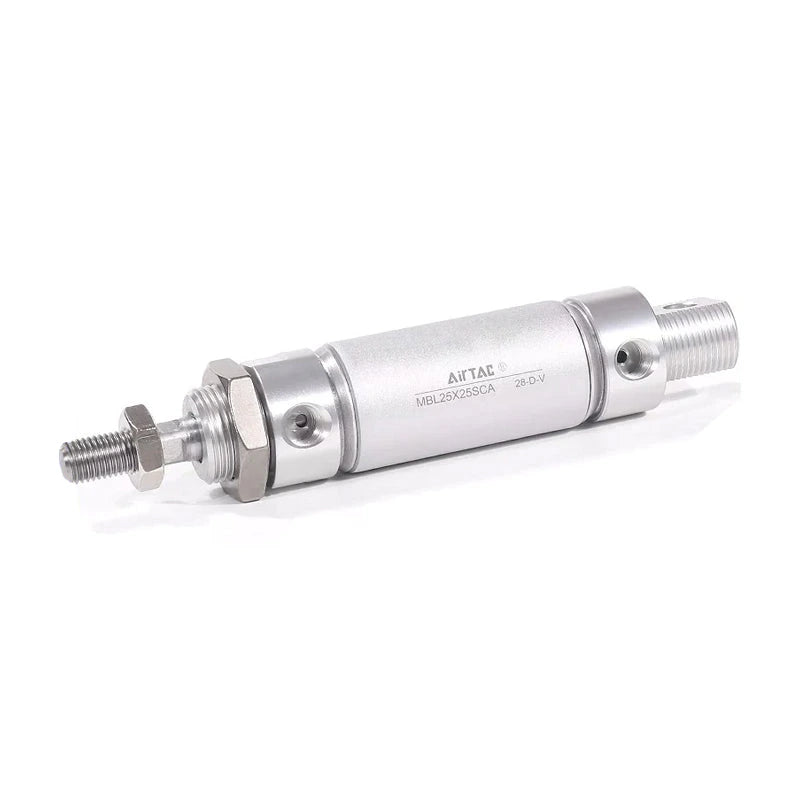

Airtac MBL Series: Double-axis Compound Stroke Adjustable Cylinder - MBLJ20X30-10S

Specifications: Mini cylinder (double-axis compound stroke adjustable type) Bore: 20mm Travel: 30mm Adjusting stroke: 10mm Magnet: with magnet Fixed type: no installation accessories Tooth type: PT tooth

Specifications

1. Model: MBLJ20X30-10S

2. Action type: double action type, working medium: air (filtered by filter screen above 40μm)

3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar)

4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~150+0/1.0＞150+0/1.5

5. Buffer type: anti-collision pad, nozzle caliber: PT1/8

6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSG,CMSG

Internal structure and main parts material: 1. Hexagon nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover O Order: NBR/4. Front cover nut: carbon steel/5. Front cover: Aluminum alloy/6. Buffer O: TPU/7. Cylinder: Aluminum alloy/8.O-ring: NBR/9. Piston: Aluminum alloy/10. Piston O: NBR/11. Magnet: plastic/12. Wear ring: wear-resistant material/13. Screw: Alloy Steel/14. Rear cover: Aluminum alloy

Installation accessories :F-MA20LB Axial mounting F-MA20FA Flange connecting plate ， Piston rod end joint :F-MA20I I Connector F-MA20Y Y connector F-M8X125F Floating joint F-M8X125U fisheye joint

Click to download Airtac product catalog

Product Features

1. Adopt the original imported cylinder of our company.

2. The front and rear covers are connected with the cylinder by riveting structure, which has higher reliability.

3. The piston adopts special-shaped two-way sealing structure, small size, and has the function of oil storage.

4. The rear cover has various forms to make the cylinder installation more convenient.

5. There are a variety of specifications of the cylinder and installation accessories to choose from.
