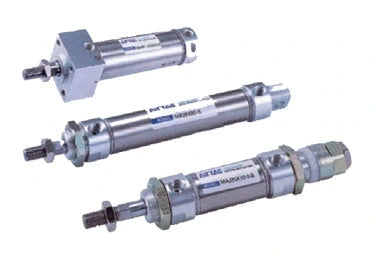

Airtac MA Series: Compound Cylinder - MA20X75SCA

Specifications: Mini cylinder (compound type) Bore: 20mm Stroke: 75mm Magnet: with magnet Rear cover type: swing tail type Fixed type: no installation accessories Tooth type: PT tooth

Specifications

1. Model: MA20X75SCA

2. Action type: double action type, working medium: air (filtered by filter screen above 40μm)

3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar)

4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~150+0/1.0＞150+0/1.5

5. Buffer type: anti-collision pad, nozzle caliber: PT1/8

6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSG,CMSG

Internal structure and main parts material: 1. nut: stainless steel, carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover O Order: NBR/4. Front cover nut: carbon steel/5. Front cover: Aluminum alloy/6. Anti-collision gasket: TPU/7. Cylinder: Stainless steel/8. Piston: Aluminum alloy/9. Piston O: NBR/10. Magnet: plastic/11. Wear pad (ring): wear-resistant material/12. Rear cover: Aluminum alloy

Installation accessories :F-MA20LB Axial mounting F-MA20FA Flange connecting plate F-MA20SDB Rear Hinge Mount ， Piston rod end joint :F-MA20I I Connector F-MA20Y Y connector F-M8X125F Floating joint F-M8X125U fisheye joint

Click to download Airtac product catalog

Product Features

1. Yadke standard cylinder;

2. The piston adopts special-shaped two-way sealing structure, small size and oil storage function;

3. The front and rear covers are equipped with fixed anti-collision pads, which can reduce the reversing impact of the cylinder;

4. The rear cover has various forms, which makes the installation of the cylinder more convenient;

5. The front and rear covers and stainless steel cylinder body adopt riveted roller package structure, reliable connection;

6. The cylinder body adopts high-precision stainless steel pipe, high strength and corrosion resistance;

7. There are a variety of specifications of the cylinder and installation accessories to choose from;

8. All cylinders of this series are attached with magnetism.
