AirTAC MA20X100SCA Double-Acting Mini Pneumatic Cylinder, 20 mm Bore x 100 mm Stroke
AirTAC MA20X100SCA Double-Acting Mini Pneumatic Cylinder, 20 mm Bore x 100 mm Stroke
Couldn't load pickup availability

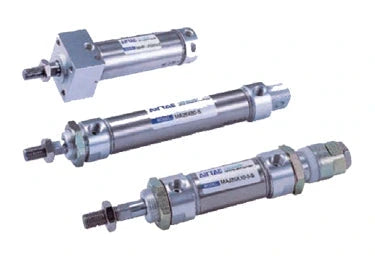

The AirTAC MA20×100SCA is a double-acting stainless-tube mini air cylinder with a 20 mm bore and 100 mm stroke. The magnetic piston can be used with a compatible position sensor.
Product Features
- A stainless-steel tube is joined to the end covers by a rolled, riveted connection.
- The bidirectional piston seal incorporates a lubricant-retaining profile.
- The series uses a magnetic piston, so a compatible sensor can be selected for end-position feedback.
- Fixed bumpers at the end covers soften the end-of-stroke impact.
Technical Specifications
| Order code | MA20×100SCA |
|---|---|
| Action | Double acting |
| Bore | 20 mm |
| Stroke | 100 mm |
| Magnetic piston | Yes (S) |
| Rear cover | Clevis-style rear cover (CA) |
| Cylinder tube | Stainless steel |
| Rod-end thread | M8 × 1.25 |
| Mounting configuration | Basic cylinder mounting |
| Air ports | PT 1/8 |
| Working medium | Compressed air filtered through a 40 µm element |
| Operating pressure | 0.15–1.0 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | −20 to 70 °C |
| Operating speed | 30–800 mm/s |
| Cushioning | Fixed end bumpers |
| Catalog stroke tolerance | +1.0 / 0 mm |
Before You Order
Compare the rear cover and cylinder drawing with the installed unit. The series offers different rear-cover shapes and mounting arrangements.
Match any optional foot, flange, rear hinge or rod-end joint to the actual cylinder drawing. Align the rod and load and clear debris from the air lines before connecting them.
