AirTAC M5HS21008B 5-Way Manual Pneumatic Valve
AirTAC M5HS21008B 5-Way Manual Pneumatic Valve
Couldn't load pickup availability

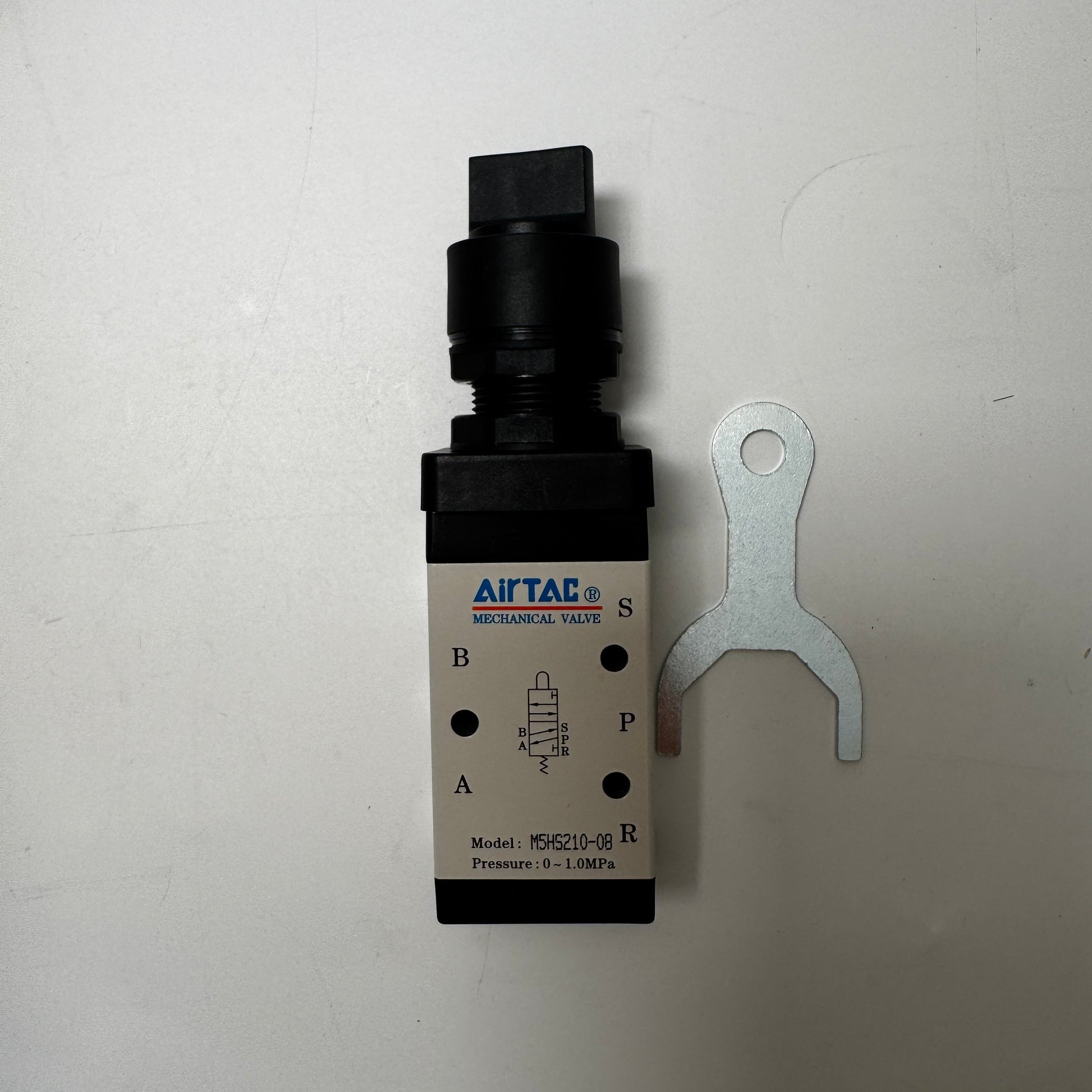

The AirTAC M5HS21008B is a 5/2-way pneumatic control valve with a selector and PT 1/4 ports.
Product Features
- The actuator switches the air path mechanically, allowing the valve to operate without an electrical coil.
- The aluminum body supports multiple mounting positions.
- The selected actuator geometry determines how the valve fits the machine linkage or operator control. The catalog shows the valve symbol and mounting details.
Technical Specifications
| Order code | M5HS21008B |
|---|---|
| Valve function | 5/2-way |
| Actuator | Selector |
| Port size | PT 1/4 |
| Body | Aluminum alloy |
| Lubrication | No added oil required |
| Catalog effective area | 12.0 mm² |
| Catalog flow coefficient | Cv 0.67 |
| Control color | Black |
| Catalog spool travel | 2.0–3.3 mm |
| Catalog actuator travel | 5.1–6.4 mm |
| Working medium | Compressed air filtered through a 40 µm element |
| Operating pressure | 0–1.0 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | −20 to 70 °C |
Before You Order
Match the actuator and port configuration to the original unit. Use the pneumatic symbol to confirm the working and exhaust connections.
Check actuator travel, mounting-hole spacing and clearance before installation. Use the catalog flow curve for the applicable body and port size.
