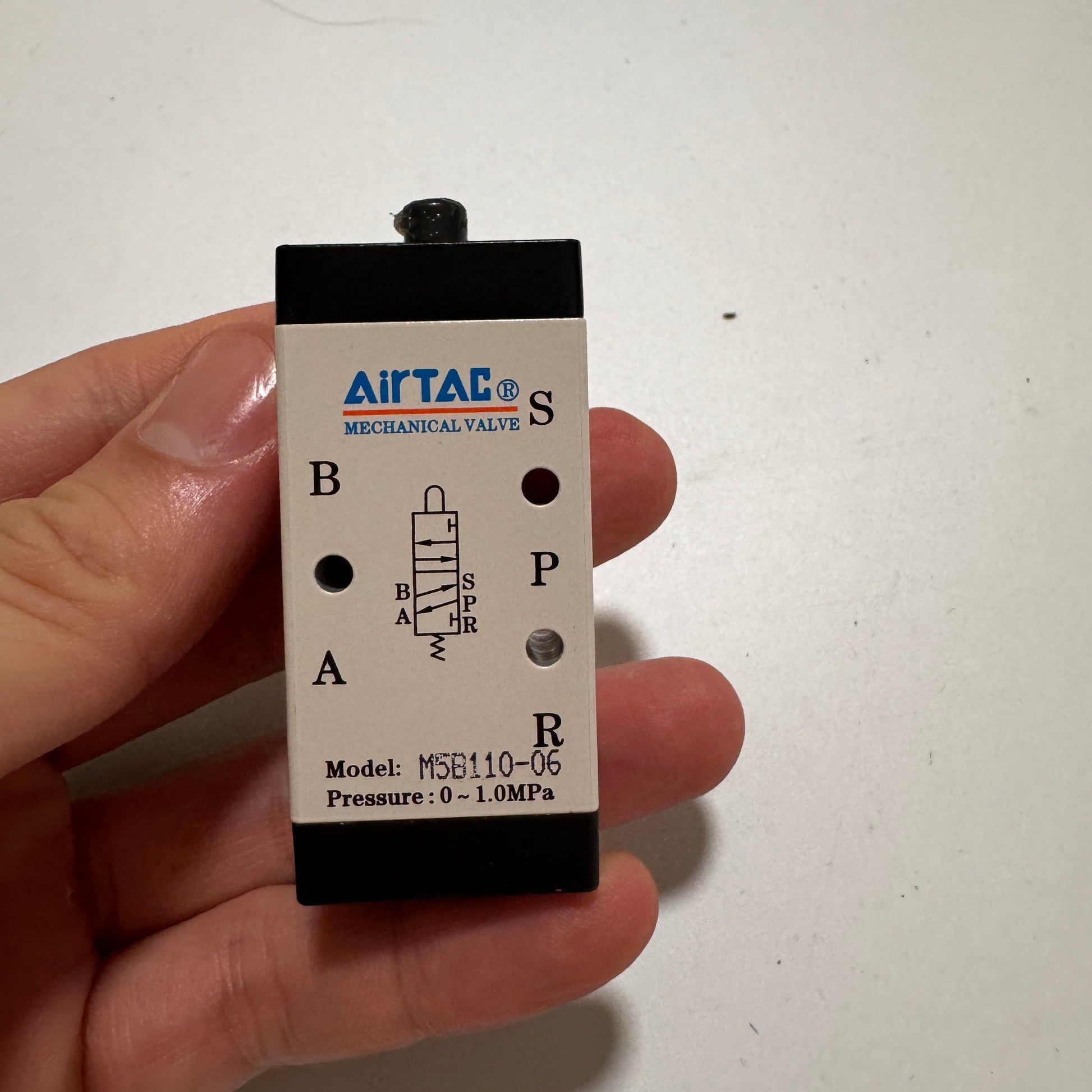

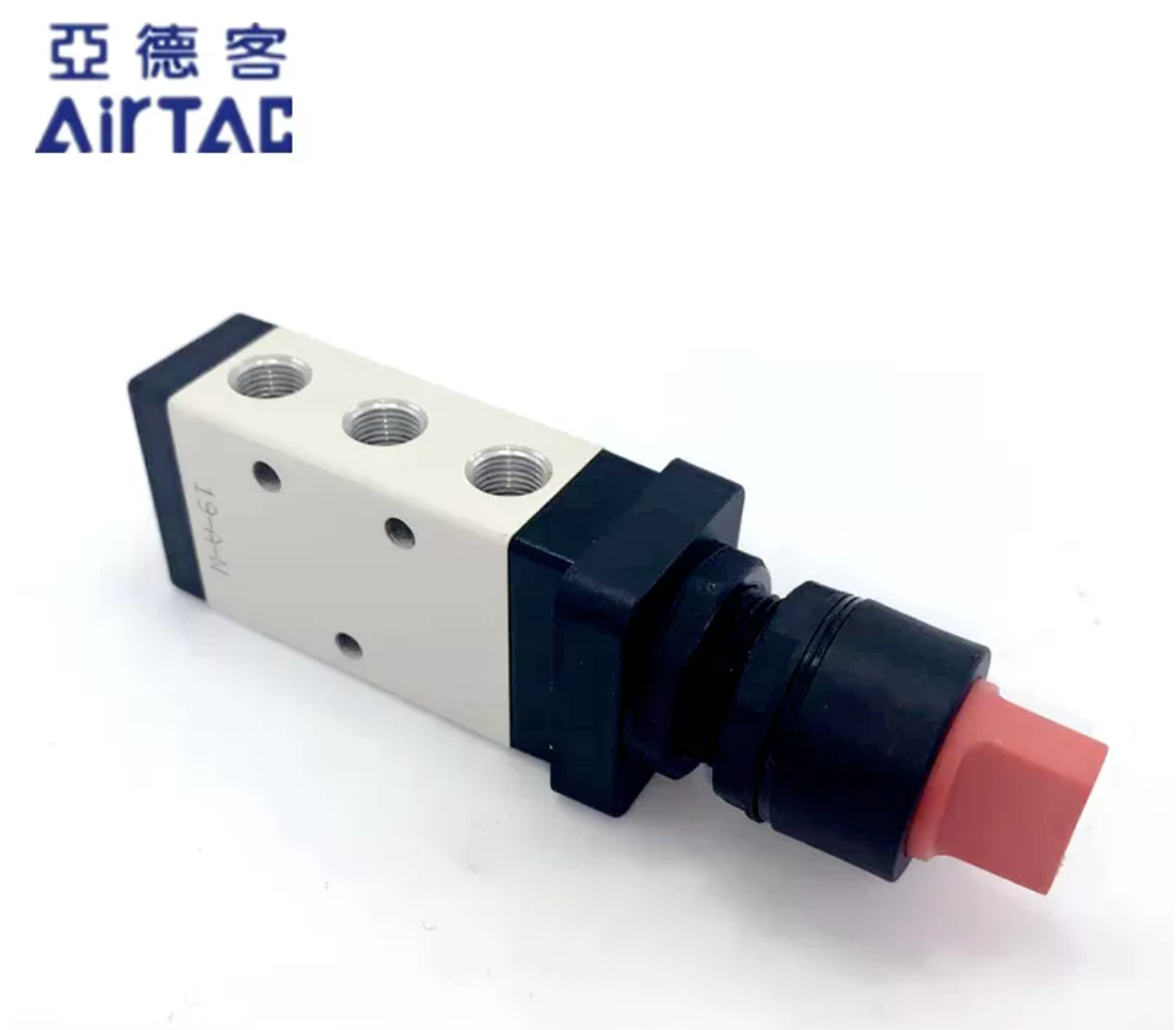

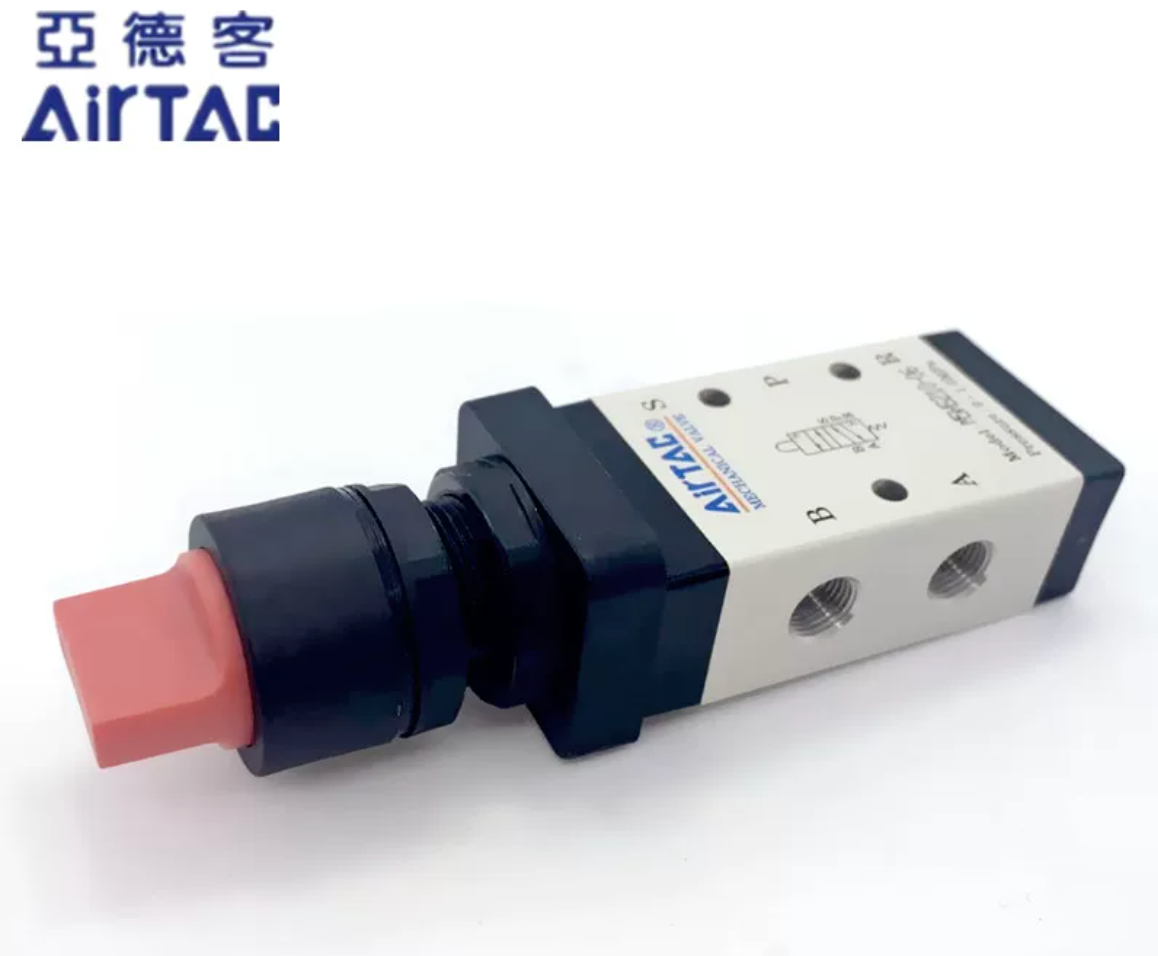

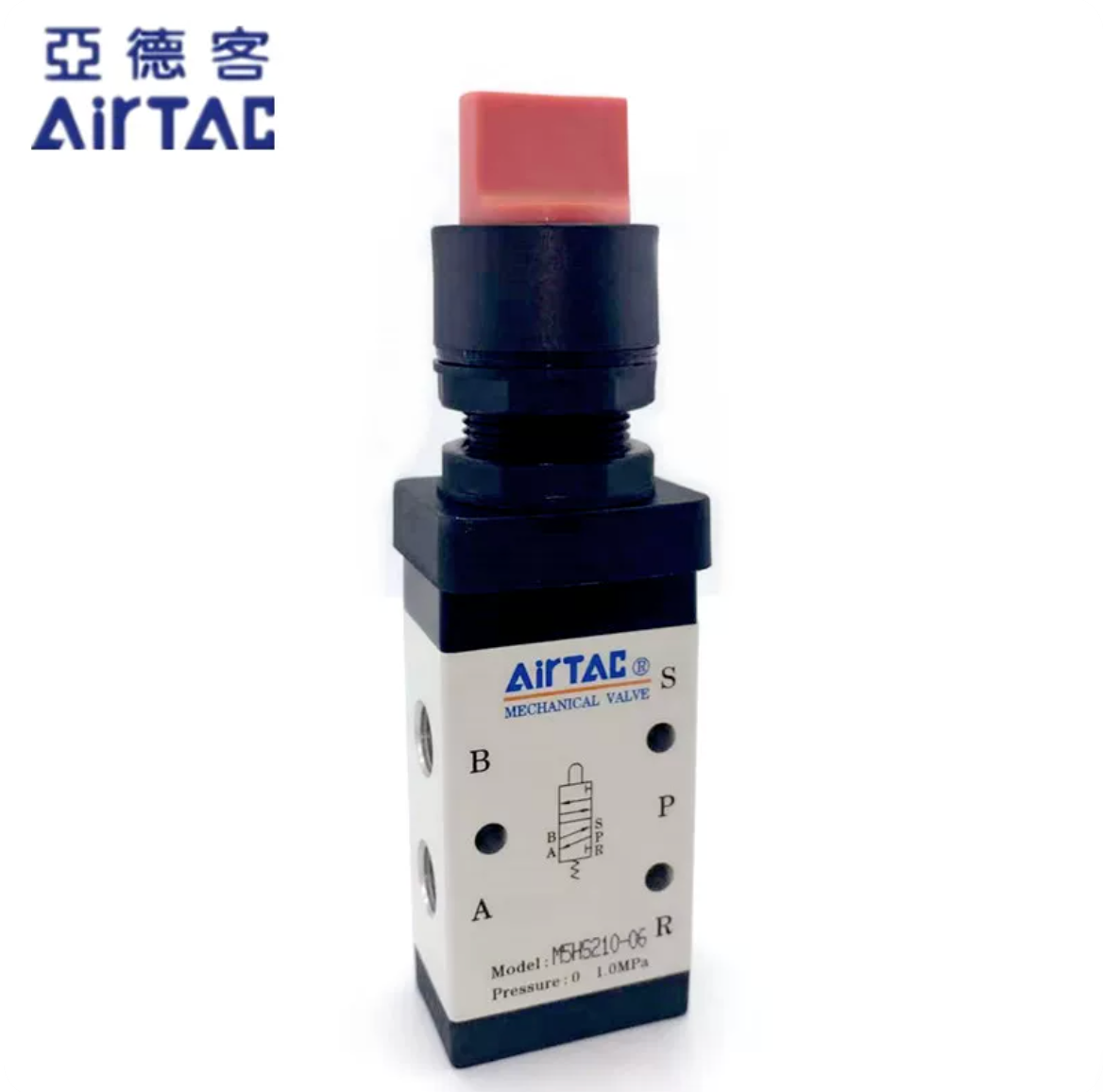

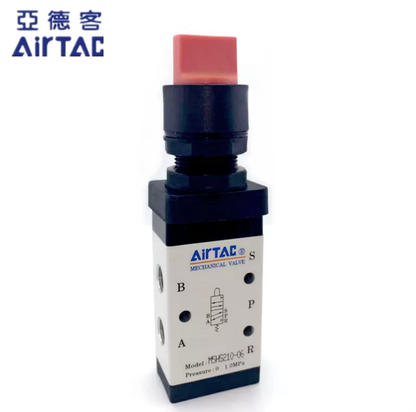

Airtac M5B110-06: Manual Valve. 5 Way - M5B11006

Structure: M type five two Specifications: Basic mechanical valve Series: 100 series single control Nozzle caliber: 1/8" Tooth type: PT tooth

Click to download Airtac product catalog

Product Features

1. The exhaust port is located above the body, which is convenient to install the muffler, reduce noise and reduce pollution.

2. The external force required for M5B, M5R and M5L series commutation is provided by an external organization, which can be position detection, travel switch and limit switch.

3.M5C, M5D, M5Y, M5PF, M5PM, M5PP, M5PL, M5HS are all manually operated, with a variety of structural forms of control joints, suitable for use under different conditions.

4. Adopt sliding column structure, the control force is not affected by the working pressure (I. e. no back pressure effect), the inner ring is sealed, the sealing is good, and the direction is sensitive.

5. No lubricant required.

6. A variety of installation methods, easy to install and use.

7.M5C, M5D, M5Y, M5R, M5L series control joints are made of metal materials, with longer service life and more reliable and stable performance.

The Airtac M5 valve series is a functional replacement for the SMC VZM400 series.
