AirTAC HSV08FFT Slide Valve
AirTAC HSV08FFT Slide Valve
Couldn't load pickup availability
The AirTAC HSV08FFT is a 3/2-way pneumatic hand-slide valve. This configuration has a NPT 1/4 connection and uses the female threads at both ends (ff) shown in the catalog.
Product Features
- A hand-operated sleeve switches the air connection and downstream exhaust as shown in the catalog symbol.
- The valve plug has a hard-anodized surface, and the aluminum body has an anodized finish.
- The inline arrangement connects between the supply and the downstream circuit. Match the end layout to your fittings.
Technical Specifications
| Order code | HSV08FFT |
|---|---|
| Valve function | 3/2-way |
| Operation | Manual, direct-acting slide sleeve |
| Air connection | NPT 1/4 |
| Connection arrangement | Female threads at both ends (FF) |
| Operating pressure | 0–1.0 MPa |
| Proof pressure | 1.5 MPa |
| Catalog flow coefficient | Cv 2.20 |
| Catalog effective area | 40 mm² |
| Catalog overall length | 47 mm (dimension A) |
| Working medium | Compressed air filtered through a 40 µm element |
| Ambient temperature | −20 to 70 °C |
| Body | Aluminum alloy |
| Lubrication | No added oil required |
Before You Order

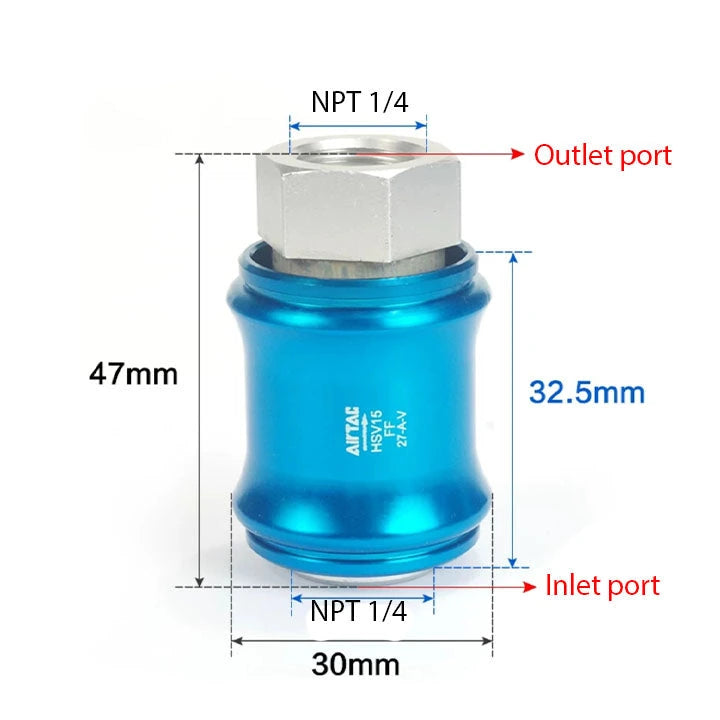

Check the inlet and outlet orientation on the catalog drawing before installing. Use the exact connection arrangement when comparing a replacement.
Allow room around the body to move the sleeve. Compare the listed flow coefficient with the required downstream airflow.
