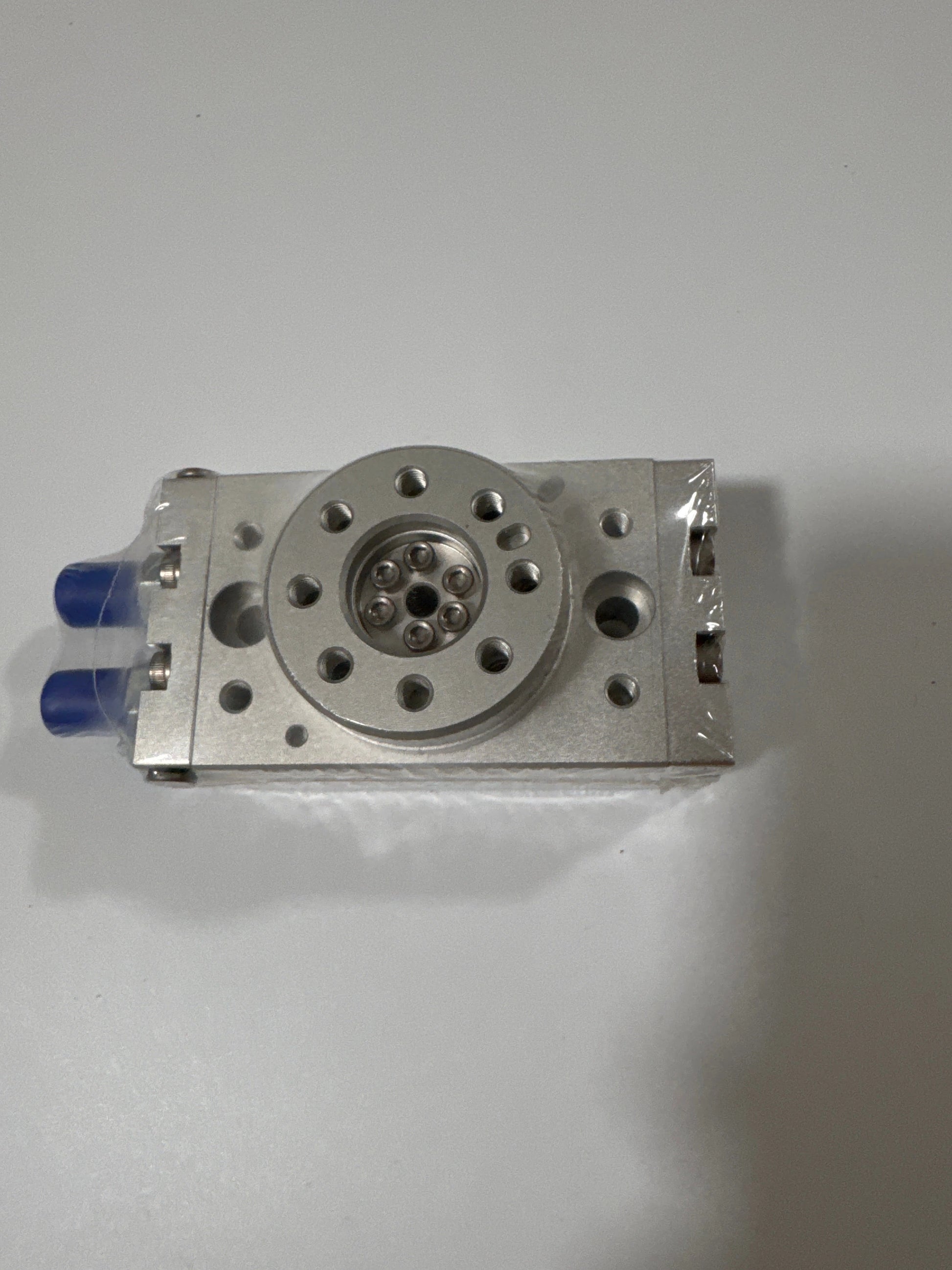

Airtac HRQ series: rotary cylinder - HRQ10

Specifications: rotary cylinder Specification: 10 Buffer mode: fixed buffer Tooth type: M5X0.8

Specifications

1. Model: HRQ10

2. Action type: double piston rack and pinion type double action type, working medium: air (filtered by filter screen above 40μm)

3. Use pressure range with adjusting screws: 0.15~0.7MPa(22~100psi)(1.5~7.0bar)/ Attach oil pressure buffer: 0.15~0.7MPa(22~100psi)(1.5~7.0bar), Guaranteed pressure resistance: 1.2MPa(175psi)(12.0bar)

4. Working temperature (℃):-20~70, Rotation angle range: 0~190°, Repeatability accuracy with adjustment screws: 0.5°/ Attach oil pressure buffer: 0.05°

5. Theoretical Moment (Nm)(0.5MPa):1.1, Buffer type with adjusting screw: anti-collision pad/with oil pressure buffer: oil pressure buffer

6. Front-end interface of nozzle caliber: M5X0.8/ Side Interface: M5X0.8, Weight g:535

7. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSH,CMSH,EMSH

Internal structure and main parts material: 1. adjusting screw: carbon steel/2. Hexagon flange nut: carbon steel/3. Sealing gasket: carbon steel plastic/4. Front cover: Aluminum alloy/5. Body: aluminum alloy/6. Hexagon Socket Screw: Carbon Steel/7. Dial: aluminum alloy/8. Hexagon Socket Screw: Carbon Steel/9. Locating pin, flat key: carbon steel/10. Deep groove ball bearings: components/11. Pressure plate: aluminum alloy/12. Deep groove ball bearings, needle roller bearings: components/13. Back cover: Aluminum alloy/14. Steel ball: stainless steel/15. Piston O: NBR/16. Wear pad (ring): wear-resistant material/17. Magnets: rare earth materials/18. Rack: stainless steel, carbon steel/19. Gear: chrome molybdenum steel/20.O-ring: NBR/21. Crash cushion: NBR/22.O-ring: NBR/23.O-ring: NBR/24. Hexagon screw: stainless steel/25. Oil buffer: components

Type of sealing ring :HRQ10 ， Gear Accessories :HRQ10 Gear Accessories HRQ10-007 Gear pressure plate accessories ， Cylinder front and rear end covers :HRQ10-001N Front end cover HRQ10-031-P1 Rear end cover

Click to download Airtac product catalog

Product Features

1. Rand-pinion design, stable operation.

2. Double cylinder structure, can achieve double output.

3. The working platform has high manufacturing precision, convenient installation and accurate positioning.

4. The center of the working platform is provided with a through hole through which the pipe can be positioned.

5. Both sides of the cylinder (10~200) or the bottom surface (2~7) are provided with guide holes, which is easy to install.

6. Buffer way optional adjustment bolt buffer and built-in buffer two, built-in buffer maximum buffer energy is adjusting bolt buffer 3~5 times.
