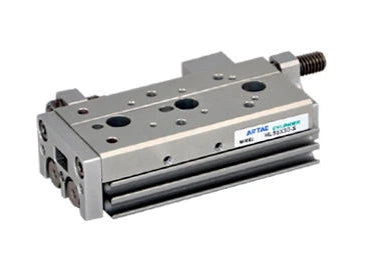

Airtac HLS Series: Dual-Axis Precision Sliding Cylinder - HLS20X40ST

Specifications: Double-axis precision sliding table cylinder (roller type) (standard type) Bore: 20mm Stroke: 40mm Magnet: with magnet External stop type: no external stop (basic type) Tooth type: NPT tooth

Click to download Airtac product catalog

Product Features

1. Provide a variety of external stop combination type, convenient selection under different working conditions.

2. Cross roller guide, with high strength, high precision, high load characteristics, with excellent straightness and no rotation accuracy.

3. The fixed cylinder can be installed from 3 directions, which is convenient for application.

4. Double piston rod design, can get double output.

5. Floating joint design piston rod does not bear additional load torque.

6. The top surface and front side of the sliding table are equipped with mounting screw holes for fixing fixtures, and the top surface of the sliding block is equipped with mounting positioning pin holes.

7. The side of the body with sensor installation groove, easy to install the sensor.
