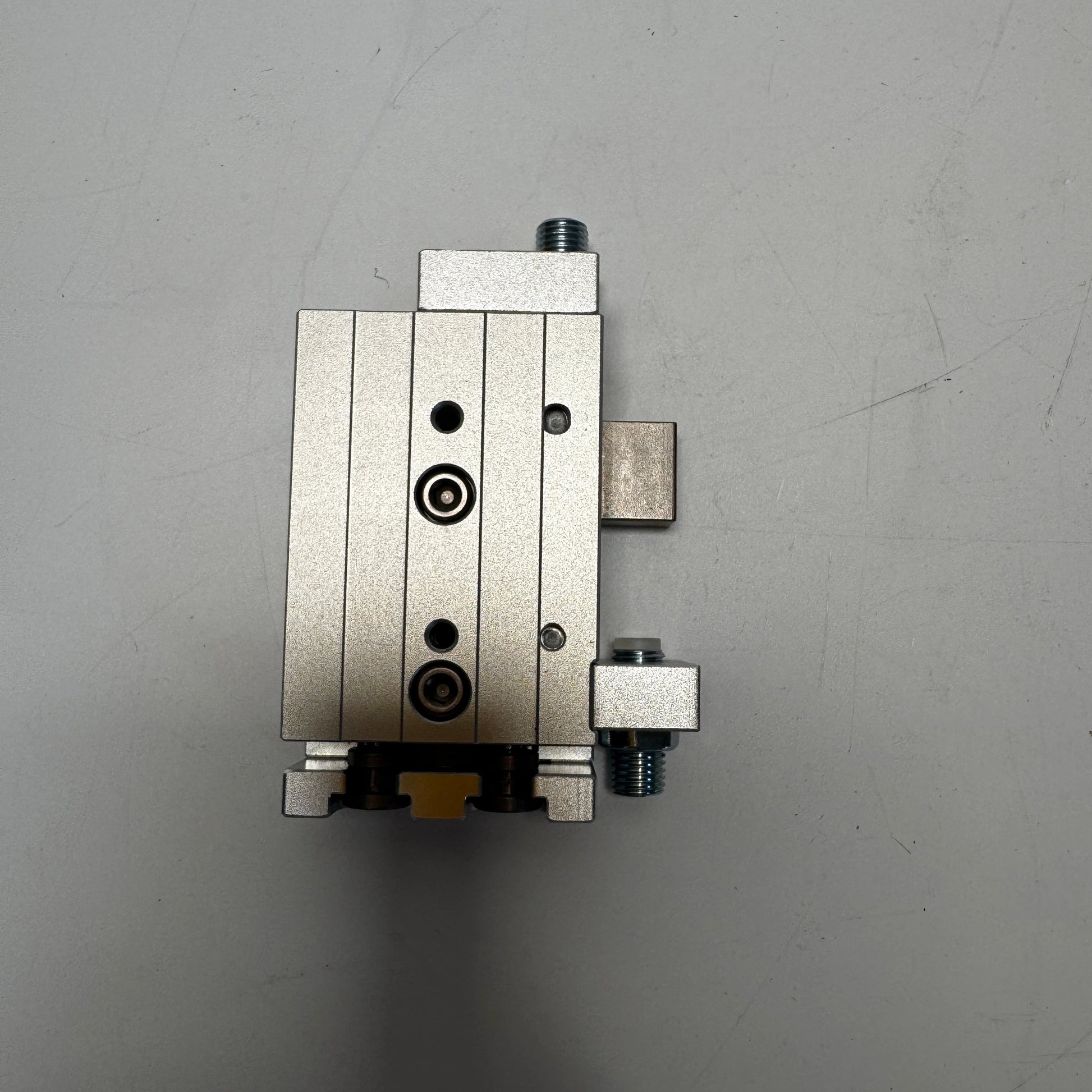

AirTAC HLQ8X20SA Dual-Axis Precision Slide Cylinder, 8 mm Bore x 20 mm Stroke

Specification: double axis precision sliding table cylinder (circulating ball) (standard type) Bore: 8mm Stroke: 20mm Magnet: with magnet External stop type: both ends of the stroke adjustment screw Tooth type: M5X0.8

Click to download Airtac product catalog

Product Features

1. Provide a variety of external stop combination type, convenient selection under different working conditions.

2. Double precision linear guide rail, to achieve high precision, high rigidity, both anti-rust, dust-proof performance.

3. The fixed cylinder can be installed from 3 directions, which is convenient for application.

4. Double piston rod design, can get double output.

5. Floating joint design piston rod does not bear additional load torque.

6. The top surface and front side of the sliding table are equipped with mounting screw holes for fixing fixtures, and the top surface of the sliding block is equipped with mounting positioning pin holes.

7. The side of the body with sensor installation groove, easy to install the sensor.
