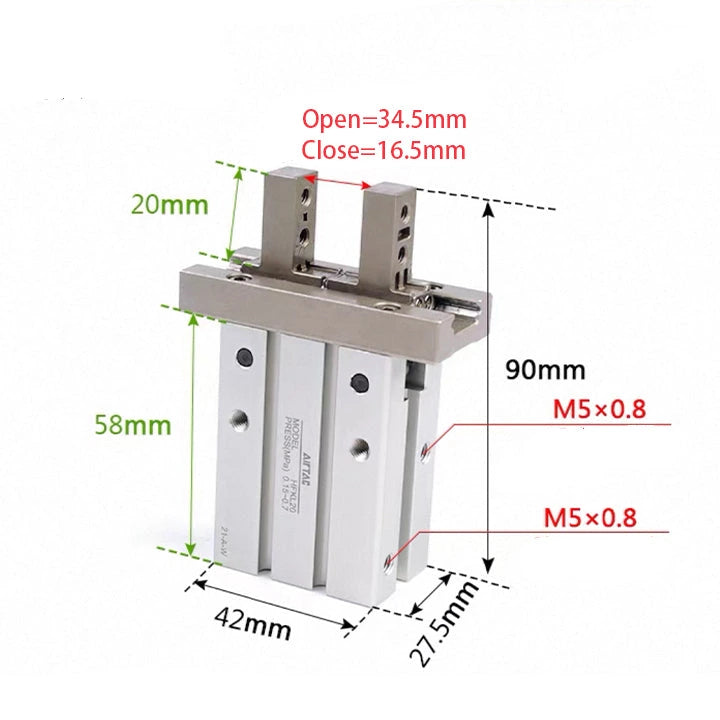

AirTAC HFKL20 Parallel Pneumatic Gripper, 20 mm Bore

Specifications: Parallel type pneumatic finger with guide rail (standard double-action roller type) Bore: 20mm Clamp optional type: standard type

Click to download Airtac product catalog

Product Features

1. The clamping stroke is long, and the size of the object can be more varied.

2. The use of integrated cross roller linear guide design, so that the pneumatic fingers with high strength, high precision, high load characteristics.

3. The bottom of the linear guide rail is attached with a positioning pin to prevent the guide rail from deviating from the body.

4. The body is equipped with a fixed reference center hole to improve the fixing accuracy and improve the consistency of repeated disassembly and positioning.

5. The side and bottom are attached with mounting holes, convenient for installation and use under different conditions.

6. The initial position of the clamping jaw can be customized according to the actual use requirements to meet the use requirements under different working conditions.
