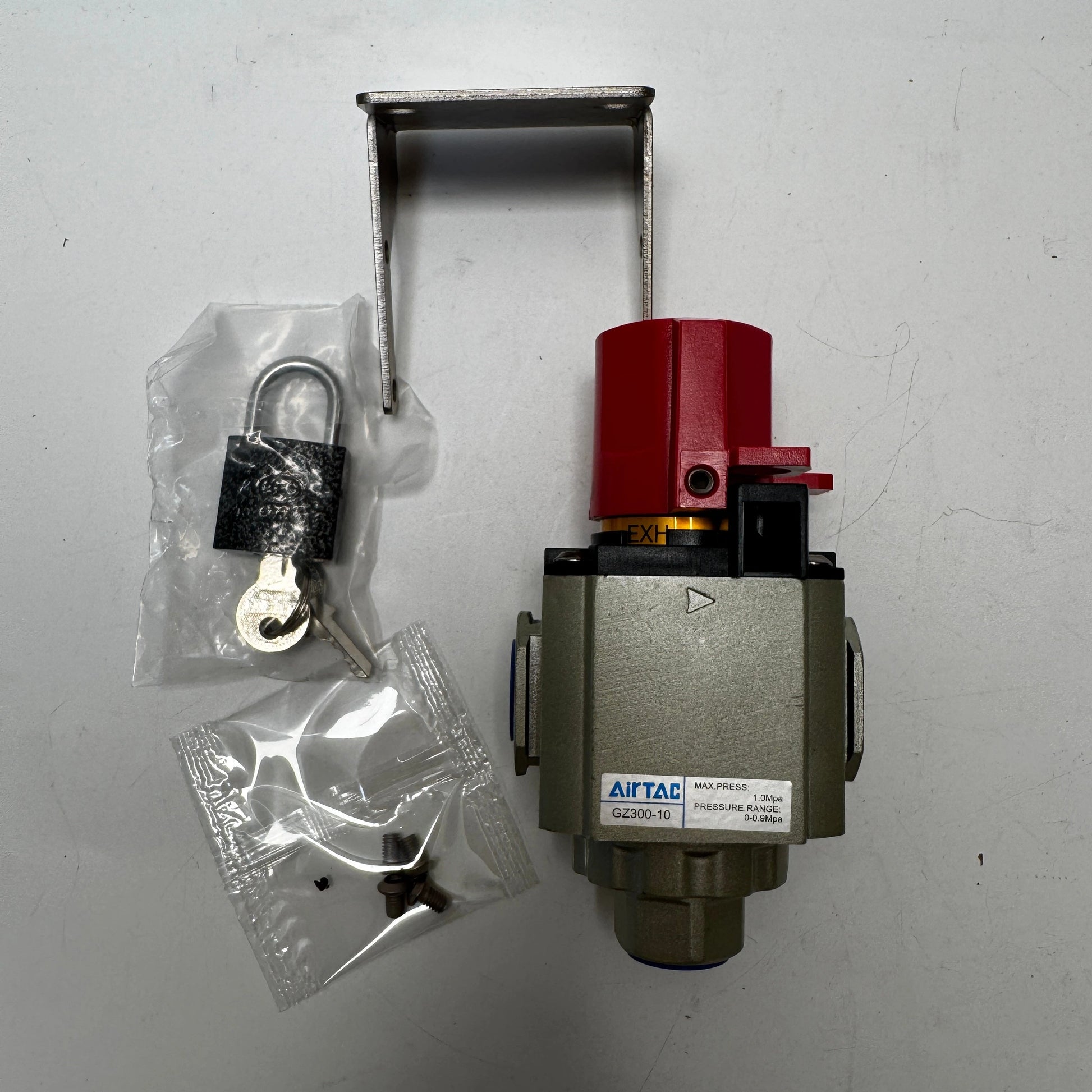

Airtac GZ: Air Relief Valve - GZ30010

Series: 300 series globe valve Nozzle caliber: 3/8" Bracket: attached bracket Tooth type: PT tooth

Specifications

1. Model: GZ30010

2. Working medium: air, nozzle diameter: PT3/8, exhaust port specification: PT3/8, actuation mode: manual control, position number: three ports and two positions

3. Use pressure range: 0~1.0MPa(0 ~ 145psi), guaranteed pressure resistance: 1.5MPa(215psi)

4. Use temperature range:-20~70 ℃, operating angle: 90 °

5. Applicable triple model: GC300-10,GAC300-10, connecting tooth type has G tooth and NPT tooth to choose from

Click to download Airtac product catalog

Product Features

1. Modular design, with bracket can be used in combination with G series/GA series triple parts;

2. The valve can be used as manual three-way valve;

3. The work instructions (EXH./SUP.) can be visually confirmed;

4. The valve in line with OSHA (the United States Bureau of Labor Safety and Health Standards) to develop the operator to install the standard: repair, maintenance of machinery, the application of residual pressure to exclude the residual pressure to close the gas source at the same time;

5. In this operation, the unintentional operation of a third party will cause the rear section of the pipeline to pressurize, the cylinder and other machinery to move suddenly, which will cause the operator to be injured. Therefore, it is stipulated that all locks must be added for this purpose to prevent unintentional operation by a third party from causing disasters to the operator.

The Airtac GZ Air Pretreatment Series is a functional alternative to the SMC VHS Series.
