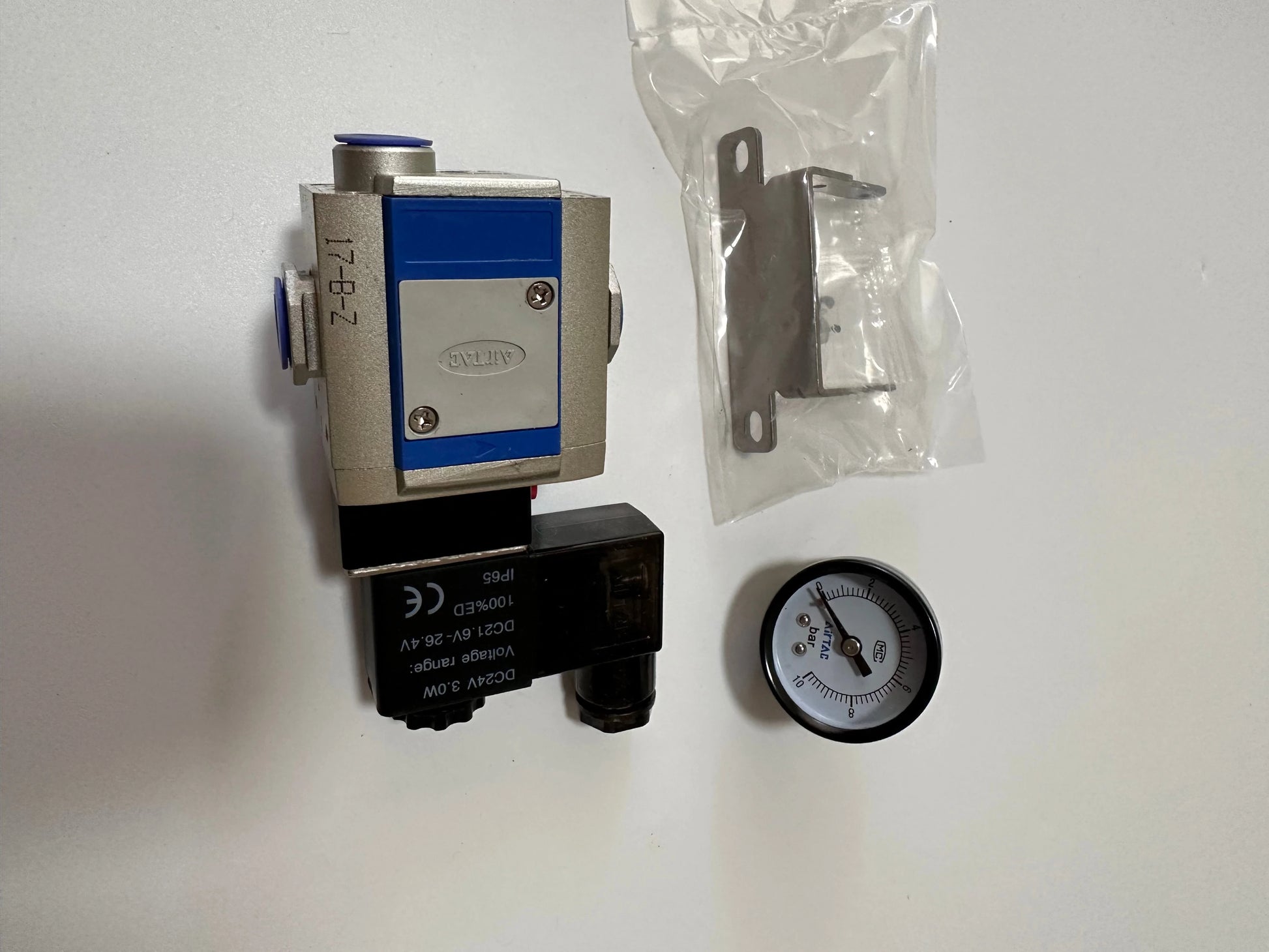

Airtac GV: Soft Start Air Valve - GV20008C3BG

Series: 200 Series Slow Start Valve Nozzle caliber: 1/4" Bracket: attached bracket Pressure gauge: schedule Type of pressure gauge: circular gauge Scale unit: bar Coil voltage: DC24V Power connection mode: DIN socket type Tooth type: G tooth

Specifications

1. Model: GV20008C3BG

2. Working medium: air, nozzle diameter: PT1/4, operating pressure range: 0.25~1.0MPa(35 ~ 145psi), guaranteed pressure resistance: 1.5MPa(215psi)

3. Operating temperature range:-20~70 ℃, actuation mode: electric control, exhaust port specification: PT1/4, connection mode: direct outlet type, terminal type

4. Standard voltage: AC220V, 110V, 24V(50\60Hz);DC12V, 24V, using voltage range:-15% ~ + 10%

5. Heat resistance grade: Class B, power consumption: AC:3.5VA;DC:2.5W, matching pressure gauge (optional):F: square pressure gauge; C: round pressure gauge

6. Applicable triple model: GC200-08,GAC200-08, connecting tooth type has G tooth and NPT tooth to choose from

Click to download Airtac product catalog

Product Features

1. Slow start valve is used to safely establish pressure in the pneumatic system and play a role of safety protection;

2. The intake air is connected to the input P of the slow start valve. If the coil is energized, the three-port two-position valve opens. At this time, a small amount of air passes through the throttle valve to output A, so that the pressure of the system is slowly established;

3. When the output pressure is equal to half of the input pressure, the slow start valve is fully opened, and the flow rate reaches its highest;

4. When the coil is powered off, the intake P is closed, and the air returns to the R port through the one-way valve to quickly drain away, and the system pressure drops to zero, which plays a safety protection role for the entire system.

The Airtac GV series air pre-treatment unit is an alternative to the SMC AV series.
