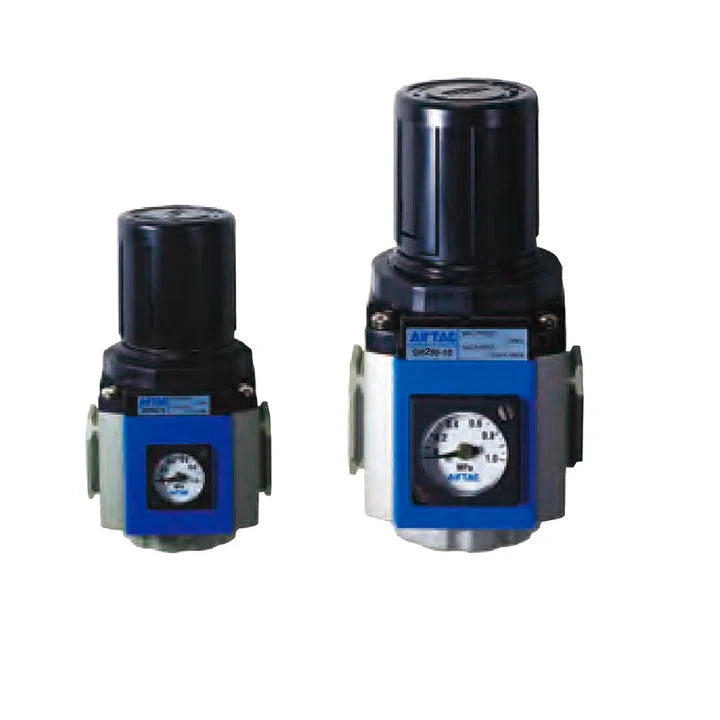

Airtac GR series: pressure regulating valve - GR40015JF2T

Series: G400 series pressure regulating valve Nozzle caliber: 1/2" Type: Standard Bracket: without bracket (standard configuration) Pressure gauge: schedule Type of pressure gauge: square gauge Scale unit: psi Tooth type: NPT tooth Reverse flow valve: without reverse flow valve

Specifications

1. Model: GR40015JF2T

2. Working medium: air, nozzle diameter: PT1/2, pressure regulating range: 0.05~0.9MPa(7 ~ 130psi)

3. Maximum operating pressure: 1.0MPa(145psi), guaranteed pressure resistance: 1.5MPa(215psi), operating temperature range:-20~70 ℃, weight: 720g g

4. Take over the tooth type has G teeth, NPT teeth to choose from

Internal structure: 1. Bonnet: POM/2.O-ring: NBR/3. Valve body: aluminum alloy/4. O-ring: NBR/6. Pressure regulating column: Brass (GR600),POM (other)/5. Main pressure diaphragm: SUS304 encapsulated/7. Retaining ring cap: Aluminum alloy (GR600),POM (other)/8. Main adjustment finale: 08A/9. Main pressure regulating hexagonal cap: 08A/10. Main pressure regulator: POM/11. Spring: SWC/12. Main pressure regulating seat: aluminum alloy (GR600),POM (other)/13. Feedback catheter: POM/14. O-ring: NBR/16. Spring: Stainless steel

Handle Cover Accessories :GR400 Pressure regulating cap ， pressure regulating valve diaphragm :GR400 Diaphragm

Click to download Airtac product catalog

Product Features

1. Use embedded square pressure gauge to save installation space (you can also choose to use external circular pressure gauge).

2. Press-in self-locking mechanism, which can prevent the setting pressure from being disturbed by the outside world;

3. The pressure adjustment mechanism adopts balanced design, the pressure adjustment is more stable, the drift is small, and the pressure characteristic is good;

4. In addition to panel installation, alternative fixed bracket installation;

5. In addition to the standard form, there are low pressure type to choose from (the highest adjustable pressure 0.4MPa).
