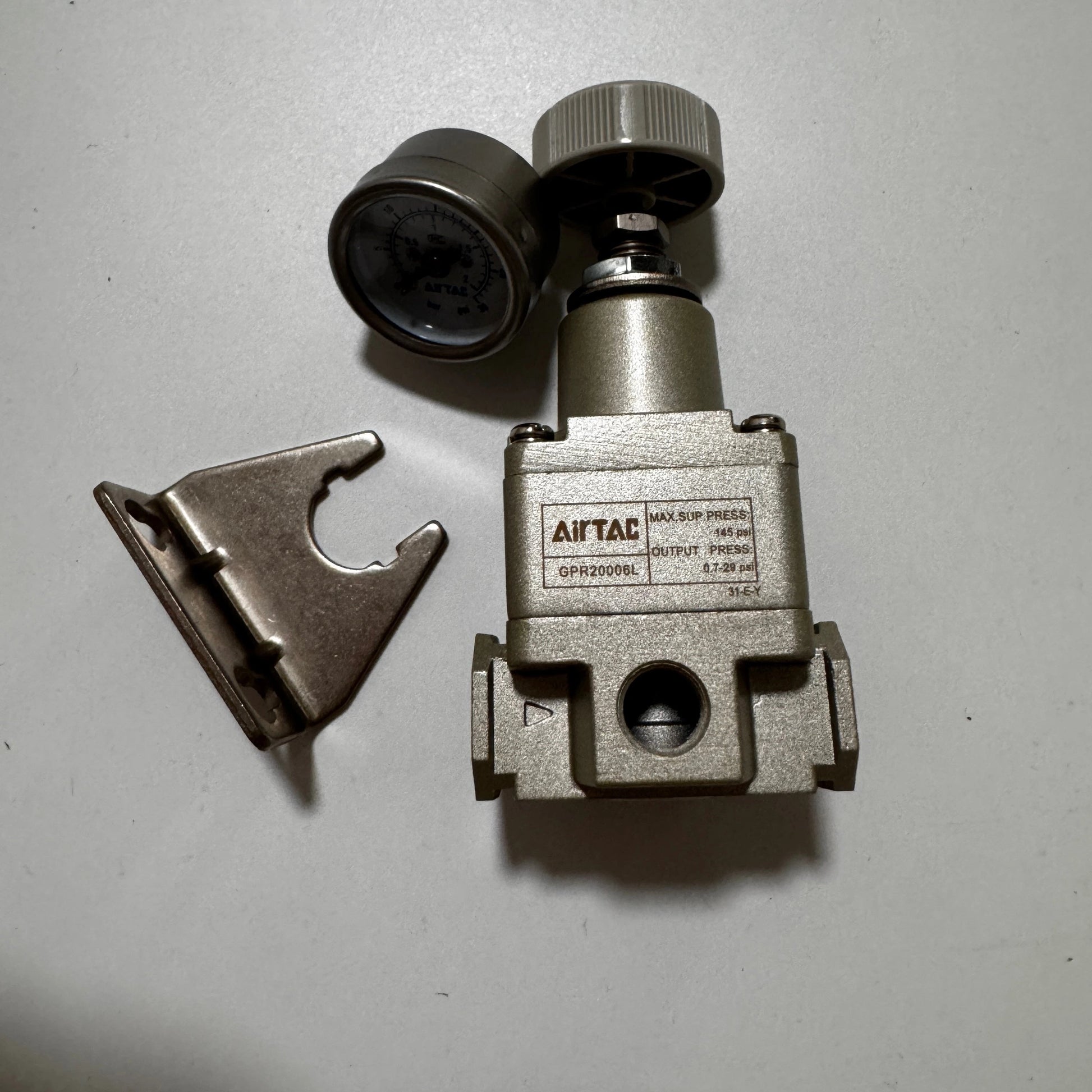

Airtac GPR20006L: Precision Air Regulator - GPR20006LT

Series: 200 series precision pressure regulating valve Nozzle caliber: 1/8" Set pressure range: 0.005~0.2MPa(0.7 ~ 29psi) Bracket: attached bracket Pressure gauge: pressure gauge attached Dental type: NPT teeth (psi/bar)

Specifications

1. Model: GPR20006LT

2. Working medium: air, nozzle diameter: PT1/8, maximum input pressure: 1.0MPa, working pressure: 0.005~0.2MPa(0.7 ~ 29psi)

3. Sensitivity: within 0.2 F.S., repeatability: within ± 0.5 F.S., air loss: ≤ 4L/min(ANR)

4. Use temperature range:-20~70 ℃ (not frozen), product weight: 144g, connecting tooth type has G tooth and NPT tooth to choose from

Internal structure: 1. pressure regulator body: aluminum alloy/2. Pilot body: plastic/3. Main pressure regulator seat: aluminum alloy/4. Bracket gasket: SPCC/5. Adjusting nut: fast cutting steel/6. Main pressure regulating button: plastic/7. Hexagon nut: fast cutting steel/8. Main adjusting pressure shaft: carbon steel/9. Hexagon nut: fast cutting steel/10. Spring: Spring steel/11. Pilot upper diaphragm: NBR/12. Main pressure regulating upper diaphragm: NBR/13. Main pressure diaphragm: NBR/14. Pressure regulating column: stainless steel + NBR/15. Bonnet: Fast cutting steel/16. Hard core on pilot diaphragm: aluminum alloy/17. Pilot lower diaphragm: NBR/18. Nozzle body: aluminum alloy

Pressure regulating valve knob handle :GPR200 Pressure regulating handle

Click to download Airtac product catalog

Product Features

1. High voltage regulation accuracy, fast response speed.

2. Good pressure and flow chart.

3. Easy installation. It can be installed independently through the bracket or directly with the existing filter combination unit.

4. High and medium pressure or low pressure type can be selected.

The Airtac GPR Air Prep Series is a functional alternative to the SMC IR Series.
