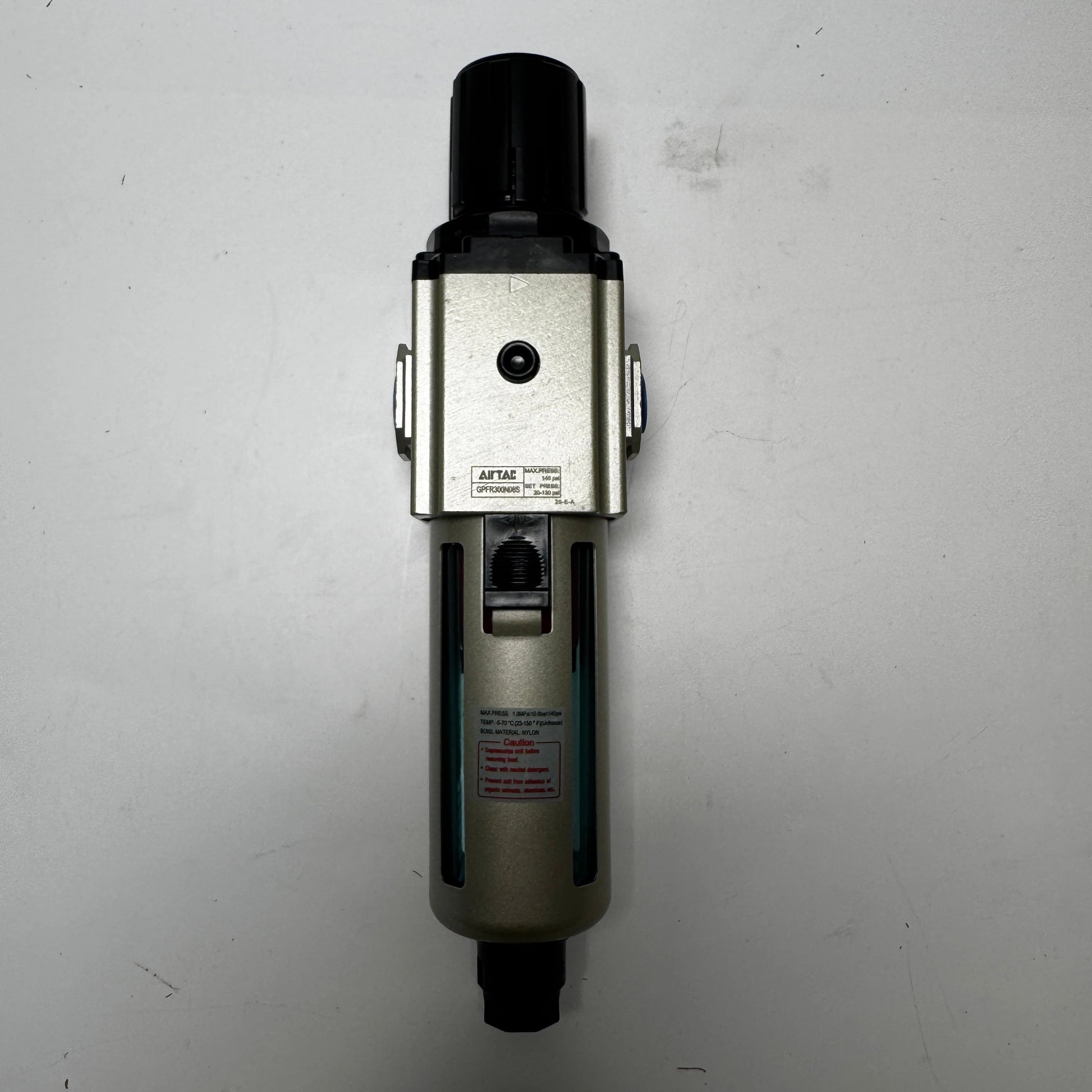

Airtac GPFR300N08: Precision Air Filter Regulator - GPFR300N08SJNDT

Series: GP300 series pressure regulating precision filter Cup body material: nylon cup Nozzle caliber: 1/4" Drainage mode: differential pressure + manual drainage Type: Standard Bracket: without bracket Pressure gauge: not attached Filtration accuracy: 0.01μm level Dental type: NPT teeth (psi/bar)

Specifications

1. Model: GPFR300N08SJNDT

2. Working medium: air, nozzle diameter: PT1/4, filter element accuracy: 0.3μm or 0.01 μm, pressure regulating range: 0.15~0.9MPa(20 ~ 130psi)

3. Maximum operating pressure: 1.0MPa(145psi), guaranteed pressure resistance: 1.5MPa(215psi), operating temperature range:-5~70 ℃ (not frozen)

4. Rated flow rate: 180L/min, water filter cup capacity: 60CC, weight: 500g, nozzle tooth type with G tooth and NPT tooth optional

5. Conditions: inlet pressure 0.7MPa, outlet pressure 0.5MPa. The rated flow varies with the inlet pressure. If the flow exceeds the rated flow, oil will flow to the secondary side. Please note.

Internal structure: 1. filter cup: PC, transparent nylon, aluminum alloy/2. Protective cover: SPCC/3. Precision filter element: polymer material/4. Gasket: NBR/5. Pressure regulating plug head: aluminum alloy plastic/6. Pressure regulating column: POM/7. Main pressure diaphragm: NBR/8. Retaining ring cap: POM/9. Main adjusting pressure shaft: fast cutting steel/10. Main pressure regulating hexagonal cap: fast cutting steel/11. Main pressure regulator: POM/12. Spring: SWPB/13. Main pressure regulator: POM/14. Pressure regulating precision filter body: aluminum alloy/15. Diverter: POM/16. Spring: SWPB/17. Pressure Gauge: Components/18. Level gauge inner cover: PC/19. Level gauge O-ring: NBR/20. Level gauge protective cover: SPCC

Filter cartridge :GPFR300-0.01 With red 0.01μm filter element GPFR300-0.3 With blue 0.3μm filter element

Click to download Airtac product catalog

Product Features

1. Use round square pressure gauge with clip and magnifying glass to save installation space.

2. Press-in self-locking mechanism to prevent abnormal movement of set pressure caused by external interference.

3. The pressure regulating mechanism adopts balanced design.

4. The unique flow guide structure makes the air flow through the rotation, effectively separates the liquid from the air, and reliably filters the solid particles.

5. The filter grade has 0.3 μm.0.01μm optional.

6. There are two types of drainage: semi-automatic drainage and automatic drainage.

7. The bowl body has three kinds of materials to choose from: PC. Nylon. Metal.

8. Optional bracket installation.
