AirTAC GPF30010M Oil Mist Air Filter
AirTAC GPF30010M Oil Mist Air Filter
Couldn't load pickup availability

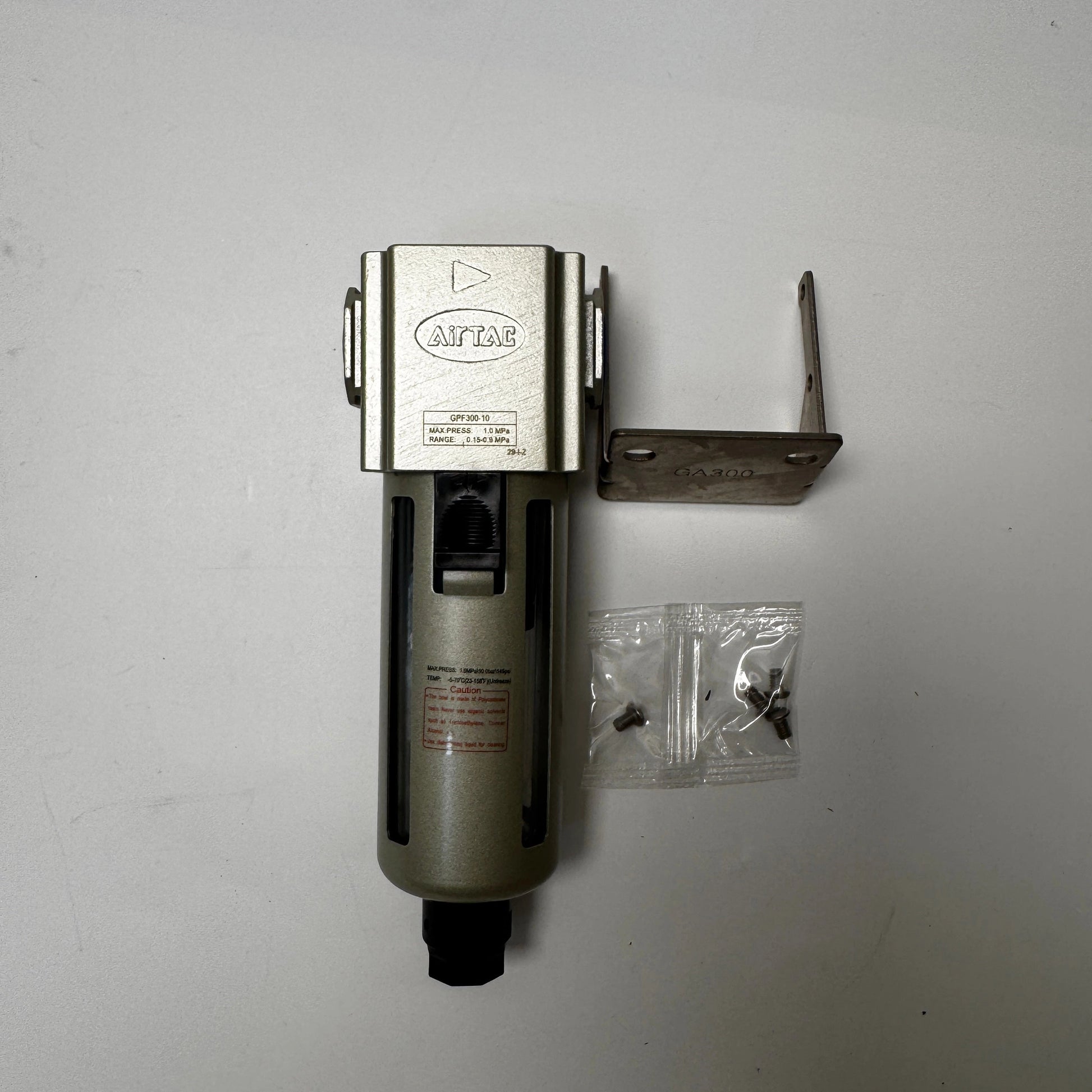

The AirTAC GPF30010M is a coalescing oil mist separator for a compressed-air line with PT 3/8 connections. Check the listed configuration and the catalog dimensions when selecting a replacement.
Product Features
- The coalescing element removes oil mist from compressed air.
- The drain bowl collects separated liquid and can be serviced when the assembly is depressurized.
- The body can be mounted independently or combined with compatible air-preparation units.
Technical Specifications
| Order code | GPF30010M |
|---|---|
| Working medium | Compressed air |
| Air ports | PT 3/8 |
| Filter element | 0.3 µm |
| Condensate bowl capacity | 54.5 mL |
| Condensate drain | Differential-pressure and manual drain |
| Operating pressure | 0.15–1.0 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | −5 to 70 °C, non-freezing |
| Mounting bracket | Included |
| Catalog collection efficiency | 99.9% |
| Catalog rated flow | 450 L/min at 0.7 MPa inlet / 0.5 MPa outlet |
Before You Order
Use the inlet and outlet markings to orient the unit. Check the drawing for the mounting pattern and leave access for adjustment or service.
Match the port thread to your existing fittings and confirm the operating range against your air supply and downstream requirements.
Use the specified rated flow and test pressures to size the separator. AirTAC notes that excessive flow can carry oil to the outlet.
