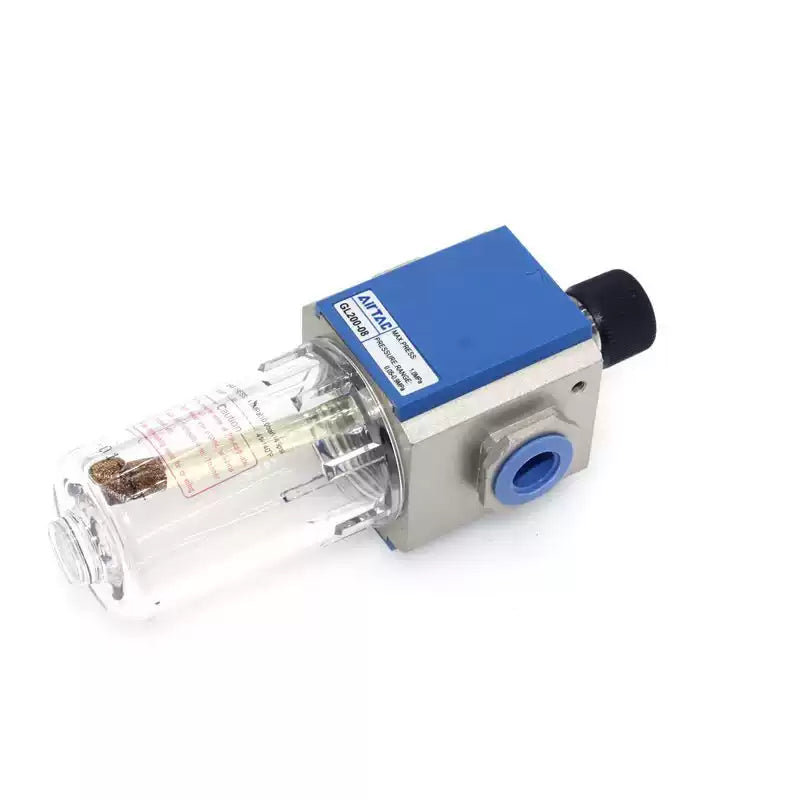

AirTAC GL20008 Pneumatic Air Lubricator
AirTAC GL20008 Pneumatic Air Lubricator
Couldn't load pickup availability
The AirTAC GL20008 is a compressed-air lubricator for a compressed-air line with PT 1/4 connections. Check the listed configuration and the catalog dimensions when selecting a replacement.
Product Features
- The metering ring adjusts oil delivery over one revolution.
- The drip nozzle forms oil mist at low airflow using the pressure drop at its outlet.
- The bowl stores the lubricant for the pneumatic line. The catalog shows flow direction and assembly dimensions.
Technical Specifications
| Order code | GL20008 |
|---|---|
| Working medium | Compressed air |
| Air ports | PT 1/4 |
| Operating pressure | 0.05–1.0 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | −5 to 70 °C, non-freezing |
| Oil bowl capacity | 25 mL |
| Recommended oil | ISO VG32 or equivalent |
| Mounting bracket | Included |
Before You Order
Use the inlet and outlet markings to orient the unit. Check the drawing for the mounting pattern and leave access for adjustment or service.
Match the port thread to your existing fittings and confirm the operating range against your air supply and downstream requirements.
Confirm that the downstream equipment requires oil mist. Set the drip rate while observing delivery at the intended operating flow.
