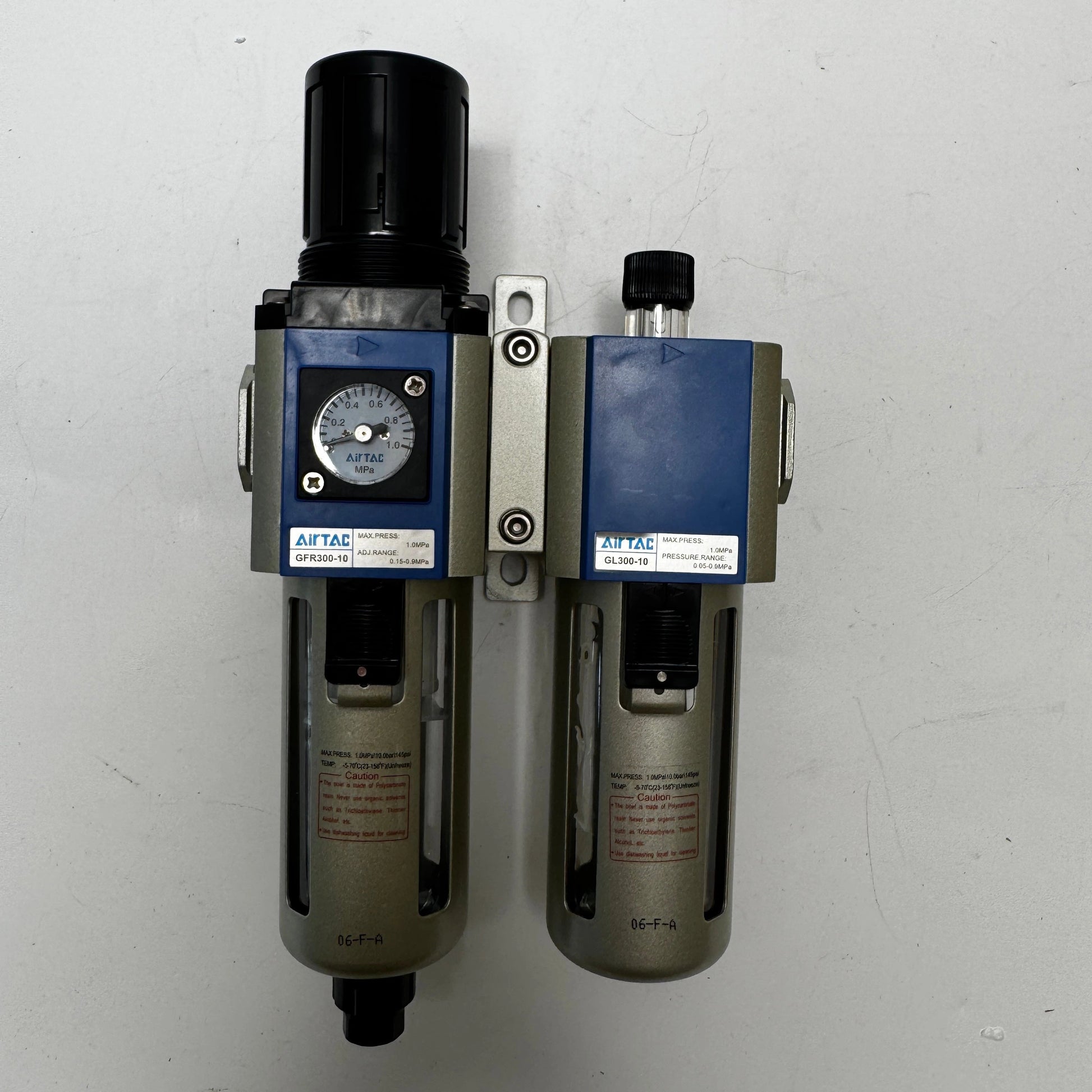

Airtac GFC Series Duplex-Air Treatment Element - GFC30010F1

Series: G300 series conditioning combination Nozzle caliber: 3/8" Drainage mode: differential pressure drainage type Type: Standard Pressure gauge: schedule Type of pressure gauge: square gauge Scale unit: MPa Filtration accuracy: 40μm level Tooth type: PT tooth Reverse flow valve: without reverse flow valve

Specifications

1. Model: GFC30010F1

2. Working medium: air, nozzle diameter: PT3/8, filter element accuracy: 40μm or 5μm, pressure regulating range: 0.15~0.9MPa(20 ~ 130psi)

3. Maximum operating pressure: 1.0MPa(145psi), guaranteed pressure resistance: 1.5MPa(215psi), operating temperature range:-5~70 ℃ (not frozen)

4. Filter cup capacity: 40CC, oil cup capacity: 75CC, recommended lubricating oil: ISO VG32 or equivalent oil, weight: 980g

5. Components: pressure regulating filter: GFR300-10, oil feeder: GL300-10, connecting tube type G tooth and NPT tooth are optional

Internal structure: 1.G series pressure regulating filter/2. Connecting bracket/3.G series oil feeder

Drainer :AD300G06 Automatic drainer GFC300 Differential pressure drain GFC300 Manual Drainer ， Filter water cup oil cup :GFC300 Water cup with drain GFC300 Water cup without drain GFC300 Oil cup

Click to download Airtac product catalog

Product Features

1. Fast and reliable fixed connection, easy to install and use.

2. Stable pressure regulation and high repeatability.

3. High efficiency moisture and solid particle removal function.

4. There are manual, differential pressure and automatic drainage and other three forms of drainage optional.
