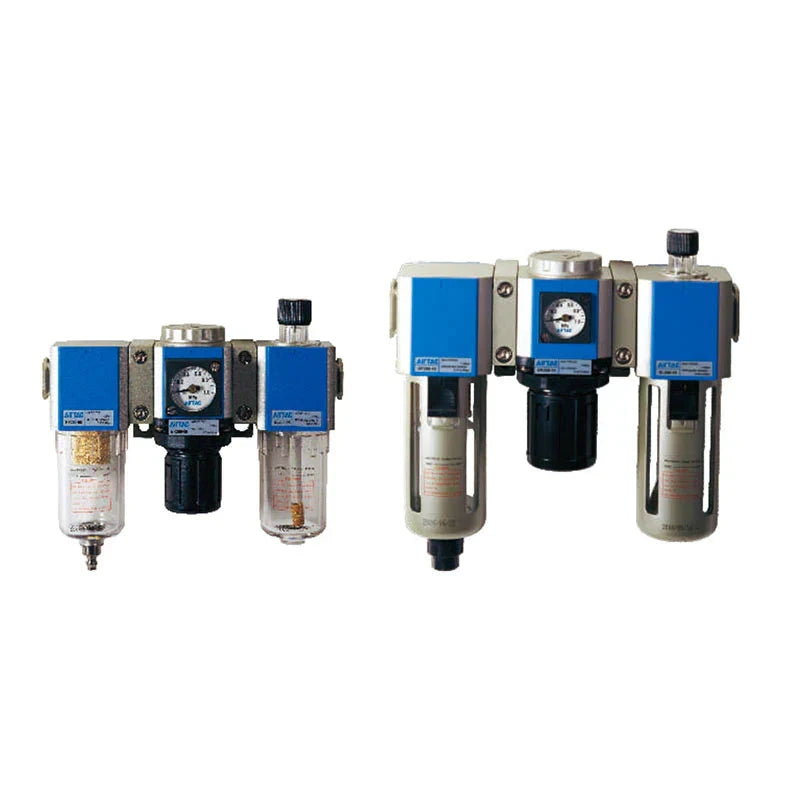

Airtac GFC Series Duplex-Air Treatment Element - GFC60025LF2W

Series: G600 series conditioning combination Nozzle caliber: 1" Drainage mode: differential pressure drainage type Type: low voltage type Pressure gauge: schedule Type of pressure gauge: square gauge Scale unit: psi Filtration accuracy: 5μm level Tooth type: PT tooth Reverse flow valve: without reverse flow valve

Specifications

1. Model: GFC60025LF2W

2. Working medium: air, nozzle diameter: PT1, filter element accuracy: 40μm or 5μm, pressure regulating range: 0.15~0.4MPa(20 ~ 58psi)

3. Maximum operating pressure: 1.0MPa(145psi), guaranteed pressure resistance: 1.5MPa(215psi), operating temperature range:-5~70 ℃ (not frozen)

4. Water filter cup capacity: 230CC, oil supply cup capacity: 380CC, recommended lubricating oil: ISO VG32 or equivalent oil, weight: 4320g

5. Components: pressure regulating filter: GFR600-25, oil feeder: GL600-25, connecting tube type G tooth and NPT tooth are optional

Internal structure: 1.G series pressure regulating filter/2. Connecting bracket/3.G series oil feeder

Drainer :AD300G08 Automatic drainer GFC600 Differential pressure drain GFC600 Manual Drainer ， Filter water cup oil cup :GFC600 Water cup with drain GFC600 Water cup without drain GFC600 Oil cup

Click to download Airtac product catalog

Product Features

1. Fast and reliable fixed connection, easy to install and use.

2. Stable pressure regulation and high repeatability.

3. High efficiency moisture and solid particle removal function.

4. There are manual, differential pressure and automatic drainage and other three forms of drainage optional.
