AirTAC GF30008 Compressed Air Filter
AirTAC GF30008 Compressed Air Filter
Couldn't load pickup availability

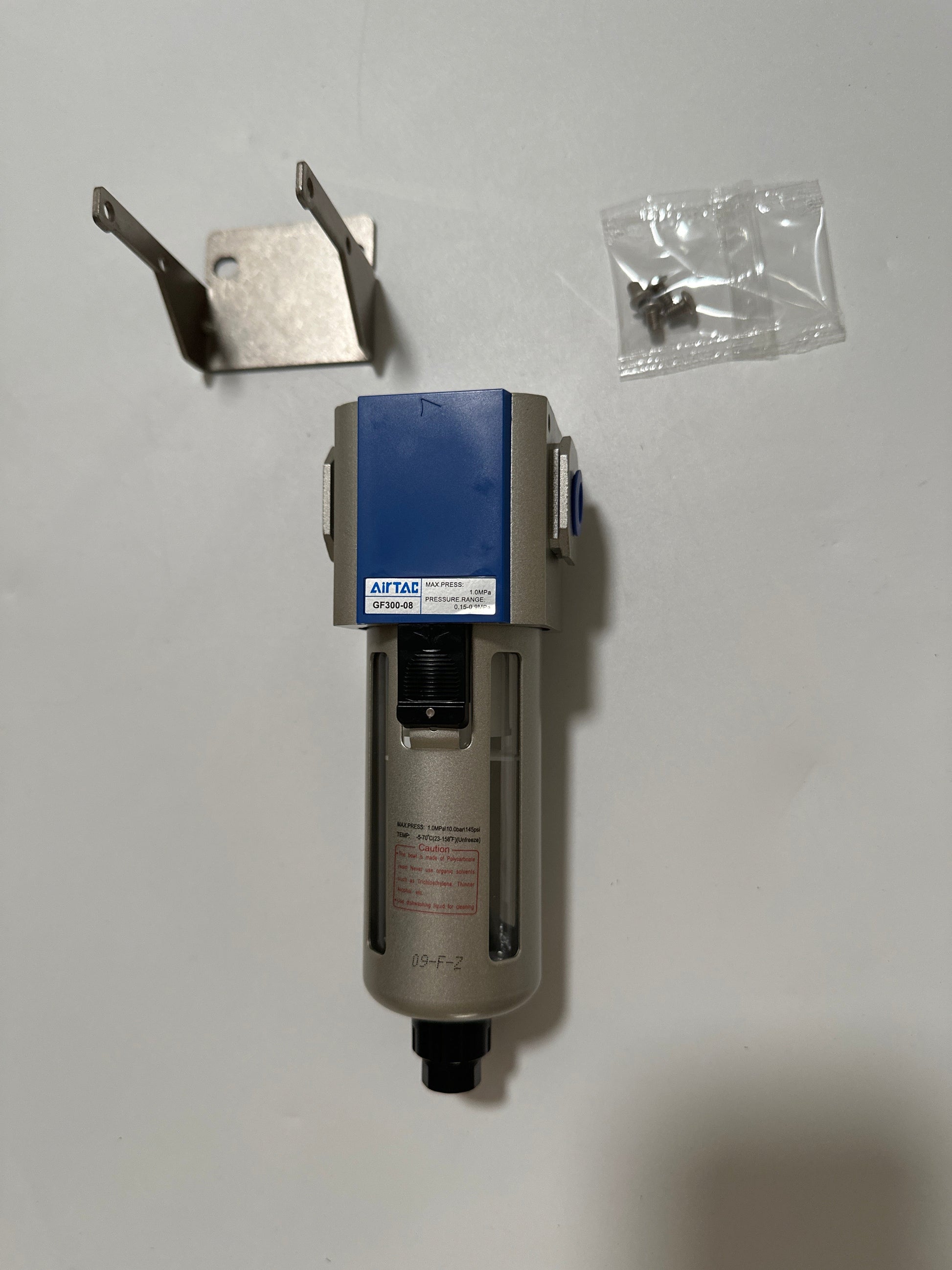

The AirTAC GF30008 is a compressed-air filter for a compressed-air line with PT 1/4 connections. Check the listed configuration and the catalog dimensions when selecting a replacement.
Product Features
- The inlet guide swirls incoming air to help separate condensate.
- The filter element captures particles and the bowl collects separated moisture.
- Fixed-bracket mounting is available. Leave clearance below the bowl for maintenance.
Technical Specifications
| Order code | GF30008 |
|---|---|
| Working medium | Compressed air |
| Air ports | PT 1/4 |
| Filter element | 40 µm |
| Condensate bowl capacity | 40 mL |
| Condensate drain | Differential-pressure drain |
| Operating pressure | 0.15–1.0 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | −5 to 70 °C, non-freezing |
| Mounting bracket | Included |
Before You Order
Use the inlet and outlet markings to orient the unit. Check the drawing for the mounting pattern and leave access for adjustment or service.
Match the port thread to your existing fittings and confirm the operating range against your air supply and downstream requirements.
Check the minimum pressure for the selected drain, and compare the catalog flow curve with the airflow required by the downstream equipment.
