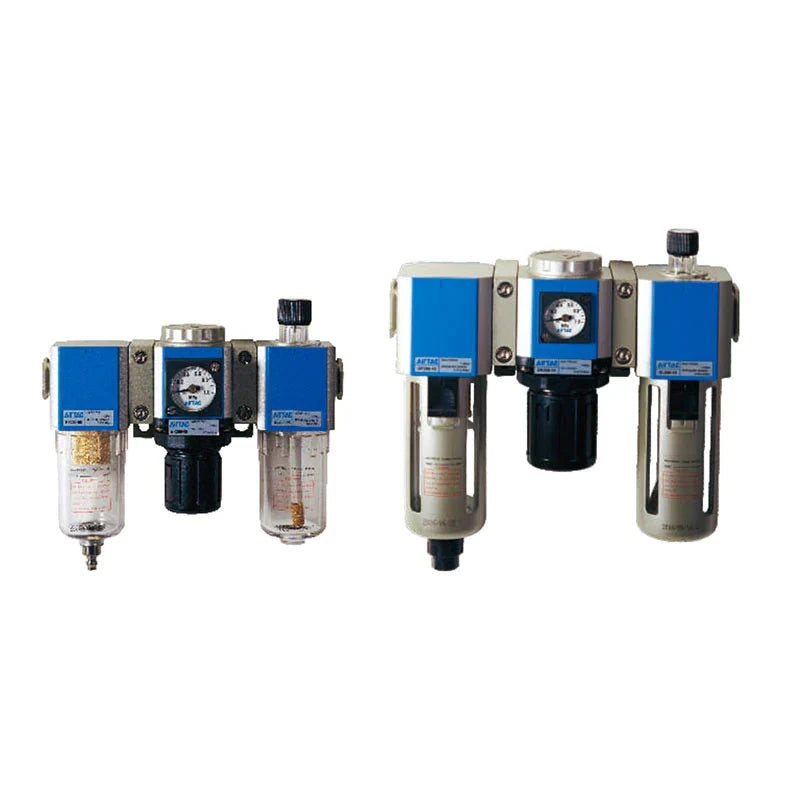

Airtac GC Series Triple-Gas Treatment Element - GC20008F1TK

Series: G200 series conditioning combination Nozzle caliber: 1/4" Drainage mode: differential pressure drainage type Type: Standard Pressure gauge: schedule Type of pressure gauge: square gauge Scale unit: MPa Filtration accuracy: 40μm level Tooth type: NPT tooth Reverse flow valve: with reverse flow valve

Specifications

1. Model: GC20008F1TK

2. Working medium: air, nozzle diameter: PT1/4, filter element accuracy: 40μm or 5μm, pressure regulating range: 0.15~0.9MPa(20 ~ 130psi)

3. Maximum operating pressure: 1.0MPa(145psi), guaranteed pressure resistance: 1.5MPa(215psi), operating temperature range:-5~70 ℃ (not frozen)

4. Filter cup capacity: 10CC, oil cup capacity: 25CC, recommended lubricating oil: ISO VG32 or equivalent oil, weight: 580g

5. Components: filter: GF200-08, pressure regulating valve: GR200-08, oil feeder: GL200-08, connecting tube type with G tooth and NPT tooth optional

Internal structure: 1.G series filter/2. Connecting bracket/3.G series pressure regulating valve/4.G series oil feeder

Filter water cup oil cup :GC200 Water cup with drain GC200 Water cup without drain GC200 Oil cup

Click to download Airtac product catalog

Product Features

1. The oil dripping structure adopts the form of gap seal, and the oil supply adjustment is more stable and reliable.

2. The oil supply adjusting ring can only rotate for one week, and the oil supply size is basically distributed linearly. The oil supply size can be roughly calculated according to the position of the scale ring.

3. Don't stop gas and refuel.

4. Special drip nozzle structure, so that the drop of oil outlet to produce negative pressure, low fogging flow.

5. Fast and reliable fixed connection, easy to install and use.

6. Stable pressure regulation and high repeatability.

7. High efficiency moisture and solid particle removal function.

8. There are manual, differential pressure and automatic drainage and other three types of drainage options.
