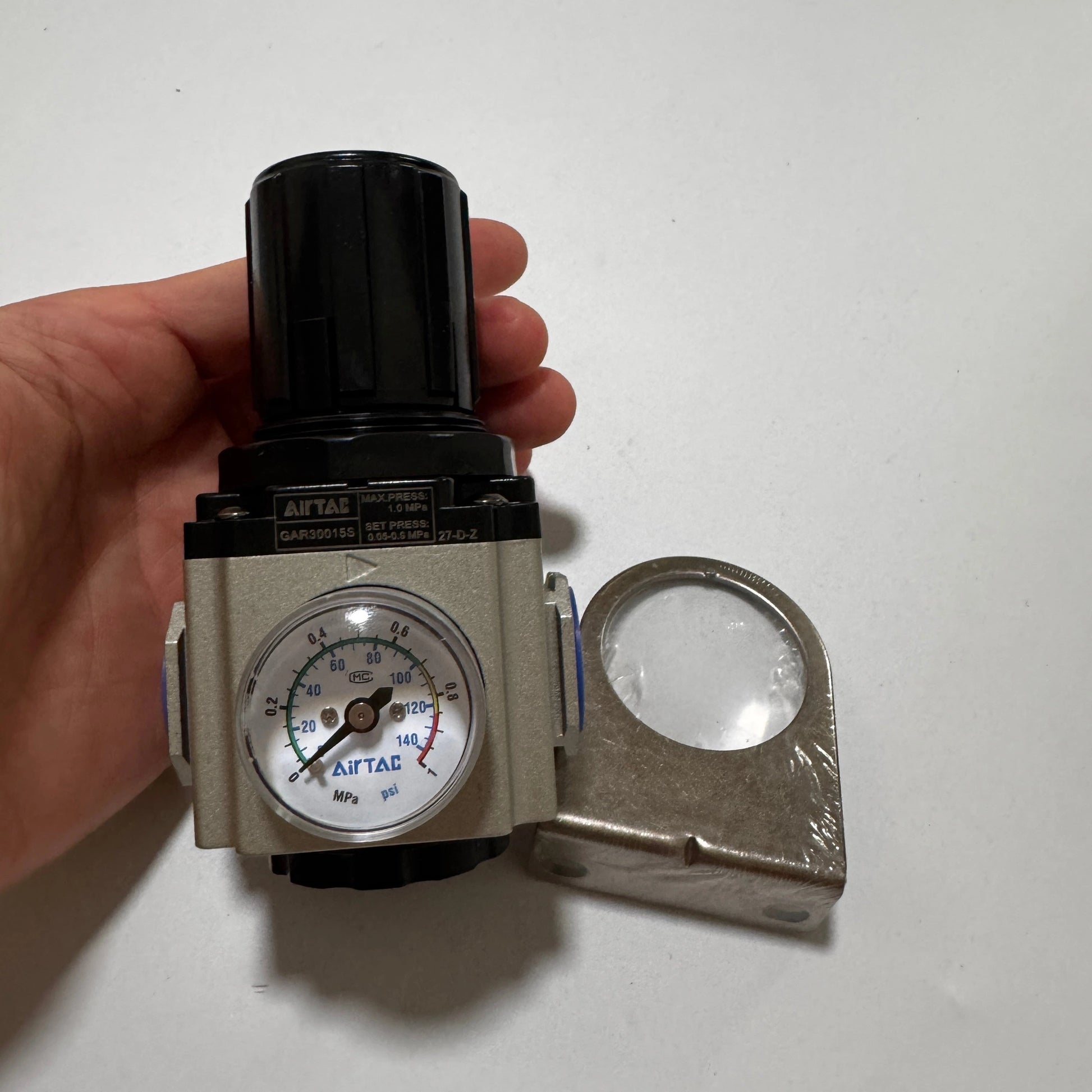

Airtac GAR300: Air Pressure Regulator - GAR30015S

Series: GA300 series pressure regulating valve Nozzle caliber: 1/2" Type: Standard Bracket: attached bracket Pressure gauge: round gauge snap type Dental type: PT tooth (MPa/psi) Reverse flow valve: without reverse flow valve

Specifications

1. Model: GAR30015S

2. Working medium: air, nozzle diameter: PT1/2, pressure regulating range: 0.05~0.9MPa(7 ~ 130psi)

3. Maximum operating pressure: 1.0MPa(145psi), guaranteed pressure resistance: 1.5MPa(215psi), operating temperature range:-20~70 ℃

4. Weight: 300g, there are G teeth and NPT teeth to choose from.

Internal structure: 1. Bonnet: aluminum alloy (600),POM (other)/2.O-ring: NBR/3. Pressure regulating valve body: aluminum alloy/4. O-ring: NBR/6. Pressure regulating column: Brass (600),POM (other)/5. Main pressure diaphragm: NBR/7. Retaining ring cap: Aluminum alloy (600),POM (other)/8. Main adjusting pressure shaft: fast cutting steel/9. Main pressure regulating hexagonal cap: fast cutting steel/10. Main pressure regulator: POM/11. Spring: SWPB/12. Main pressure regulating seat: aluminum alloy (600),POM (other)/13. Feedback catheter: POM/14. Pressure regulating plug head: aluminum alloy plastic/15. Bottom cover: POM/16. Spring: Stainless steel

Handle Cover Accessories :GAR300 Pressure regulating cap ， pressure regulating valve diaphragm :GAR300 Diaphragm

Click to download Airtac product catalog

Product Features

1. Use round square pressure gauge with clip and magnifying glass to save installation space.

2. Press-in self-locking mechanism to prevent abnormal movement of set pressure caused by external interference.

3. The pressure regulating mechanism adopts balanced design.

4. In addition to panel installation, you can also choose bracket installation.

The Airtac GAR200-600 air preparation series is a functional alternative to the SMC AR20-40 series.
