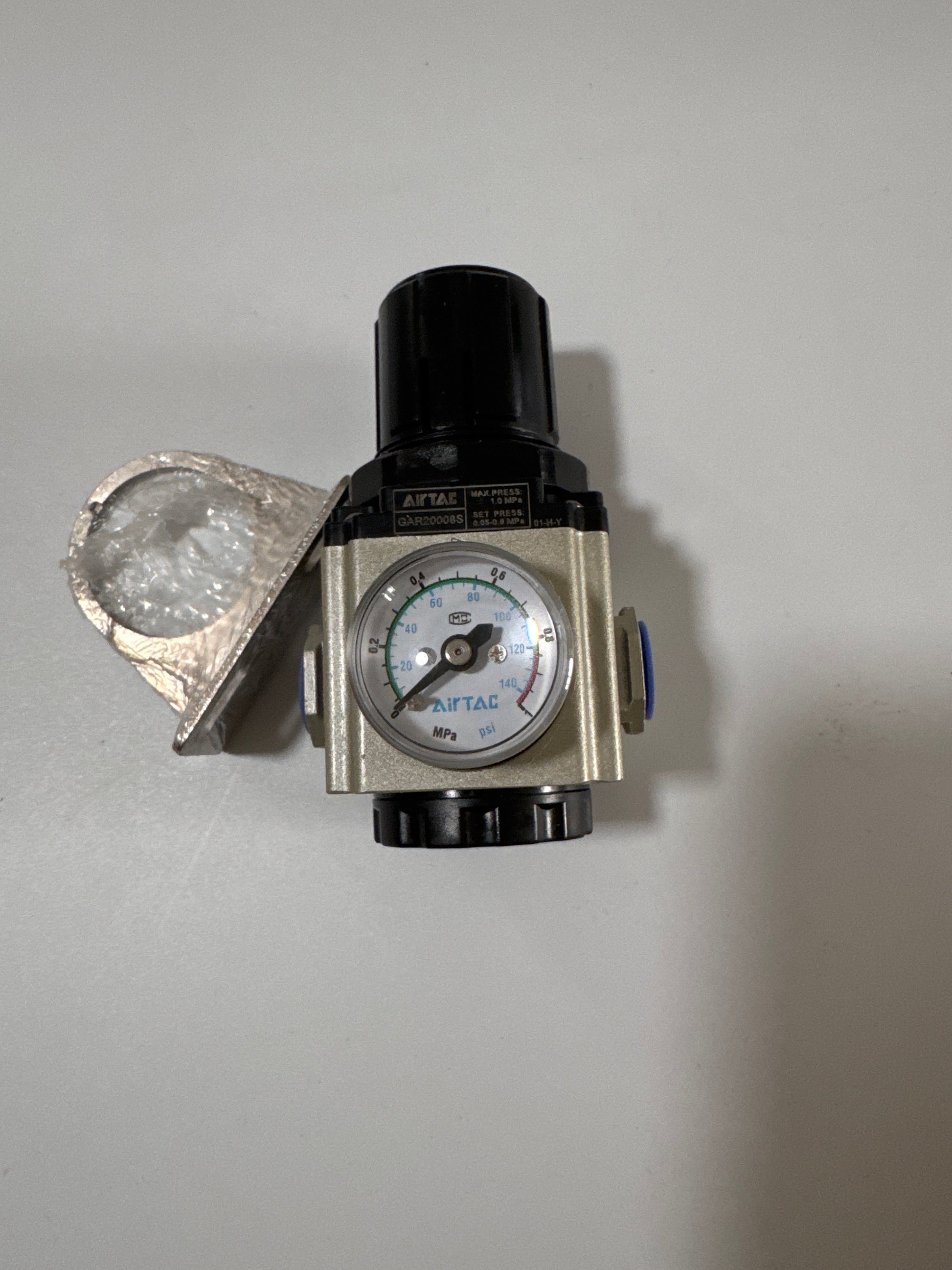

AirTAC GAR20008S Air Pressure Regulator
AirTAC GAR20008S Air Pressure Regulator
Couldn't load pickup availability
The AirTAC GAR20008S is a air pressure regulator with PT 1/4 connections. Use it to set the downstream pressure in a pneumatic line. The table identifies the outlet adjustment range, gauge and mounting configuration.
Product Features
- A balanced regulator mechanism controls downstream pressure and reduces setting drift.
- Press the adjustment knob down to lock the pressure setting after adjustment.
- The catalog shows panel installation and an optional fixed-bracket arrangement.
Technical Specifications
| Order code | GAR20008S |
|---|---|
| Body series | GAR200 |
| Air ports | PT 1/4 |
| Working medium | Compressed air |
| Proof pressure | 1.5 MPa |
| Maximum inlet pressure | 1.0 MPa |
| Outlet pressure adjustment | 0.05–0.9 MPa |
| Regulator version | Standard |
| Ambient temperature | −20 to 70 °C |
| Pressure gauge | Snap-in round gauge (MPa / psi) |
| Mounting bracket | Included |
| Reverse-flow valve | Not included |
Before You Order
Follow the flow direction shown on the body and in the catalog. Check the outline drawing for fitting clearance, access to the controls and space for service.
Match the exact PT 1/4 connection to your existing fittings. For a replacement, compare the mounting pattern and relevant options before ordering.
