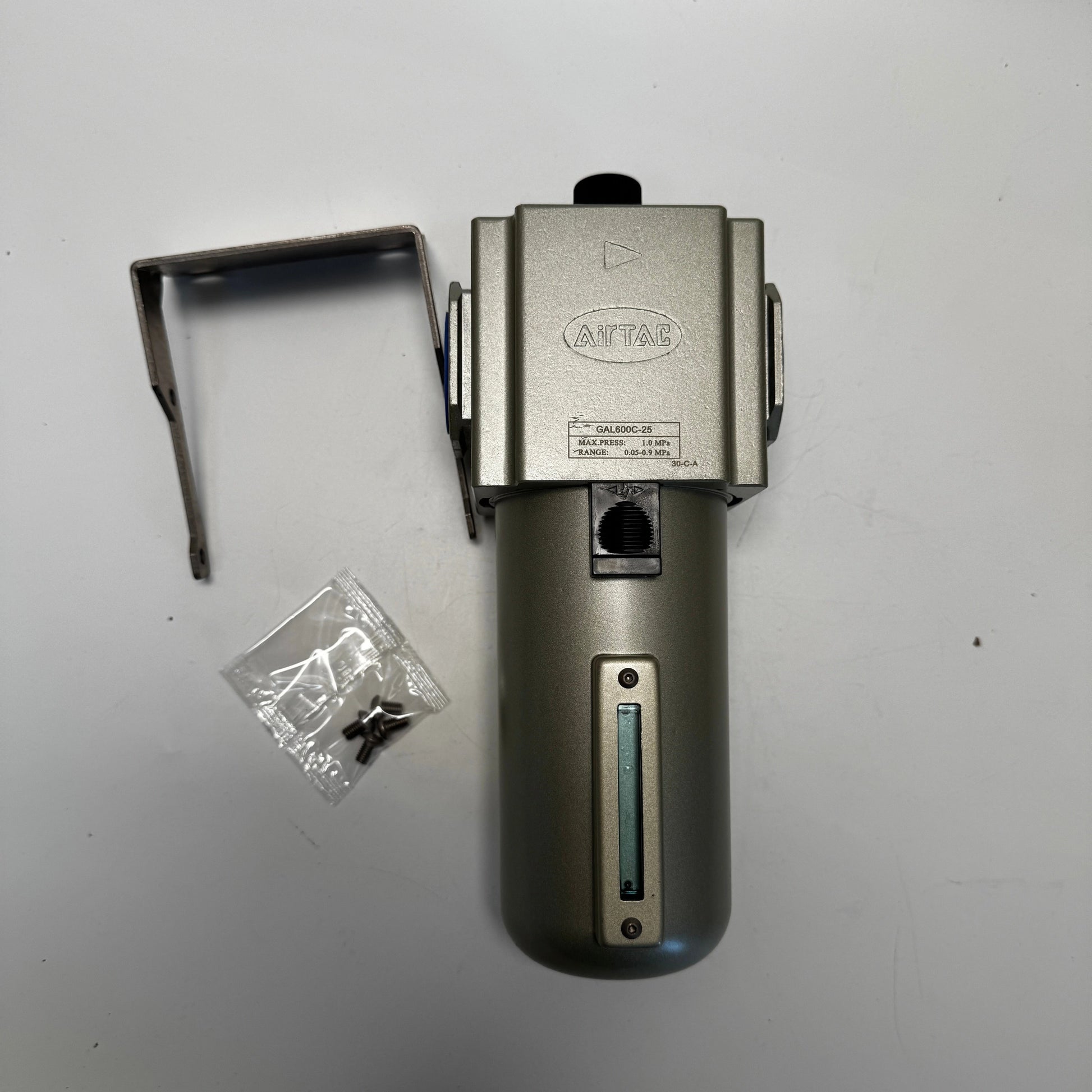

AirTAC GAL600C25 Air Lubricator
AirTAC GAL600C25 Air Lubricator
Couldn't load pickup availability
The AirTAC GAL600C25 is a compressed-air lubricator with PT 1 connections. It meters oil into the air stream for downstream equipment that specifies lubricated air.
Product Features
- The metering ring adjusts oil delivery over one revolution. Its scale helps reproduce a setting.
- The drip nozzle creates a pressure drop at the oil outlet to form an oil mist at low flow.
- The bowl provides a dedicated lubricant reservoir. Its capacity is listed below for this body size.
Technical Specifications
| Order code | GAL600C25 |
|---|---|
| Body series | GAL600 |
| Air ports | PT 1 |
| Working medium | Compressed air |
| Proof pressure | 1.5 MPa |
| Operating pressure | 0.05–0.9 MPa |
| Ambient temperature | −5 to 70 °C, non-freezing |
| Recommended lubricant | ISO VG32 or equivalent |
| Oil bowl capacity | 410 mL |
| Bowl material | Metal |
| Mounting bracket | Included |
Before You Order
Follow the flow direction shown on the body and in the catalog. Check the outline drawing for fitting clearance, access to the controls and space for service.
Match the exact PT 1 connection to your existing fittings. For a replacement, compare the mounting pattern and relevant options before ordering.
Confirm the downstream equipment requires oil mist, and use the recommended viscosity grade. Set the drip rate while observing delivery at the intended airflow.
